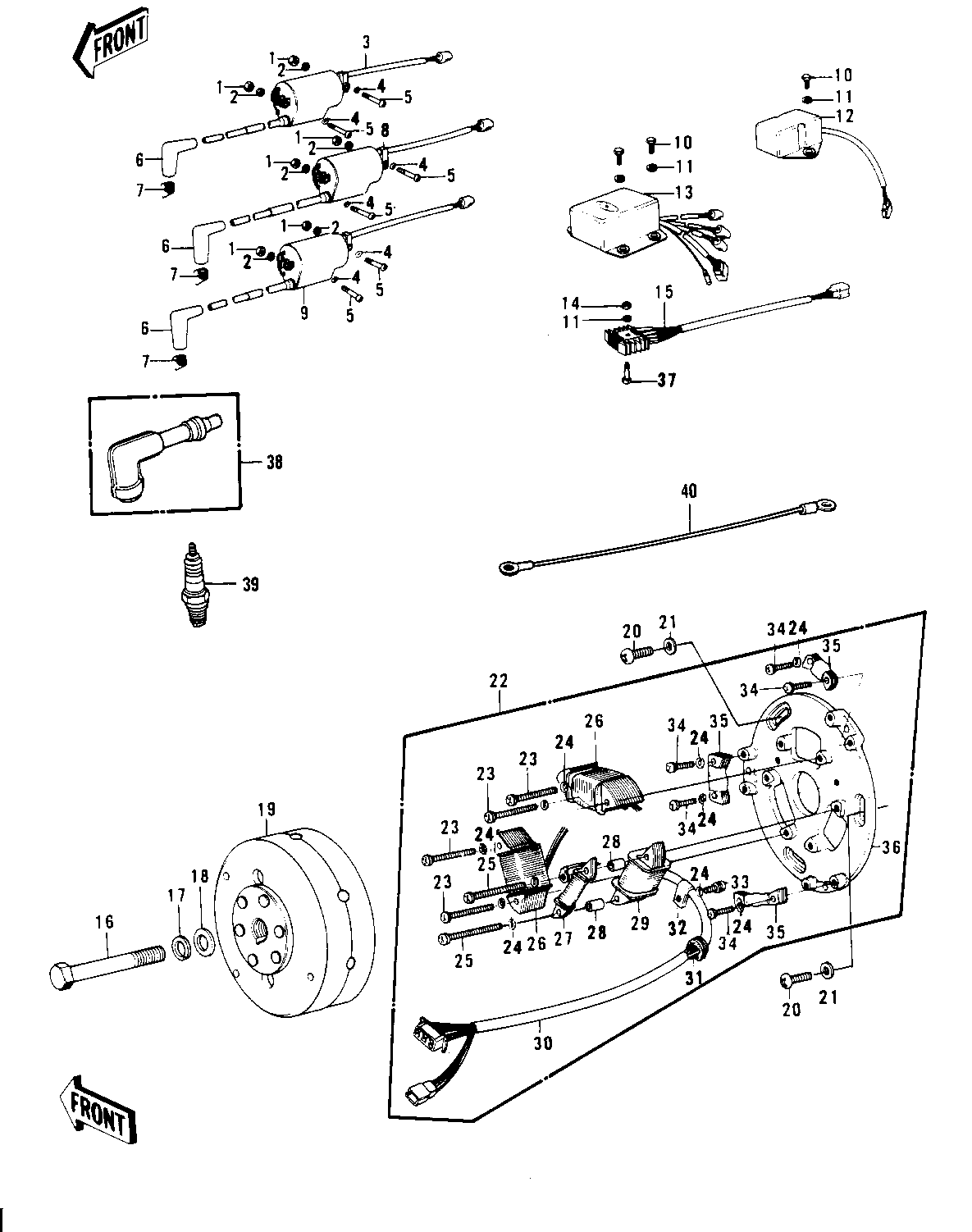

1977 KH400-A4 - IGNITION/GENERATOR/REGULATOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT,5MM 1 311B0500
WASHER SPRING 5MM 2 461F0500
COIL,IGNITION,R.H 3 21121-080 GREEN LEAD
WASHER PLAIN 5MM 4 411B0500
SCREW PAN HEAD 5X20 5 220B0520
CAP SPARK PLUG 6 21130-009
SPRING-SPARK PLUG CAP 7 92101-001
COIL,IGNITION,CENTER 8 21121-079 BLUE LEAD
COIL,IGNITION,L.H 9 21121-078 ORANGE LEAD
BOLT-UPSET,6X16 10 112G0616
WASHER SPRING 6MM 11 461F0600
REGULATOR 12 21072-009
IGNITION UNIT 13 21119-024
NUT 6MM 14 311B0600
RECTIFIER 15 21061-022
BOLT,10X45 16 92001-1182
BOLT,10X45 16 92001-1182
WASHER SPRING 8MM 17 461F0800
WASHER 8.5X23.5X4.5 18 92022-218
FLYWHEEL 19 21050-022
UNAVAILABLE IN PRICE BOOK 20 214B0516A
WASHER PLAIN 5MM 21 410B0500
STATOR ASSY 22 21003-032
SCREW-PAN HEAD,4X35 23 220E0435A
WASHER SPRING 4MM 24 461F0400
SCREW,PAN HEAD,4X38 25 21022-021
COIL,LIGHTING 26 21047-032
COIL,EXCITE 27 21047-029
COLLAR 28 21033-003
COIL,CHARGE 29 21047-028
WIRING HARNESS,MAGNT 30 21029-035
GROMMET WIRING HARN 31 21017-002
CLAMP,WIRING HARNESS 32 21037-006
SCREW PAN HEAD 4X8 33 220B0408
SCREW,PAN HEAD,4X18 34 21022-022
COIL,PULSER 35 21047-030
BASE,MAGNETO 36 21048-016
BOLT-UPSET,6X40 37 112G0640
CAP,SPARK PLUG 38 21160-005 USE FOR CANADIAN MARKET
SPARK PLUG B8HS 39 B8HS
SPARK PLUG B8HS 39 B8HS
WIRE-LEAD 40 26011-084
