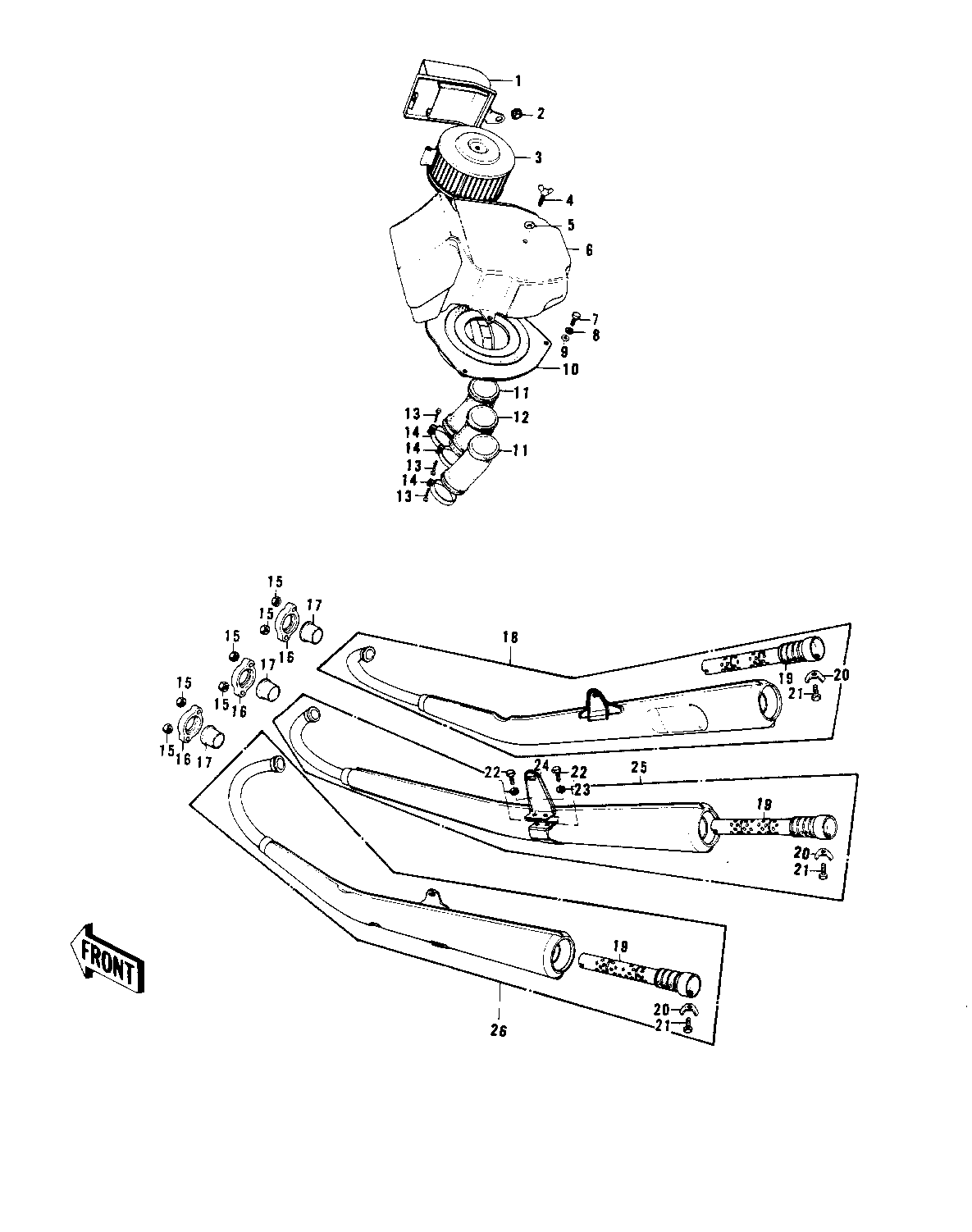

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,AIR CLEANER | 1 | 11012-056 | |||
| GROMMET | 2 | 92071-056 | |||
| ELEMENT,AIR CLNR | 3 | 11013-052 | |||
| BOLT,CLNR ELEMENT | 4 | 92003-199 | |||
| WASHER-PLAIN | 5 | 92022-021 | |||
| BODY,AIR CLEANER | 6 | 11011-051 | |||
| BOLT-UPSET,6X20 | 7 | 112G0620 | |||
| WASHER SPRING 6MM | 8 | 461F0600 | |||
| WASHER PLAIN 6MM | 9 | 411B0600 | |||
| BODY,AIR CLEANER | 10 | 11011-052 | |||
| PIPE-AIR INLT,R.H&L.H | 11 | 11015-024 | |||
| PIPE-AIR INLET,CENTER | 12 | 11015-025 | |||
| SCREW-PAN-CROS,6X35,B | 13 | 220C0635 | |||
| CLAMP | 14 | 92037-1326 | |||
| NUT,LOCK,8MM | 15 | 92017-013 | |||
| HOLDER,EXHAUST PIPE | 16 | 18069-054 | |||
| INSERT,EXH PIPE HLDR | 17 | 18070-011 | |||
| MUFFLER ASSY,R.H. | 18 | 18001-209 | KH400-A3 | ||
| MUFFLER ASSY,R.H. | 18 | 18001-209 | KH400-A4/A5 | ||
| BAFFLE TUBE | 19 | 18033-097 | |||
| WASHER LOCK 6MM | 20 | 92024-016 | |||
| BOLT-UPSET,6X12 | 21 | 112G0612 | |||
| BOLT-SMALL-UPSET,8X16 | 22 | 115G0816 | |||
| WASHER SPRING 8MM | 23 | 461F0800 | |||
| BRACKET,MUFFLER | 24 | 18061-042 | |||
| MUFFLER ASSY,CENTER | 25 | 18001-208 | KH400-A3 | ||
| MUFFLER ASSY,CENTER | 25 | 18001-208 | KH400-A4/A5 | ||
| MUFFLER ASSY,L.H. | 26 | 18001-207 | KH400-A3 | ||
| MUFFLER ASSY,L.H. | 26 | 18001-207 | KH400-A5/A5 |
