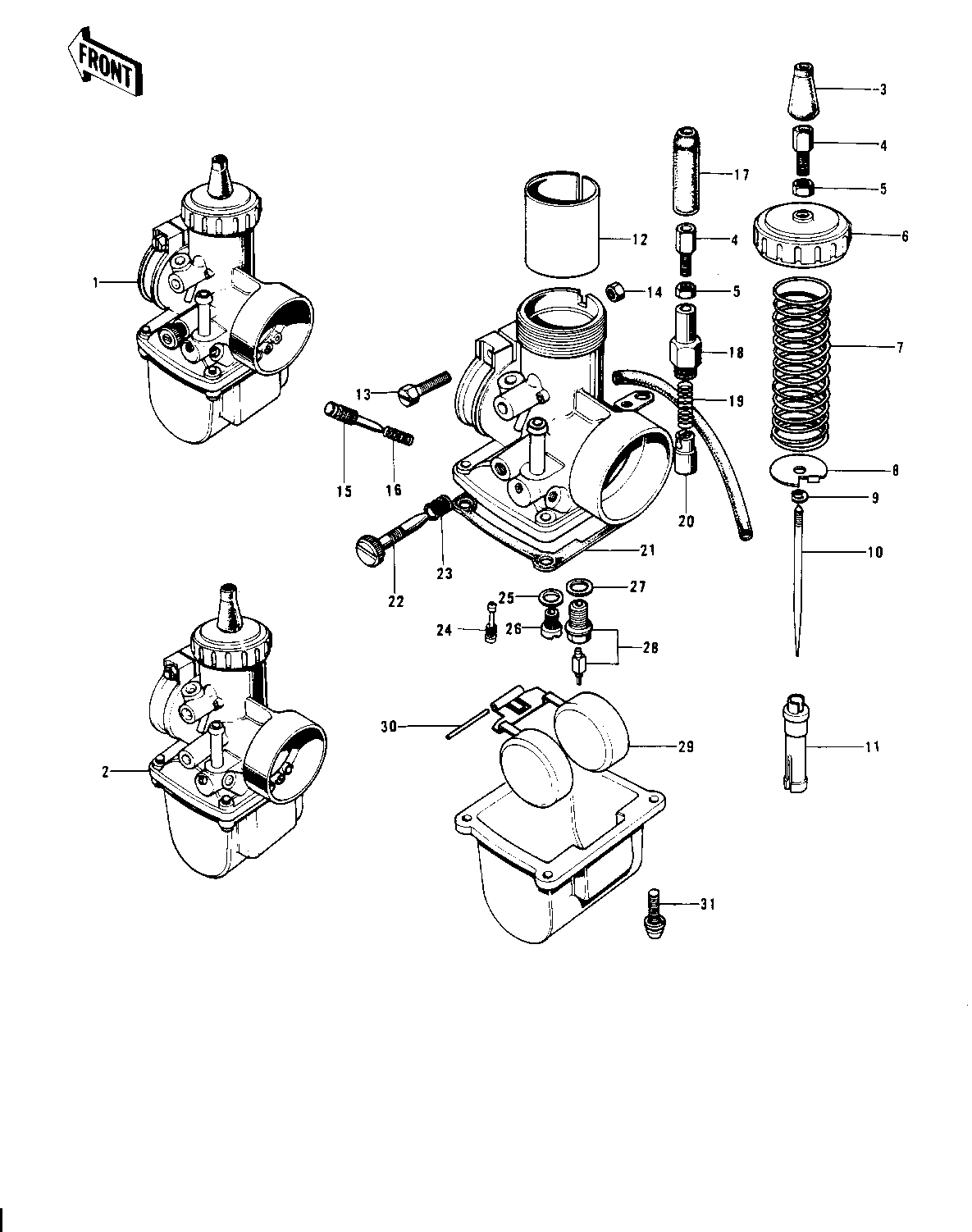

1977 KH400-A4 - CARBURETORS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY,L.H 1 16001-253 VM26SC
CARBURETOR ASSY,CE&RH 2 16001-254 VM26SC
CAP,CARBURETOR 3 16036-007
CABLE ADJUSTER 4 16002-004
NUT CABLE ADJUST LOCK 5 16003-004
CAP,MIXING CHAMBER 6 16004-025
SPRING,THROTTLE VALV 7 16006-024
SPRING SEAT,THRTL VL 8 16007-023
CIRCLIP 9 16008-010
JET NEEDLE 4EJ4 10 16009-047
NEEDLE JET,0-6 11 16017-092
VALVE,THROTTLE,L.H 12 16025-081 CA2.5
VALVE,THROTTLE,RH&CEN 12 16025-082 CA2.5
SCREW CLAMP 13 16010-004
NUT 6MM 14 311B0600
SCREW 15 16014-006
SPRING-THR STOP SCREW 16 16022-007
CAP CABLE ADJUST RUBB 17 16036-005
CAP STARTER PLUNGER 18 16012-008
SPRING-PLUNGER 19 16013-003
PLUNGER-ENRICHNER 20 16016-002
GASKET FLOAT CHAMBER 21 16019-013
SCREW-THROTTLE STOP 22 16021-013
SPRING THR STOP SCREW 23 16022-005
JET-PILOT NO 20 24 92064-021
WASHER MAIN JET 25 16034-001
MAIN JET,#77.5R 26 92063-1032 STD
MAIN JET NO 72.5R 26 92063-108
MAIN JET NO 75R 26 92063-109
MAIN JET, #A80 26 92063-1030
MAIN JET NO 82.5R 26 92063-124
WASHER FLOAT VLV SEAT 27 16029-004
FLOAT VALVE ASSY 28 16030-005
FLOAT 29 16031-016
FLOAT PIN 30 16032-003
SCREW FLOAT CHAMBER 31 16033-009
