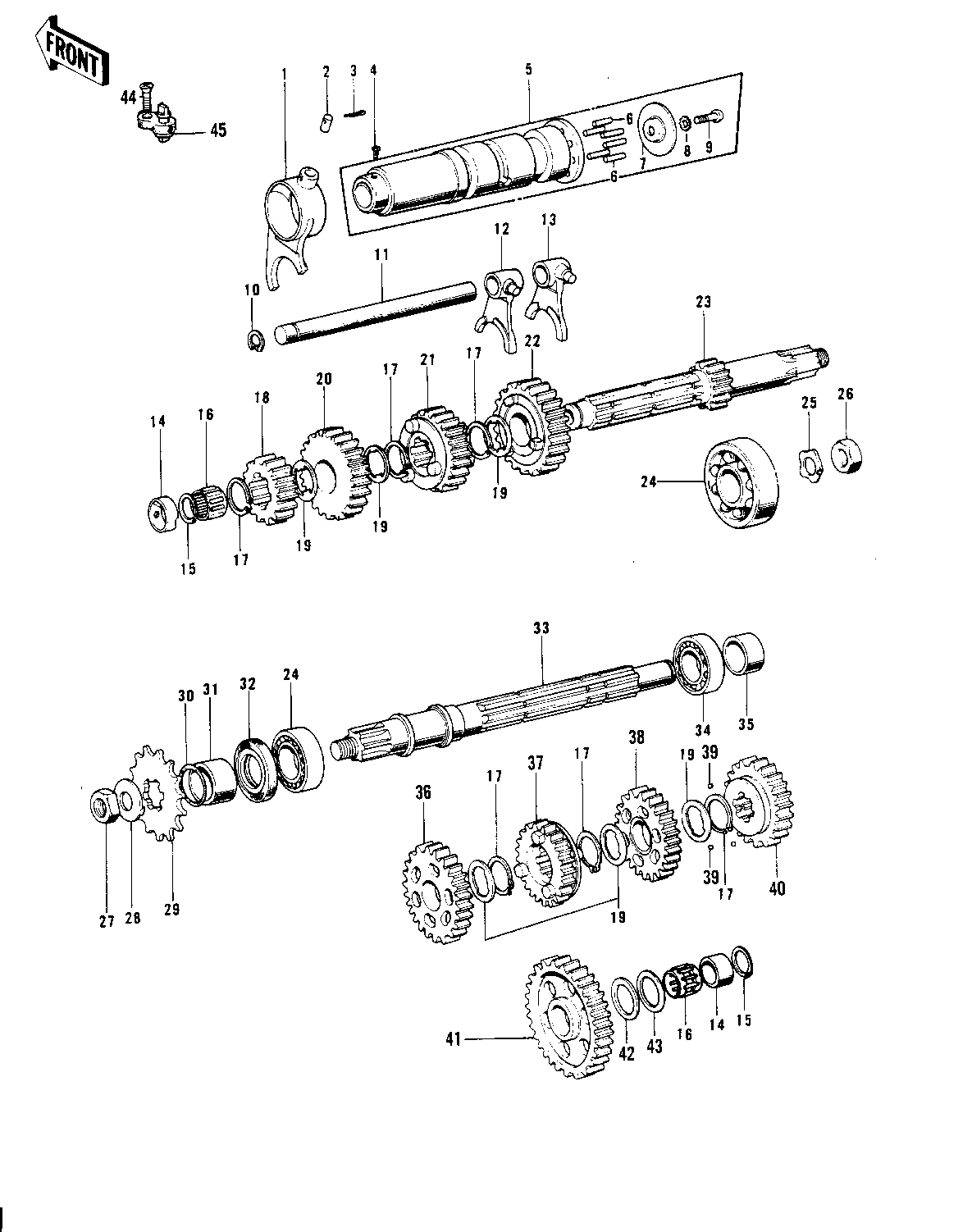

1977 KH400-A4 - TRANSMISSION/CHANGE DRUM ('76-'78 A3/A4/

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-SELECTOR,4TH&TOP 1 13140-037
DOWEL PIN,8X18 2 92042-021
PIN COTTER 3.0X20 3 550D3020
SCREW PAN HEAD 4X6 4 211B0406A
DRUM ASSY-GEAR CHANGE 5 13239-003
PIN GEAR CHANGE DRUM 6 92042-014
PLATE CHANGE DRUM PIN 7 13142-008
WASHER LOCK 6MM 8 464H0600
SCREW PAN HEAD 6X14 9 220B0614
CIRCLIP 10MM 10 482J0100
ROD-SHIFT 11 13209-006
SELECTOR FORK,2ND&3RD 12 13140-054
SELECTOR FORK,LOW 13 13140-053
BUSH TRANSMMISION SFT 14 92028-043
CIRCLIP 17MM 15 92033-009
BEARING NEEDLE 16 92046-005
CIRCLIP,25MM 17 92033-025
2ND GEAR-DRIVE SHAFT 18 13130-028
WASHER-LOCK 19 92024-034
TOP GEAR-DRIVE SHAFT 20 13136-038
3RD GEAR-DRIVE SHAFT 21 13132-027
4TH GEAR-DRIVE SHAFT 22 13134-013
SHAFT-DRIVE 23 13127-034
BEARING BALL 6205NX3 24 92045-010
WASHER-LOCK,14MM 25 92024-046
NUT 14MM 26 315B1400
NUT 18MM 27 92015-019
WASHER,LOCK,18MM 28 92024-067
ENGINE SPROCKET 15T 29 13144-030 STD
ENGINE SPROCKET 14T 29 13144-035
ENG SPROCKET 16T (OPT 29 13144-036
"O" RING 30 92055-035
SPACER-ENG SPROCKET 31 92026-1024
SPACER-ENG SPROCKET 31 92026-1024
OIL SEAL SC325210 32 92050-024
SHAFT,OUTPUT 33 13128-5004
SHAFT,OUTPUT 33 13128-5004
BEARING BALL #6005 34 601B6005
COLLAR 35 92027-135
2ND GEAR-OUTPUT SHAFT 36 13131-034
TOP GEAR-OUTPUT SHAFT 37 13137-022
3RD GEAR-OUTPUT SHAFT 38 13133-027
BALL STEEL 5/32' 39 600A0500
4TH GEAR-OUTPUT SHAFT 40 13135-017
LOW GEAR-OUTPUT SHAFT 41 13129-038
WASHER THRUST 42 92026-021
WASHER 17MM 43 92022-075
SCREW CNTSNK HD 6X16 44 221B0616
SWITCH,NEUTRAL 45 13151-021
