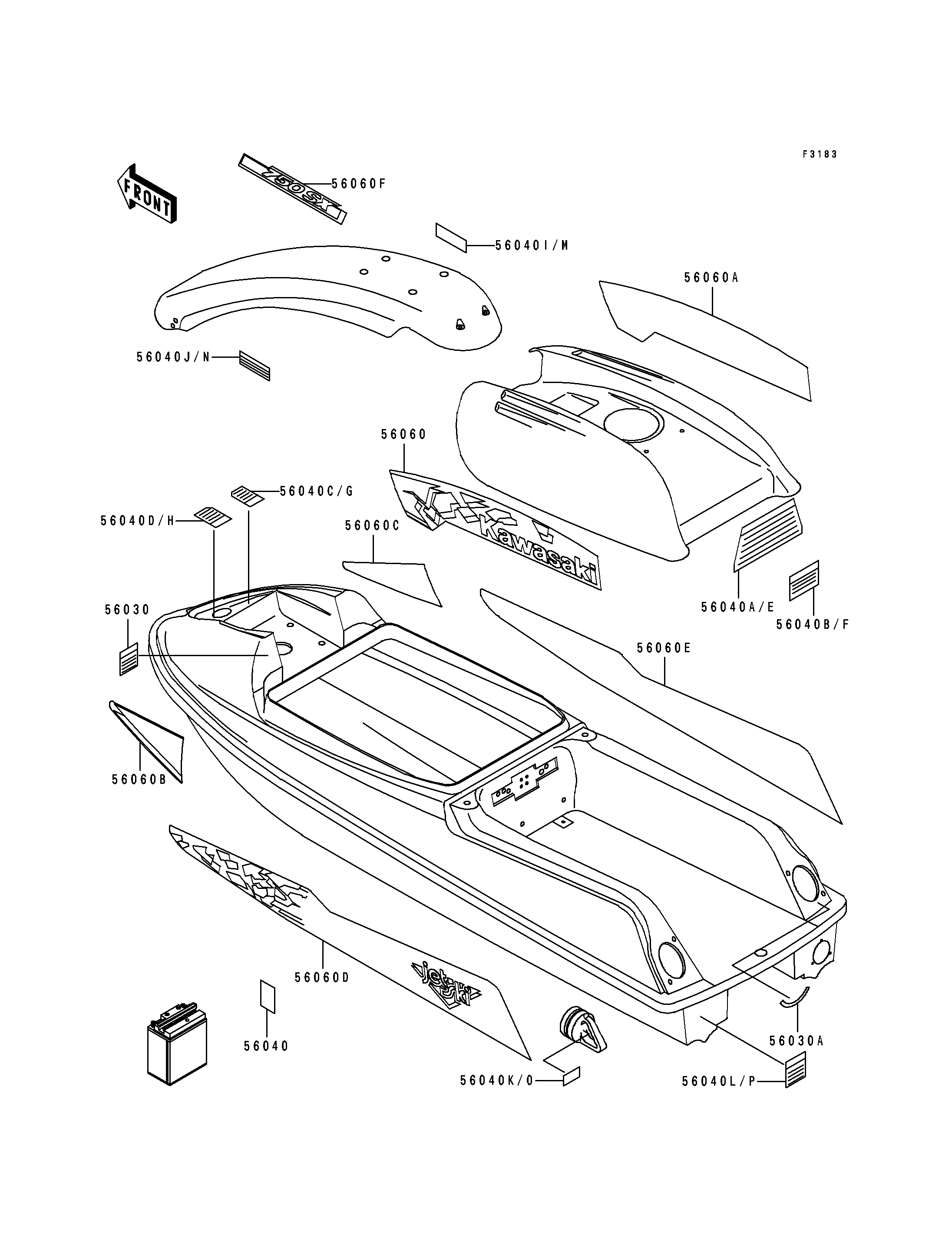

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,OIL RECOMMENDED(FRENCH) | 56030 | 56030-3765 | 1 | CN | |
| LABEL,FIRE EXTINGUISHER | 56030A | 56030-3789 | 1 | ||
| LABEL,BATTERY CAUTION(FRENCH) | 56040 | 56040-1106 | 1 | CN | |
| LABEL-WARNING,IMPORTANT SAFETY | 56040A | 56040-3932 | 1 | ||
| LABEL-WARNING,CAUTION SAFETY | 56040B | 56040-3933 | 1 | ||
| LABEL-WARNING,FUEL SUPPLY | 56040C | 56040-3934 | 1 | ||
| LABEL-WARNING,OIL CAUTION | 56040D | 56040-3935 | 1 | ||
| LABEL,IMPORTANT SAFETY(FRENCH) | 56040E | 56040-3939 | 1 | CN | |
| LABEL-WARNING,CAUTION SAFETY | 56040F | 56040-3940 | 1 | CN | |
| LABEL,FUEL SUPPLY(FRENCH) | 56040G | 56040-3941 | 1 | CN | |
| LABEL-WARNING,OIL CAUTION | 56040H | 56040-3942 | 1 | CN | |
| LABEL-WARNING,CAUTION SAFETY | 56040I | 56040-3943 | 1 | ||
| LABEL-WARNING,CAUTION SAFETY | 56040J | 56040-3944 | 1 | ||
| LABEL-WARNING,CAUTION SAFETY | 56040K | 56040-3945 | 2 | ||
| LABEL-WARNING,NOZZLE | 56040L | 56040-3946 | 1 | ||
| LABEL-WARNING,CAUTION SAFETY | 56040M | 56040-3951 | 1 | CN | |
| LABEL-WARNING,CAUTION SAFETY | 56040N | 56040-3952 | 1 | CN | |
| LABEL-WARNING,CAUTION SAFETY | 56040O | 56040-3953 | 2 | CN | |
| LABEL,NOZZLE CHECK(FRENCH) | 56040P | 56040-3954 | 1 | CN | |
| PATTERN,ENGINE HOOD,LH | 56060 | 56060-1143 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56060A | 56060-1144 | 1 | ||
| PATTERN,DECK,UPP,LH | 56060B | 56060-1145 | 1 | ||
| PATTERN,DECK,UPP,RH | 56060C | 56060-1146 | 1 | ||
| PATTERN,DECK,LWR,LH | 56060D | 56060-1147 | 1 | ||
| PATTERN,DECK,LWR,RH | 56060E | 56060-1148 | 1 | ||
| PATTERN,HANDLE POLE | 56060F | 56060-1149 | 1 |
