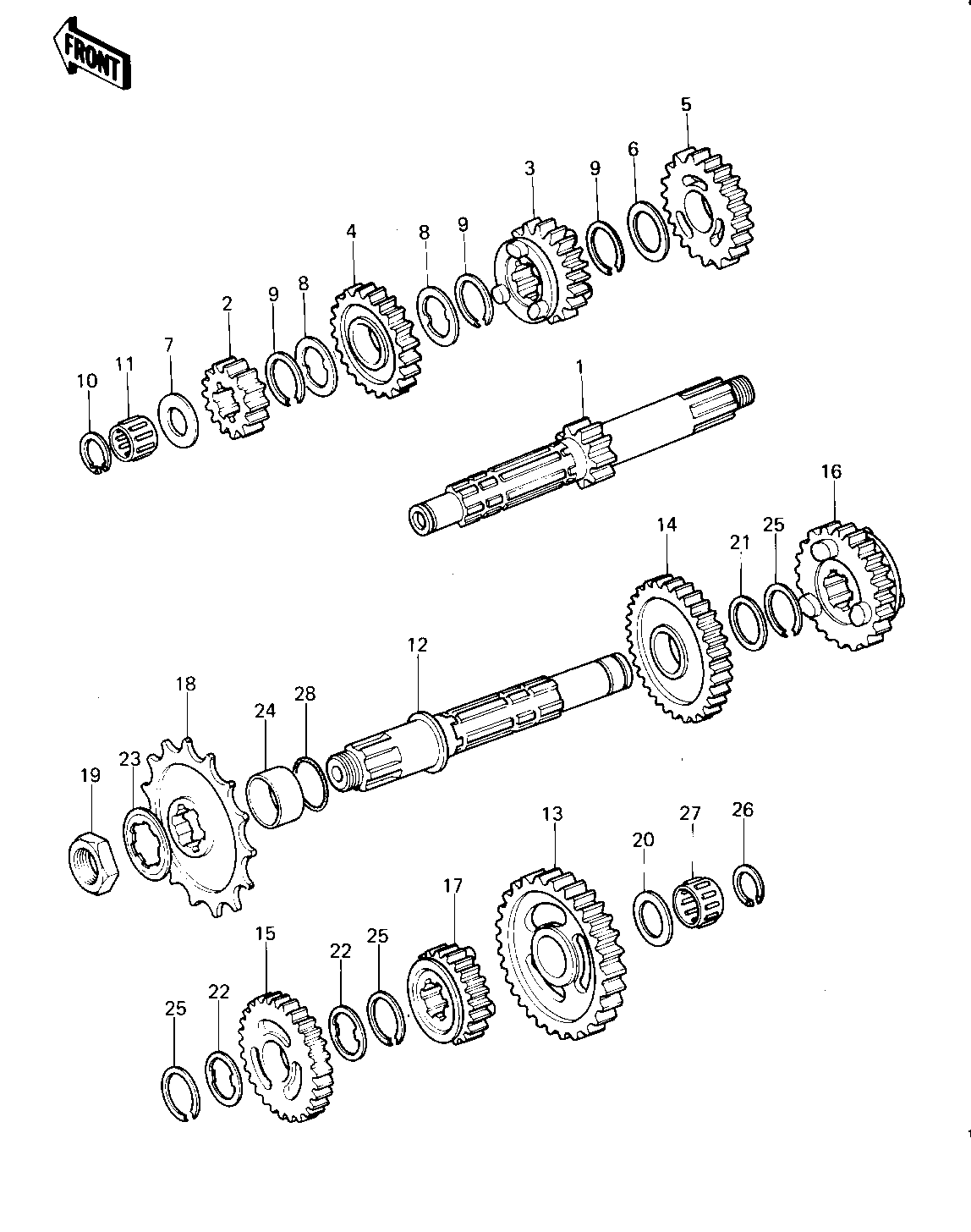

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,DRIVE,13T | 1 | 13127-1016 | 1 | ||
| 2ND GEAR,DRIVE 17T | 2 | 13129-1125 | 1 | ||
| 3RD GEAR,DRIVE,22T | 3 | 13129-1126 | 1 | ||
| 4TH GEAR,DRIVE,22T | 4 | 13129-1127 | 1 | ||
| TOP GEAR,DRIVE,24T | 5 | 13129-1128 | 1 | ||
| WASHER-PLAIN | 6 | 92022-198 | 1 | ||
| WASHER,PLAIN | 7 | 92022-281 | 1 | ||
| WASHER-LOCK | 8 | 92024-039 | 2 | ||
| CIRCLIP,25MM | 9 | 92033-025 | 3 | ||
| CIRCLIP,16MM | 10 | 92033-032 | 1 | ||
| BEARING-NEEDLE | 11 | 92046-1184 | 1 | ||
| SHAFT,OUTPUT | 12 | 13128-1023 | 1 | ||
| LOW GEAR,OUTPUT,30T | 13 | 13129-1129 | 1 | ||
| 2ND GEAR,OUTPUT,26T | 14 | 13129-1130 | 1 | ||
| GEAR-TRANSMISSION SPU | 15 | 13129-1679 | 1 | ||
| 4TH GEAR,OUTPUT,21T | 16 | 13129-1132 | 1 | ||
| TOP GEAR,OUTPUT,19T | 17 | 13129-1133 | 1 | ||
| SPROCKET,ENGINE,15T | 18 | 13144-1026 | 1 | STD. | |
| ENGINE SPROCKET 13T | 18 | 13144-055 | (1 | ||
| ENGINE SPROCKET,14T | 18 | 13144-1006 | (1 | ||
| SPROCKET,ENGINE,16T | 18 | 13144-1028 | (1 | ||
| NUT BEARING ADJUST | 19 | 42045-008 | 1 | ||
| WASHER THRUST | 20 | 92022-112 | 1 | ||
| WASHER-PLAIN 25MM | 21 | 92022-159 | 1 | ||
| WASHER-LOCK | 22 | 92024-038 | 2 | ||
| WASHER,LOCK | 23 | 92024-065 | 1 | ||
| COLLAR,25X32X10.5 | 24 | 92143-1370 | 1 | ||
| CIRCLIP | 25 | 92033-026 | 3 | ||
| CIRCLIP,18MM | 26 | 92033-029 | 1 | ||
| BEARING-NEEDLE,KT2026 | 27 | 92046-1170 | 1 | ||
| "O" RING | 28 | 92055-035 | 1 |
| SHAFT,DRIVE,13T | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 2ND GEAR,DRIVE 17T | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 3RD GEAR,DRIVE,22T | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 4TH GEAR,DRIVE,22T | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOP GEAR,DRIVE,24T | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,25MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,16MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,OUTPUT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOW GEAR,OUTPUT,30T | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 2ND GEAR,OUTPUT,26T | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-TRANSMISSION SPU | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 4TH GEAR,OUTPUT,21T | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOP GEAR,OUTPUT,19T | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,ENGINE,15T | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | STD. |
| ENGINE SPROCKET 13T | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| ENGINE SPROCKET,14T | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,ENGINE,16T | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| NUT BEARING ADJUST | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER THRUST | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN 25MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,25X32X10.5 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,KT2026 | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
