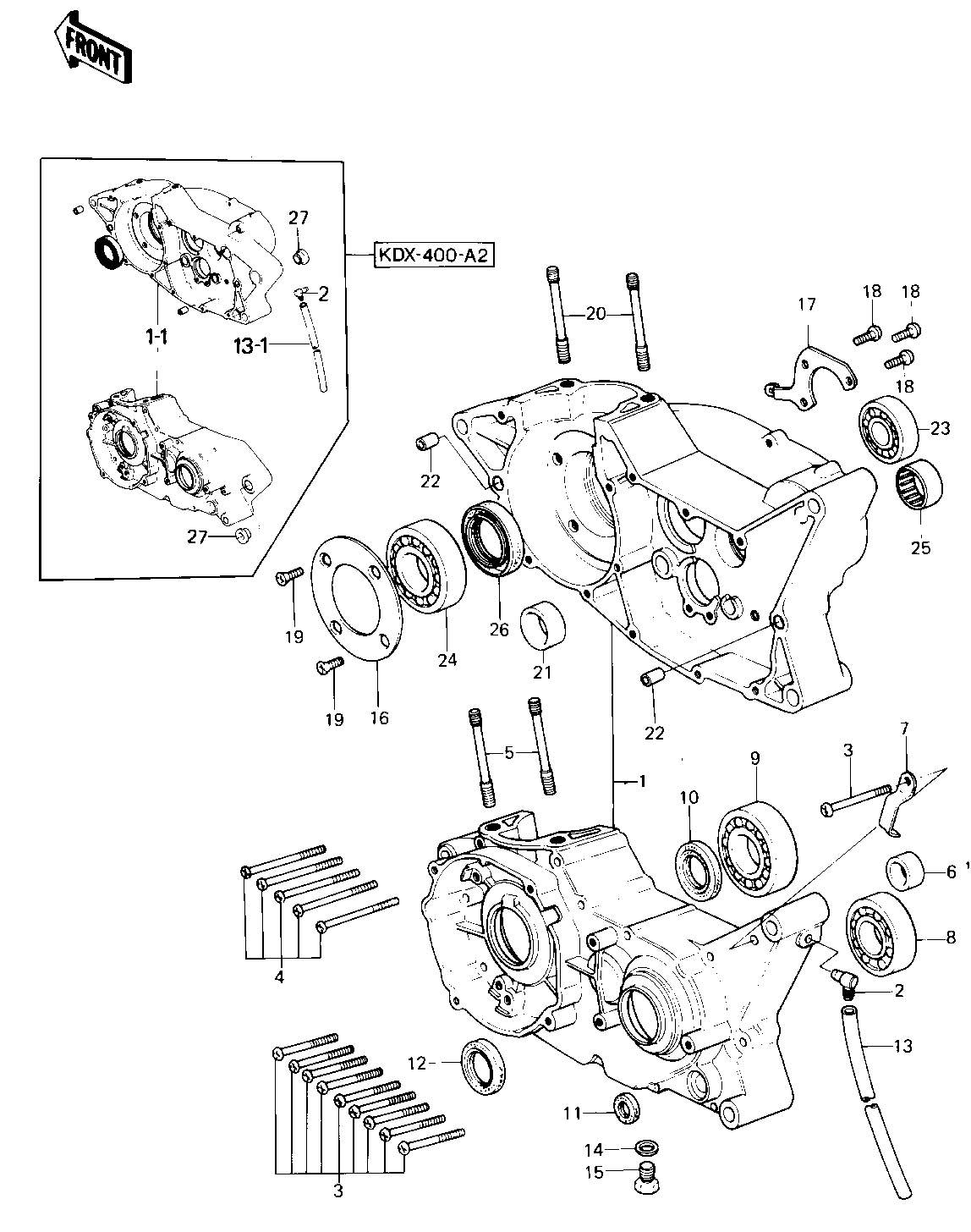

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKCASE SET,F.BLACK | 1 | 14001-5044 | 1 | ||
| BREATHER | 2 | 14069-003 | 1 | ||
| SCREW PAN HEAD 6X50 | 3 | 220B0650 | 10 | ||
| SCREW PAN HEAD 6X70 | 4 | 220B0670 | 5 | ||
| STUD,10X72 | 5 | 92004-1023 | 2 | ||
| BUSHING | 6 | 92028-132 | 1 | ||
| CLAMP | 7 | 92037-1073 | 1 | ||
| BEARING,BALL,#6305 | 8 | 92045-1011 | 1 | ||
| BEARING,B,6306SH2-9TC | 9 | 92045-1027 | 1 | ||
| OIL SEAL,TB30508 | 10 | 92050-057 | 1 | ||
| OIL SEAL,CHANGE SHAFT | 11 | 92050-082 | 1 | ||
| SEAL-OIL,TC32457 | 12 | 92049-1159 | 1 | ||
| PIPE-BREATHER | 13 | 92059-061 | 1 | ||
| GASKET CHECK VALVE | 14 | 92065-058 | 1 | ||
| PLUG OIL DRAIN | 15 | 92067-001 | 1 | ||
| PLATE,POSITION,CRANK | 16 | 14014-1011 | 1 | ||
| PLATE,POSITION,DRIVE | 17 | 14014-1012 | 1 | ||
| SCREW PAN HEAD 6X16 | 18 | 220B0616 | 3 | ||
| SCREW CNTSNK HD 6X16 | 19 | 221B0616 | 4 | ||
| STUD,10X72 | 20 | 92004-1023 | 2 | ||
| BUSHING | 21 | 92028-131 | 1 | ||
| PIN,DOWEL,10X8.2X14 | 22 | 92043-1037 | 2 | ||
| BEARING,BALL | 23 | 92045-1006 | 1 | ||
| BEARING,B,6306SH2-9TC | 24 | 92045-1027 | 1 | ||
| BEARING,NEEDLE,344012 | 25 | 92046-040 | 1 | ||
| OIL SEAL,ACJ386210 | 26 | 92049-1046 | 1 |
| CRANKCASE SET,F.BLACK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X50 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X70 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| STUD,10X72 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL,#6305 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,B,6306SH2-9TC | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB30508 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,CHANGE SHAFT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TC32457 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-BREATHER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET CHECK VALVE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG OIL DRAIN | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,POSITION,CRANK | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,POSITION,DRIVE | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X16 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X16 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STUD,10X72 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,B,6306SH2-9TC | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,NEEDLE,344012 | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,ACJ386210 | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
