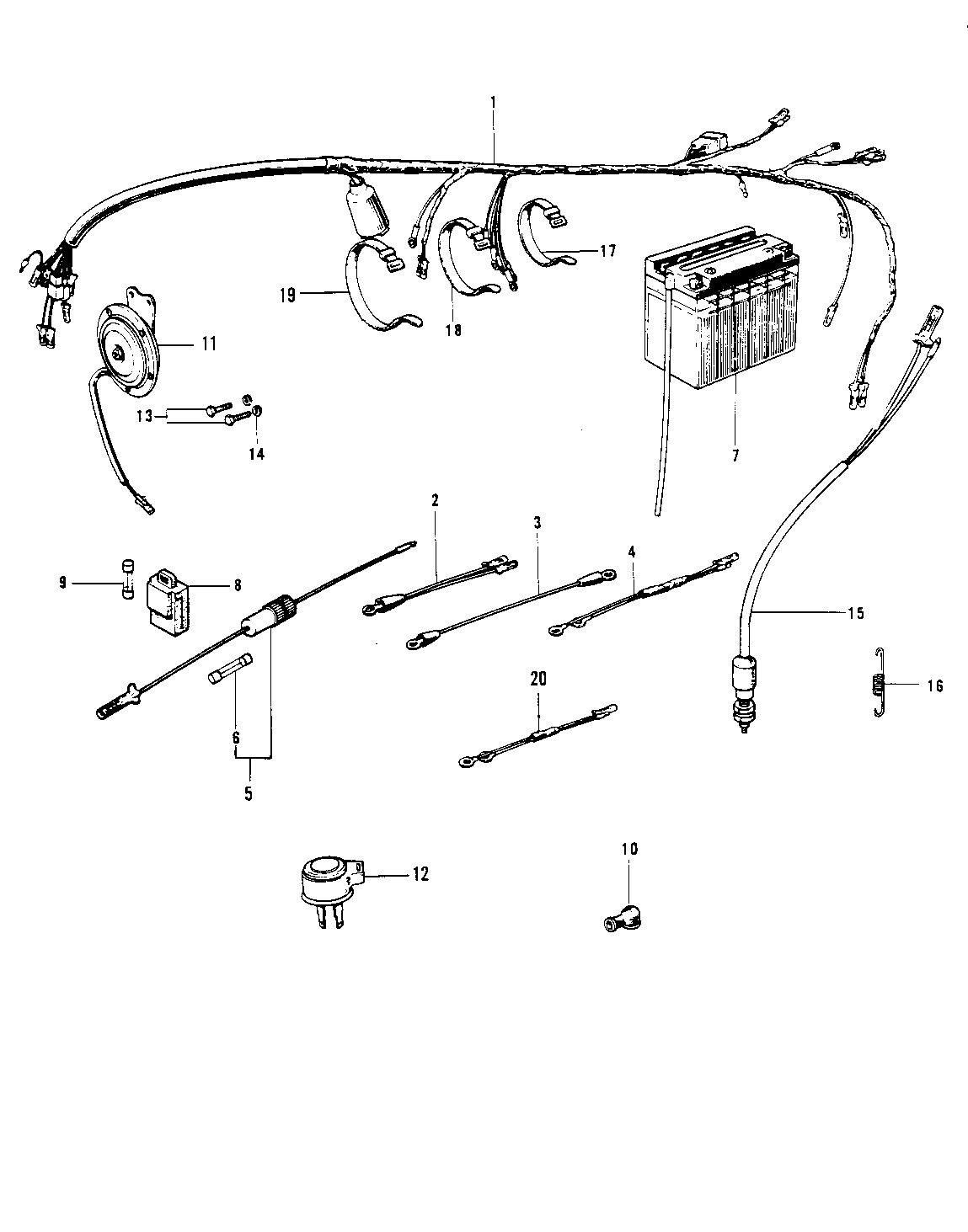

1973 Mach II - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS-MAIN 1 26001-059 S2
WIRING HARNESS-MAIN 1 26001-081 S2-A
WIRE BATTERY LEAD 2 26010-015
WIRE BATTERY GROUND 3 26010-017
WIRE-LEAD 4 26011-052 S2
WIRE-SIGNAL LAMP LEAD 4 26011-064 S2-A
FUSE ASSY 5 26004-010 S2
FUSE ASSY 5 26004-015 S2-A
FUSE 20A 6 26006-002 S2
FUSE-20A 6 26006-005 S2-A
FB BAT 12N5.5-4A 7 26012-022
HOLDER-SPARE FUSE 8 26016-004 S2-A
FUSE-20A 9 26006-005 S2-A
CAP BAT TERMINAL RUBB 10 92073-001
HORN 11 27003-027 S2
HORN 11 27003-042 S2-A
HORN 11 27003-042 S2-A
RELAY-TURN SIGNAL 12 27002-011
BOLT-SMALL-UPSET,8X14 13 115B0814 S2
BOLT-SMALL-UPSET,8X16 13 115G0816 S2-A
WASHER SPRING 8MM 14 461F0800
SWITCH-BRAKE LAMP 15 27010-020 S2
SWITCH-BRAKE LAMP 15 27010-020 S2-A
SPRING-BRAKE LAMP SW 16 27011-013
BAND,SHORT 17 92072-030
BAND,MIDDLE 18 92072-031
BAND,LONG 19 92072-032
WIRE-LEAD 20 26011-051 S2
