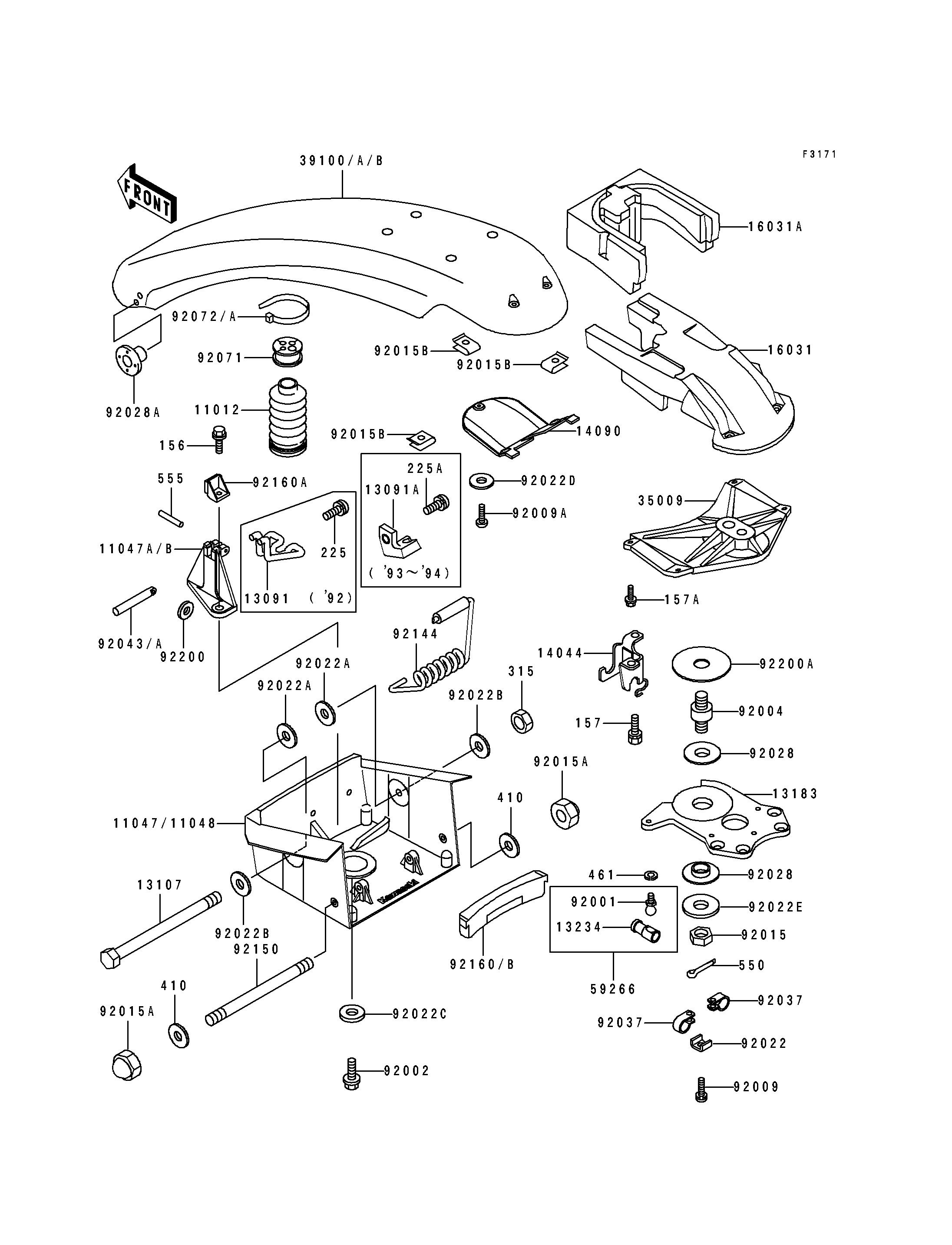

1994 750 SX - Handle Pole(JS750-A1/A2/A3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3754 1
BRACKET 11047B 11047-3800 1
BRACKET,PIVOT SHAFT,J.WHITE 11048 11048-3735-8C 1
HOLDER 13091A 13091-3774 1
SHAFT,PIVOT 13107 13107-3725 1
PLATE,HANDLEBER 13183 13183-3793 1
SHAFT-COMP,JOINT 13234 13234-3708 1
HOLDER-CABLE 14044 14044-3716 1
COVER,HANDLE POLE,J.WHITE 14090 14090-3708-8C 1
FLOAT,HANDLE POLE 16031 16031-3801 1
FLOAT,HANDLE POLE 16031A 16031-3809 1
BRACE 35009 35009-3707 1
POLE-COMP-HANDLE,J.WHITE 39100B 39100-3711-8C 1
JOINT-BALL 59266 59266-3707 1
BOLT,BALL,6MM 92001 92001-3703 1
BOLT,8X25 92002 92002-3774 4
STUD 92004 92004-3728 1
SCREW,5X16 92009 92009-3736 1
SCREW,5X16 92009A 92009-3797 3
NUT,CASTLE,18MM 92015 92015-3006 1
NUT,CAP,6MM 92015A 92015-3755 2
NUT,CLIP,5MM 92015B 92015-3830 3
WASHER,CLAMP 92022 92022-3014 1
WASHER,15X36X4.5 92022A 92022-3024 2
WASHER,15X34X2.0 92022B 92022-3738 2
WASHER,8.5X34X3 92022C 92022-3746 4
WASHER 92022D 92022-567 3
WASHER 92022E 92022-571 1
BUSHING 92028 92028-3743 2
BUSHING,STEERING 92028A 92028-3752 2
CLAMP,LEAD WIRE 92037 92037-3007 2
PIN 92043A 92043-3739 1
GROMMET 92071 92071-3788 1
BAND 92072A 92072-3778 1
SPRING 92144 92144-3735 1
BOLT,6X119 92150 92150-3787 1
DAMPER 92160A 92160-3790 2
DAMPER 92160B 92160-3818 1
WASHER,3.5X12X1 92200 92200-3723 1
WASHER,20.5X80X3 92200A 92200-3725 1
BOLT-WP,6X16 156 156R0616 3
BOLT-WSP,6X16 157 157R0616 2
BOLT-WSP,6X20 157A 157R0620 4
SCREW-PAN-WSP-CROS,5X16 225A 225R0516 1
NUT-HEX-FINE,14MM 315 315R1400 1
WASHER-PLAIN-SMALL,6MM 410 410S0600 2
WASHER-SPRING,6MM 461 461S0600 1
PIN-COTTER,4X40 550 550S4040 1
PIN-SPRING,3X25 555 555B0325 1
