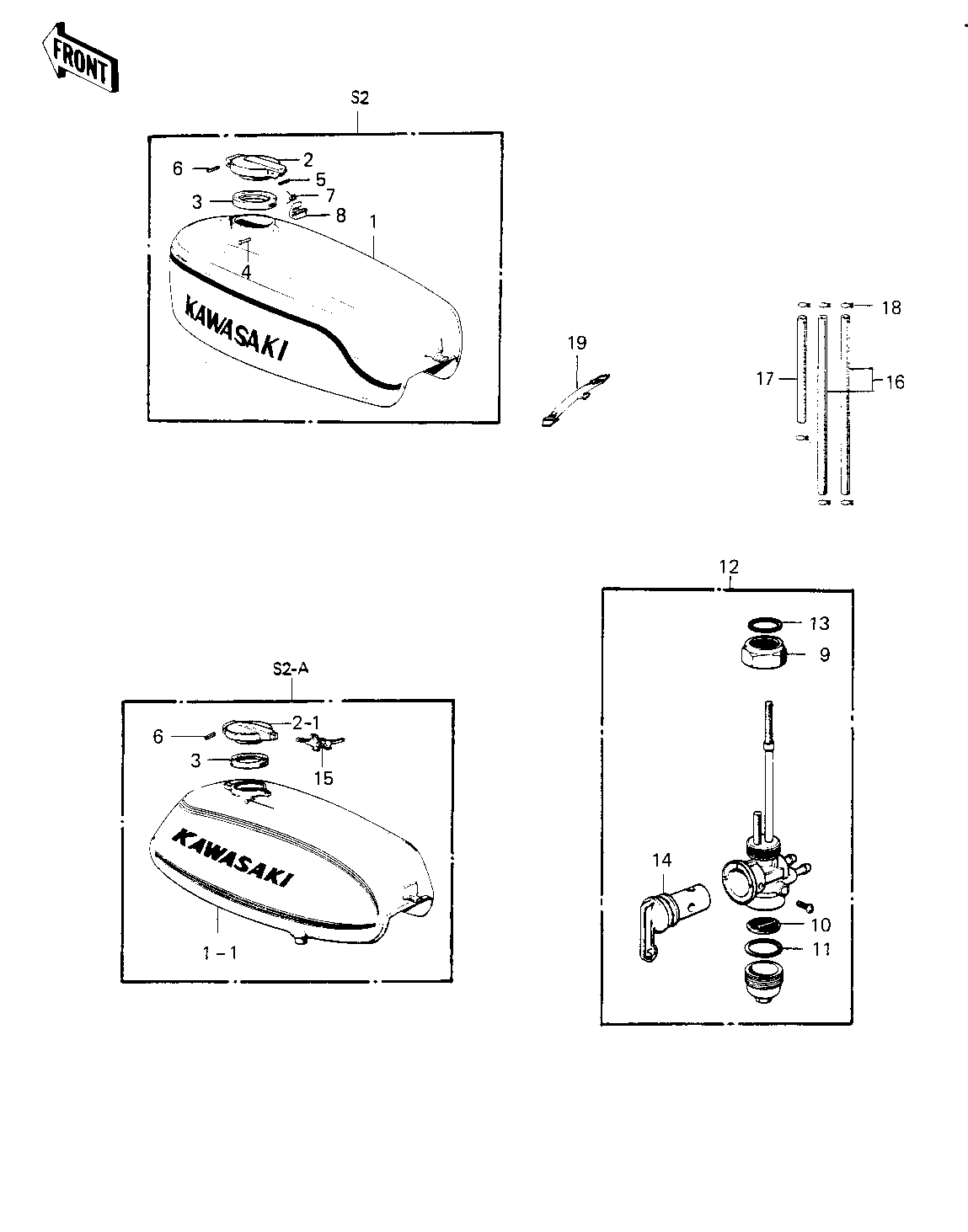

1973 Mach II - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TANK-FUEL,P.C.RED 1 51001-071-68 S2
TANK-FUEL,C.RED 1 51002-008-68 S2
TANK-FUEL,C.ORANGE 1-1 51001-080-91 S2-A
TANK-FUEL,C.BLUE 1-1 51001-080-93 S2-A
CAP-FUEL TANK 2 51051-004 S2
CAP ASSY-FUEL TANK 2-1 51049-020 S2-A
GASKET-FUEL TANK CAP 3 51059-008
PIN-HOOK 4 92043-072 S2
PIN-TANK CAP STOPPER 5 92043-073 S2
PIN-TANK CAP FIT 6 92043-074 S2
PIN-TANK CAP FITTING 6 92043-094 S2-A
SPRING-HOOK 7 51053-003 S2
HOOK 8 51063-001 S2
FUEL COCK JOINT NUT 9 51035-009
STRAINER FUEL 10 51038-007
GASKET FUEL COCK CUP 11 51037-010
COCK ASSY,FUEL 12 51023-039
COCK ASSY,FUEL 12 51023-039
GASKET-FUEL COCK JNT. 13 92065-081
FUEL COCK LEVER SET 14 51030-001 USE FOR 51023-026
KEY SET,#265 15 27018-016-65 S2-A
KEY SET,#279 15 27018-016-79 S2-A
PIPE-FUEL 16 92059-073 S2
PIPE-FUEL 16 92059-073 S2-A
TUBE 17 92059-074 S2-A
CLAMP FUEL PIPE 18 92037-010
BAND-FUEL TANK 19 92072-029 S2
BAND-FUEL TANK 19 92072-050 S2-A
