Parts Diagrams |

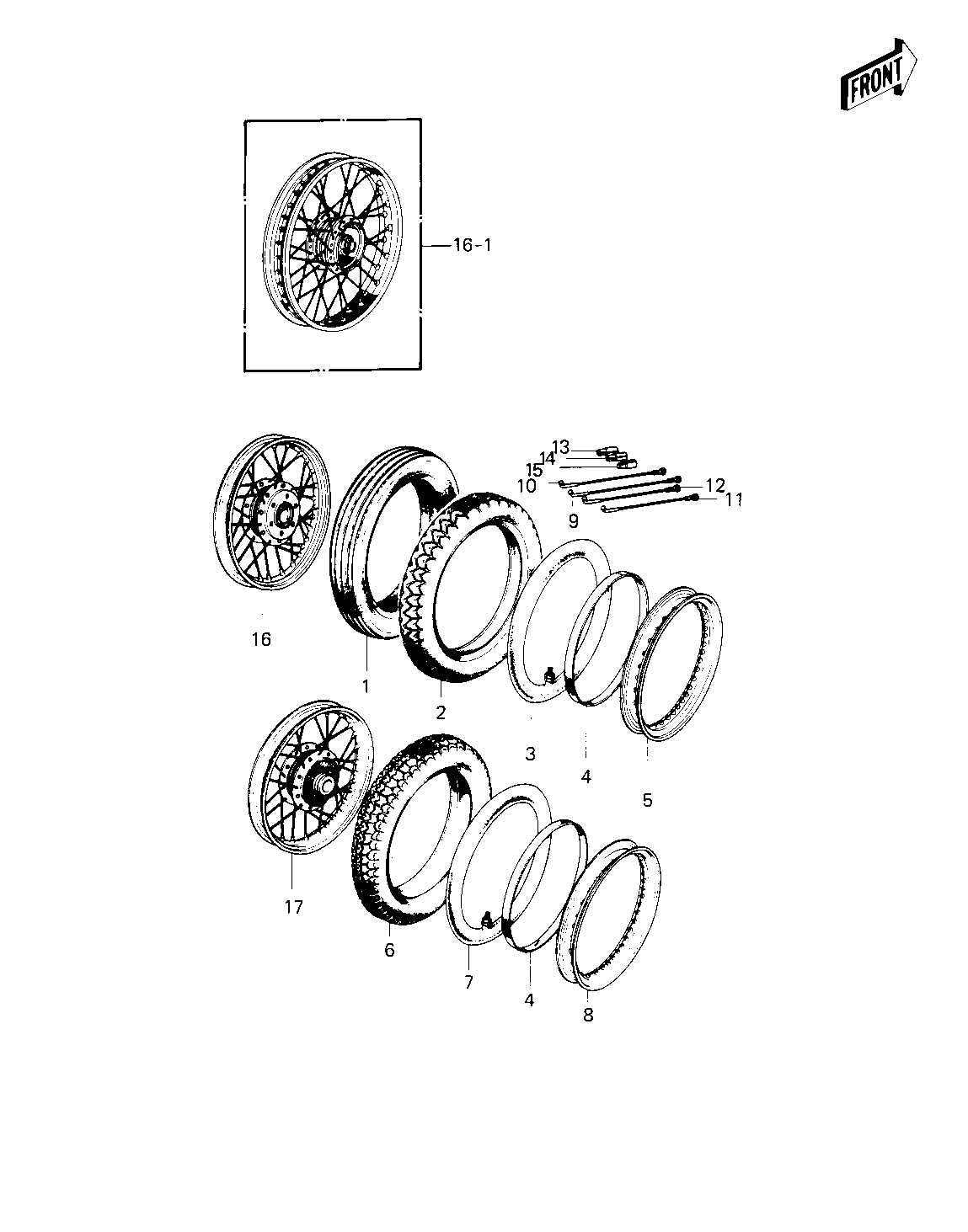

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 41013-013 | Y506 | ||
| UNAVAILABLE IN PRICE BOOK | 2 | 41014-025 | Y622 | ||
| UNAVAILABLE IN PRICE BOOK | 2 | 41021-031 | |||
| UNAVAILABLE IN PRICE BOOK | 3 | 41022-016 | S2 | ||
| UNAVAILABLE IN PRICE BOOK | 3 | 41022-020 | S2-A | ||
| TUBE 300/325/360-18 | 3 | 41022-028 | S2 | ||
| BAND,RIM,4.00/5.10-18 | 4 | 41023-1006 | |||
| BAND,RIM,4.00/5.10-18 | 4 | 41023-1006 | |||
| RIM,1.60AX18 | 5 | 41025-052 | S2 | ||
| RIM,1.60AX18W | 5 | 41025-061 | S2-A | ||
| UNAVAILABLE IN PRICE BOOK | 6 | 41014-023 | Y622 | ||
| *** N.L.A.*** (Canada) | 7 | 41022-027 | |||
| TUBE 350/375/410-18 | 7 | 41022-031 | |||
| RIM,1.85BX18W | 8 | 41025-053 | |||
| SPOKE-ASY,FR INNER | 9 | 41027-045 | S2 | ||
| SPOKE-ASY,FR INNER | 9 | 41027-054 | S2-A | ||
| SPOKE-ASY,FR OUTER | 10 | 41028-044 | S2 | ||
| SPOKE-ASY,FR OUTER | 10 | 41028-054 | S2-A | ||
| SPOKE-ASY,RR INNER | 11 | 41027-046 | |||
| SPOKE-ASY,RR OUTER | 12 | 41028-045 | |||
| WEIGHT,BALANCE,10G | 13 | 41075-1007 | |||
| WEIGHT,BALANCE,20G | 14 | 41075-1008 | |||
| WEIGHT,BALANCE,30G | 15 | 41075-1009 | |||
| WHEEL ASSY FRONT | 16 | 41074-011 | S2 | ||
| WHEEL ASSY FRONT | 16-1 | 41074-011 | S2-A | ||
| WHEEL ASSY-REAR | 17 | 42048-017 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | Y506 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | Y622 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2-A |
| TUBE 300/325/360-18 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2 |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM,1.60AX18 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2 |
| RIM,1.60AX18W | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2-A |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | Y622 |
| *** N.L.A.*** (Canada) | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TUBE 350/375/410-18 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM,1.85BX18W | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2 |
| SPOKE-ASY,FR INNER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2-A |
| SPOKE-ASY,FR OUTER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2 |
| SPOKE-ASY,FR OUTER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2-A |
| SPOKE-ASY,RR INNER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,RR OUTER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,10G | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,20G | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,30G | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WHEEL ASSY FRONT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2 |
| WHEEL ASSY FRONT | |
| REF # | 16-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | S2-A |
| WHEEL ASSY-REAR | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
