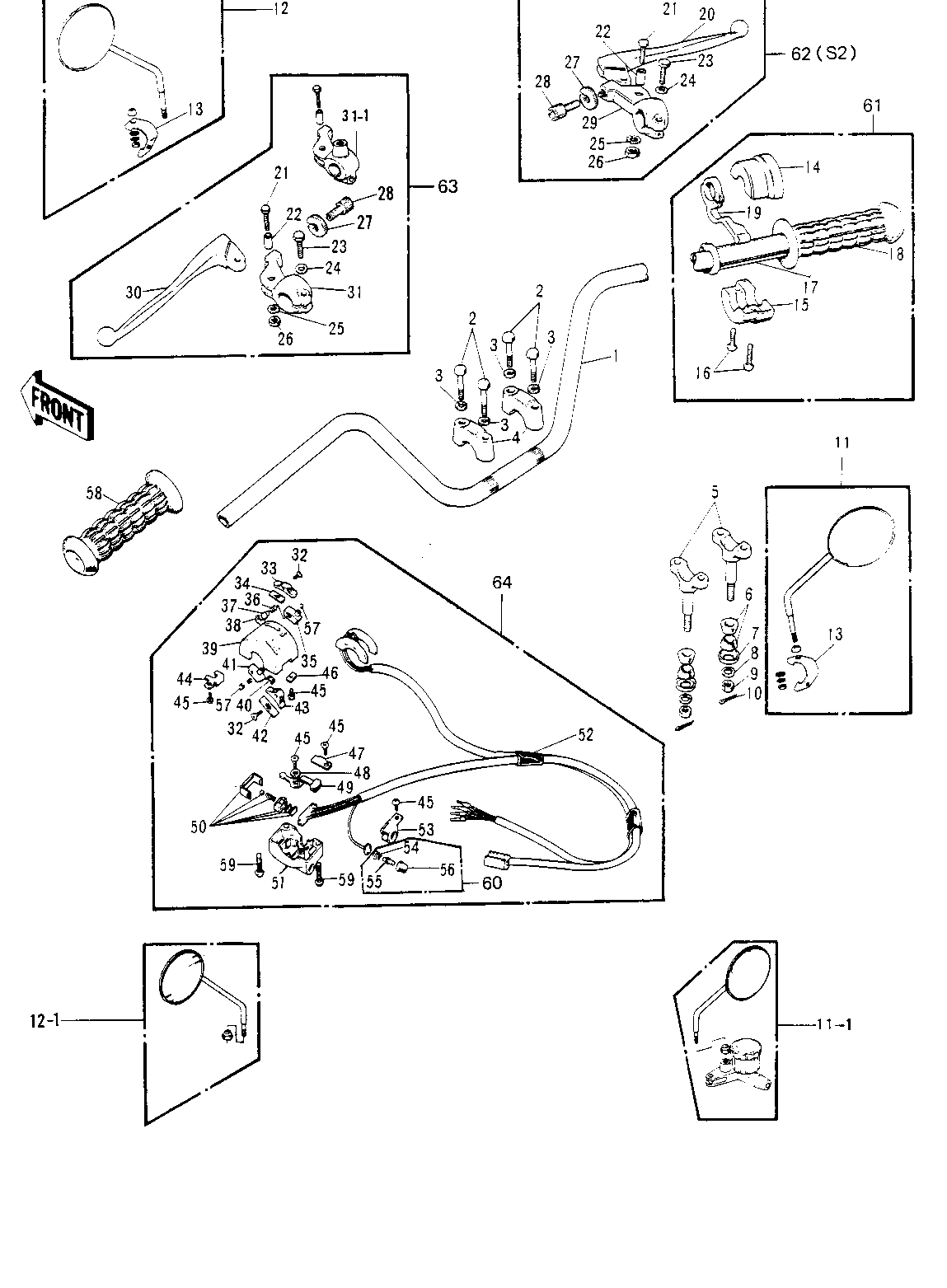

1973 Mach II - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46003-026 S2
HANDLEBAR 1 46003-030 S2-A
BOLT 8X38 2 92001-1405
BOLT 8X38 2 92001-1405
WASHER SPRING 8MM 3 461F0800
HOLDER-HANDLEBAR 4 46012-008
HOLDER-HANDLEBAR LOW 5 46012-010
DAMPER RUBBER HANDLE 6 92075-039
CAP HANDLEBAR HOLDER 7 46016-003
WASHER SPRING 10MM 8 461F1000
UNAVAILABLE IN PRICE BOOK 9 31381000
PIN,SNAP 10 554A0800
REAR VIEW MIRROR R.H. 11 56002-024 S2
REAR VIEW MIRROR,R.H 11-1 56002-020 S2-A
REAR VIEW MIRROR LH 12 56003-016 S2
REAR VIEW MIRROR,L.H 12-1 56003-009 S2-A
BRACKET 13 56006-001 S2
CASE-R.H UPPER 14 46041-006
CASE-R.H LOWER 15 46023-006
SCREW PAN HEAD 5X22 16 220B0522
GRIP ASSY-THROTTLE 17 46019-017 S2
GRIP ASSY-THROTTLE 17 46019-023 S2-A
RUBBER-R.H GRIP 18 46061-012
LEVER-STARTER 19 46096-007
LEVER FRONT BRAKE 20 46058-004 S2
BOLT HEX HEAD 5X20 21 92007-020 USE 1 OF EACH FOR S2-A
COLLAR LEVER 22 46059-011 USE 1 OF EACH FOR S2-A
BOLT, HEX HEAD 6X22 23 110N0622 S2
BOLT HEX HEAD 6X25 23 110N0625 S2-A
WASHER PLAIN 6MM 24 410B0600 USE 1 OF EACH FOR S2-A
WASHER LOCK 5MM 25 464H0500 USE 1 OF EACH FOR S2-A
NUT 5MM 26 312B0500 USE 1 OF EACH FOR S2-A
NUT-LOCK 27 46056-005 USE 1 OF EACH FOR S2-A
SCREW ADJUST 28 46055-006 USE 1 OF EACH FOR S2-A
HOLDER-FR BRAKE LEVER 29 46060-006 S2
LEVER-CLUTCH 30 46092-015 S2
LEVER-CLUTCH 30 46092-015 S2-A
HOLDER,CLUTCH LEVER 31 46094-010 S2
HOLDER-CLUTCH LEV,BLK 31 46094-011-21 S2-A
SCREW CNTSNK HD 3X8 32 221B0308A
KNOB-L.H SWITCH,B 33 46044-008
SPRING-L.H SW KNOB,B 34 46031-006
SWITCH-L.H,A 35 46089-005
SPRING-L.H SWITCH 36 46031-007
CONTACT-L.H SWITCH 37 46079-004
PLATE-L.H SW CNTACT,B 38 46080-004
CASE-L.H UPPER 39 46086-014
PLATE-L.H SW CNTACT,A 40 46080-003
SWITCH-L.H,B 41 46089-006
SPRING L.H SW KNOB 42 46031-003
KNOB-L.H SWITCH 43 46044-011
HOLDER-L.H SW UPPER,A 44 46085-018
SCREW PAN HEAD 3X5 45 220B0305A
HOLDER-L.H SW UPPER,B 46 46085-019
HOLDER-L.H SW LOWER,A 47 46085-016
WASHER 48 92095-010
KNOB-SWITCH 49 46044-007
SLIDE BLOCK AY-L.H SW 50 46089-007
CASE-L.H LOWER 51 46077-016
WIRING HARNESS-L.H SW 52 46082-018
HOLDER-L.H SW LOWER,B 53 46085-017
SWITCH ASSY,HORN BUTN 54 27010-1009
SWITCH ASSY,HORN BUTN 55 27010-1009
SWITCH ASSY,HORN BUTN 56 27010-1009
CONTACT-L.H SWITCH 57 46079-004
RUBBER-L.H GRIP 58 46075-017
SCREW PAN HEAD 5X22 59 220B0522
SWITCH ASSY,HORN BUTN 60 27010-1009
CASE ASSY-R.H 61 46018-018
LEVER ASSY,FRNT BRAKE 62 46021-025 S2
LEVER ASSY-CLUTCH 63 46076-026 S2
LEVER ASSY,CLUTCH 63 46076-044 S2-A
CASE ASSY-L.H 64 46091-005
