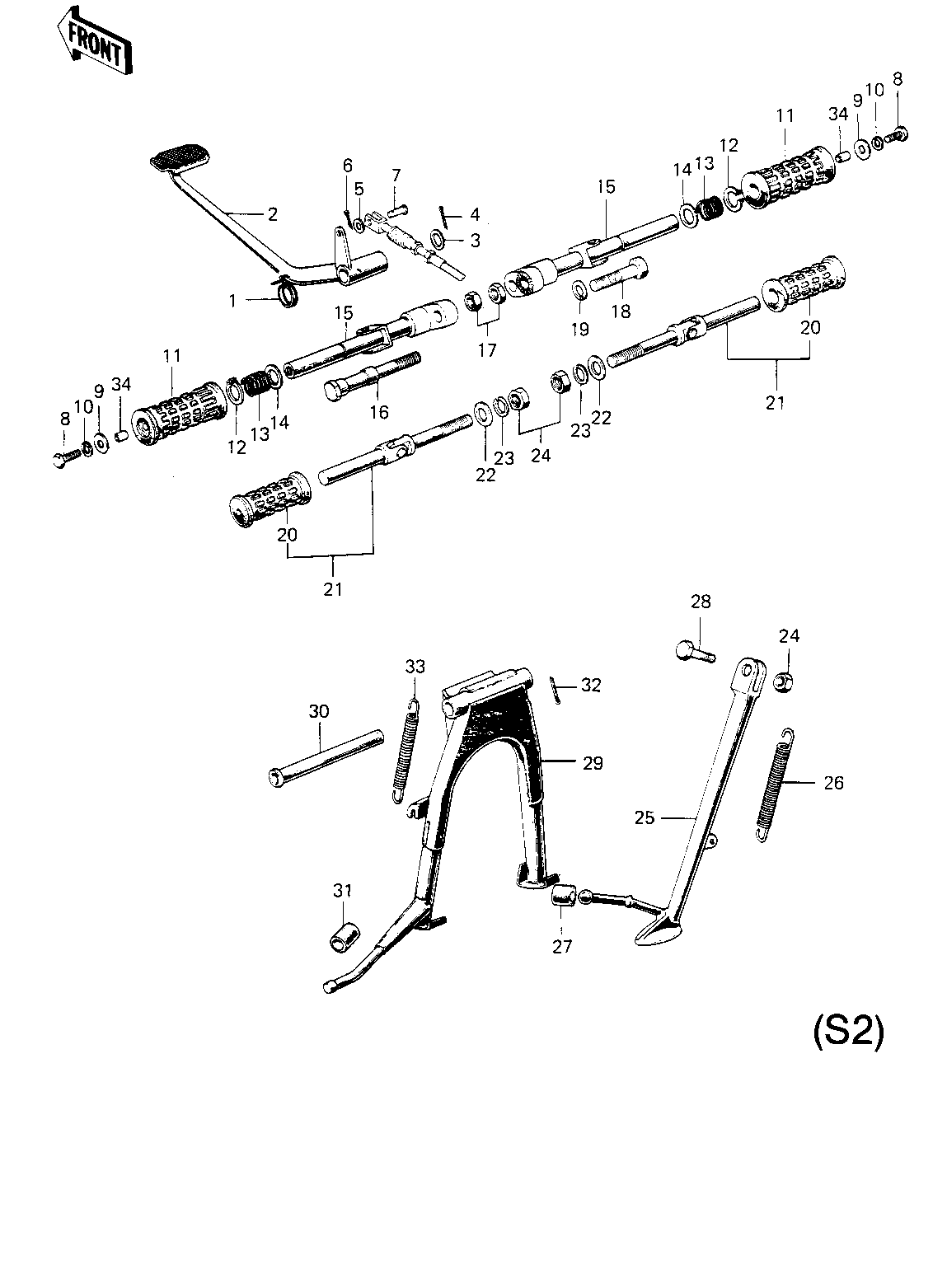

1973 Mach II - FOOTRESTS/STANDS/BRAKE PEDAL (S2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPRING,BRAKE PEDAL 1 43005-033
SPRING,BRAKE PEDAL 1 43005-033
PEDAL-BRAKE 2 43001-038
PEDAL,BRAKE 2 43001-060
WASHER BRAKE PEDAL 3 92022-085
PIN COTTER 3.0X20 4 550D3020
WASHER PLAIN 6MM 5 410B0600
PIN COTTER 2.0X15 6 550D2015
PIN R BRK CABLE JOINT 7 92043-034
BOLT-UPSET 8 112G0618
WASHER 6.5X20X1.6T 9 92022-125
WASHER SPRING 6MM 10 461F0600
RUBBER-FOOTREST 11 92076-019
CIRCLIP 16MM 12 480J1600
SPRING FOOTREST PEG 13 34006-002
WASHER FOLDING PEG 14 92022-049
BAR-FOOTREST 15 34003-028
BOLT-L.H FOOTREST FIT 16 92003-076
NUT-HEX-FINE,12MM 17 315B1200
BOLT,R.H.FOOTREST FIT 18 92001-1068
WASHER SPRING 12MM 19 461F1200
RUBBER REAR FOOTREST 20 92076-008
BAR SET-REAR FOOTREST 21 34030-001
WASHER PLAIN 10MM 22 410B1000
WASHER SPRING 10MM 23 461F1000
NUT,10MM 24 314B1000
STAND-SIDE 25 34024-051
STAND-SIDE 25 34024-051
SPRING MAIN STAND 26 34023-005
DAMPER RUBB SIDE STND 27 92075-031
UNAVAILABLE IN PRICE BOOK 28 11381035
STAND-MAIN 29 34011-028
SHAFT MAIN STAND 30 34019-011
DAMPER RUBB-MAIN STND 31 92075-115
COTTER PIN,3.0X25 32 550D3025
SPRING-MAIN STAND 33 34023-010
COLLAR 34 92027-103
