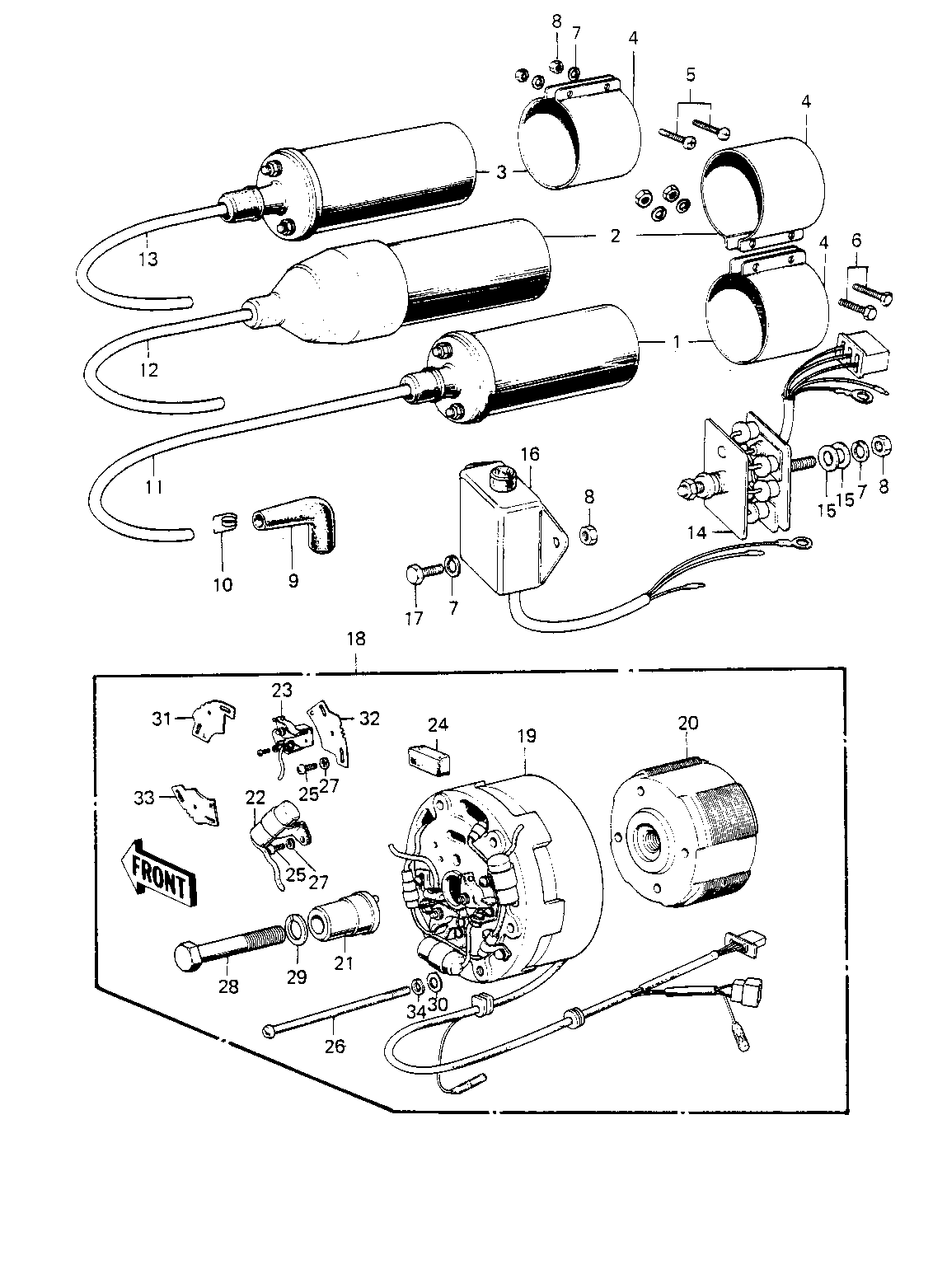

1973 Mach II - IGNITION/GENERATOR/REGULATOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION,L.H 1 21121-051
COIL-IGNITION,CENTER 2 21121-052
COIL-IGNITION,R.H 3 21121-053
BAND-IGNITION COIL 4 21126-004
SCREW PAN HEAD 6X40 5 220B0640
BOLT-UPSET,6X16 6 112G0616
WASHER SPRING 6MM 7 461F0600
NUT 6MM 8 311B0600
CAP SPARK PLUG 9 21130-009
SPRING-SPARK PLUG CAP 10 92101-001
CORD-HIGH TENSION,L.H 11 21133-020
CORD-HIGH TENSION,CNT 12 21133-021
CORD-HIGH TENSION,R.H 13 21133-022
RECTIFIER 14 21061-011
WASHER PLAIN 6MM 15 411B0600
REGULATOR,VOLTAGE 16 21066-020
REGULATOR,VOLTAGE 16 21066-020
BOLT-UPSET,6X12 17 112G0612
ALTERNATOR 18 21001-019 ~E/NO. 11110
ALTERNATOR 18 21001-022 E/NO. 11111~
STATOR ASSY 19 21003-015 ~E/NO. 11110
STATOR ASSY 19 21003-016 E/NO. 11111~
ROTOR 20 21007-020
CAM 21 21014-008
CONDENSER 22 21013-026
BREAKER-CONTACT 23 21008-019
FELT-OIL 24 21019-011
SCREW PAN HEAD 4X8 25 220B0408
SCREW PAN HEAD 5X80 26 220E0580A ~E/NO. 11110
SCREW PAN HEAD 5X55 26 220B0555A E/NO. 11111~
WASHER SPRING 4MM 27 461F0400
BOLT HEX HEAD 8X70 28 114B0870
WASHER SPRING 8MM 29 461F0800
WASHER PLAIN 5MM 30 411B0500 ~E/NO. 11110
PLATE-CNTCT BRKER,L.H 31 21156-003
PLATE-CNTCT BRKER,CEN 32 21156-004
PLATE-CNTCT BRKER,R.H 33 21156-005
WASHER SPRING 5MM 34 461F0500 ~E/NO. 11110
