Parts Diagrams |

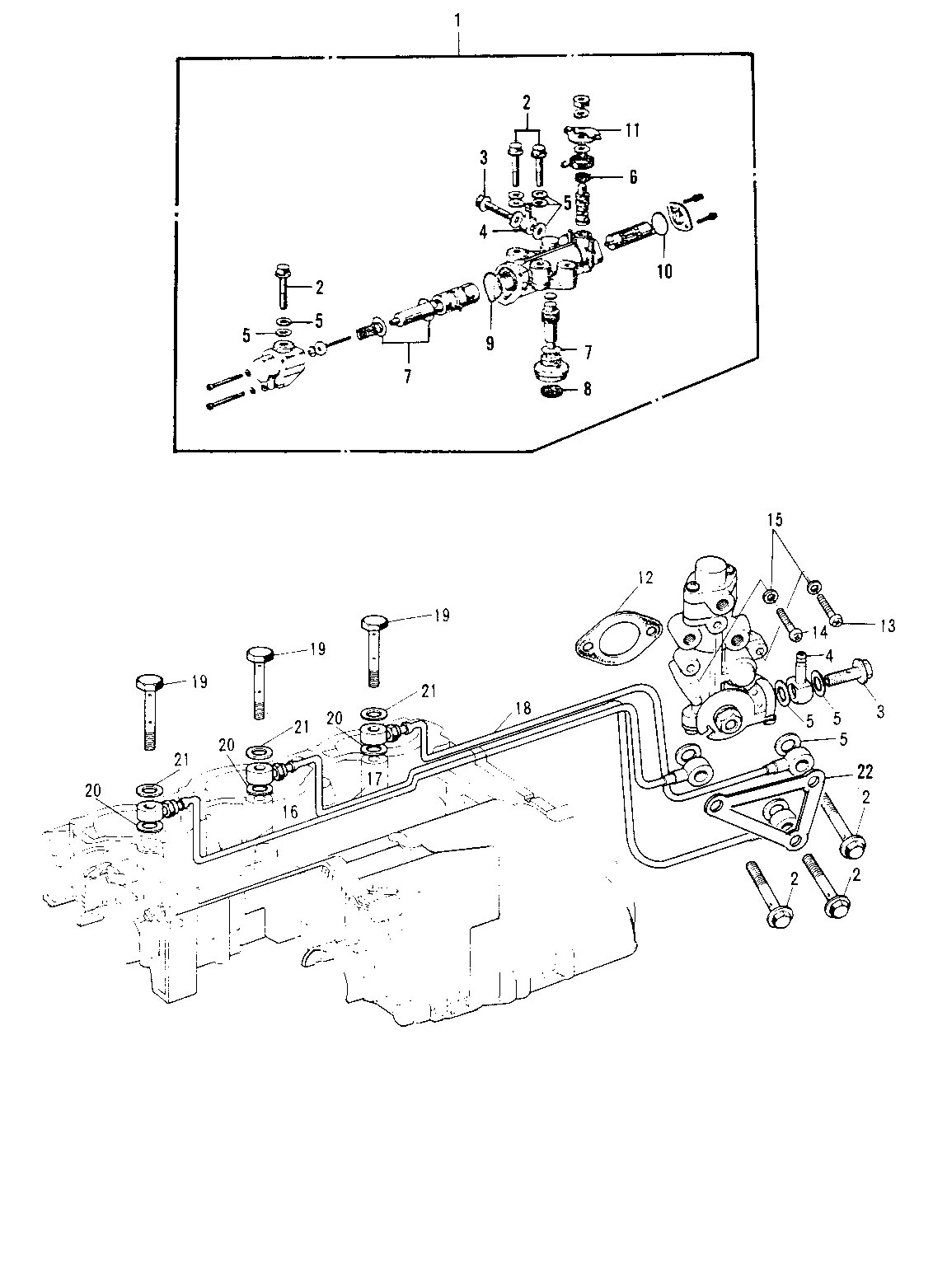

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| OIL PUMP ASSY | 1 | 16082-041 | |||
| BOLT BANJO | 2 | 92060-008 | |||
| BOLT BANJO | 3 | 92060-009 | |||
| CONNECTOR BANJO | 4 | 92061-015 | |||
| WASHER OIL PUMP BANJO | 5 | 92022-077 | |||
| SEAL-OIL,CAMSHAFT,"X" | 6 | 92049-1294 | |||
| "0" RING,OIL PUMP SHT | 7 | 16090-002 | |||
| OIL SEAL OIL PUMP SHT | 8 | 16091-001 | |||
| "0" RING,UPPER CAP | 9 | 16088-002 | |||
| "0" RING,LOWER CAP | 10 | 16090-003 | |||
| LETER,OIL PUMP CABLE | 11 | 16096-011 | |||
| GASKET,OIL PUMP | 12 | 11060-1160 | |||
| SCREW-PAN-CROS | 13 | 220B0514 | |||
| SCREW PAN CROSS,5X28 | 14 | 220B0528 | |||
| WASHER OIL PUMP | 15 | 92022-037 | |||
| PIPE-OIL,L.H | 16 | 16134-012 | |||
| PIPE-OIL,CENTER | 17 | 16134-013 | |||
| PIPE-OIL,R.H | 18 | 16134-014 | |||
| BOLT-BANJO,CR | 19 | 92060-010-79 | |||
| GASKET CHECK VALVE | 20 | 92065-023 | |||
| GASKET CHECK VALVE | 21 | 92065-058 | |||
| WASHER,OIL PUMP LOCK | 22 | 92024-058 |
