Parts Diagrams |

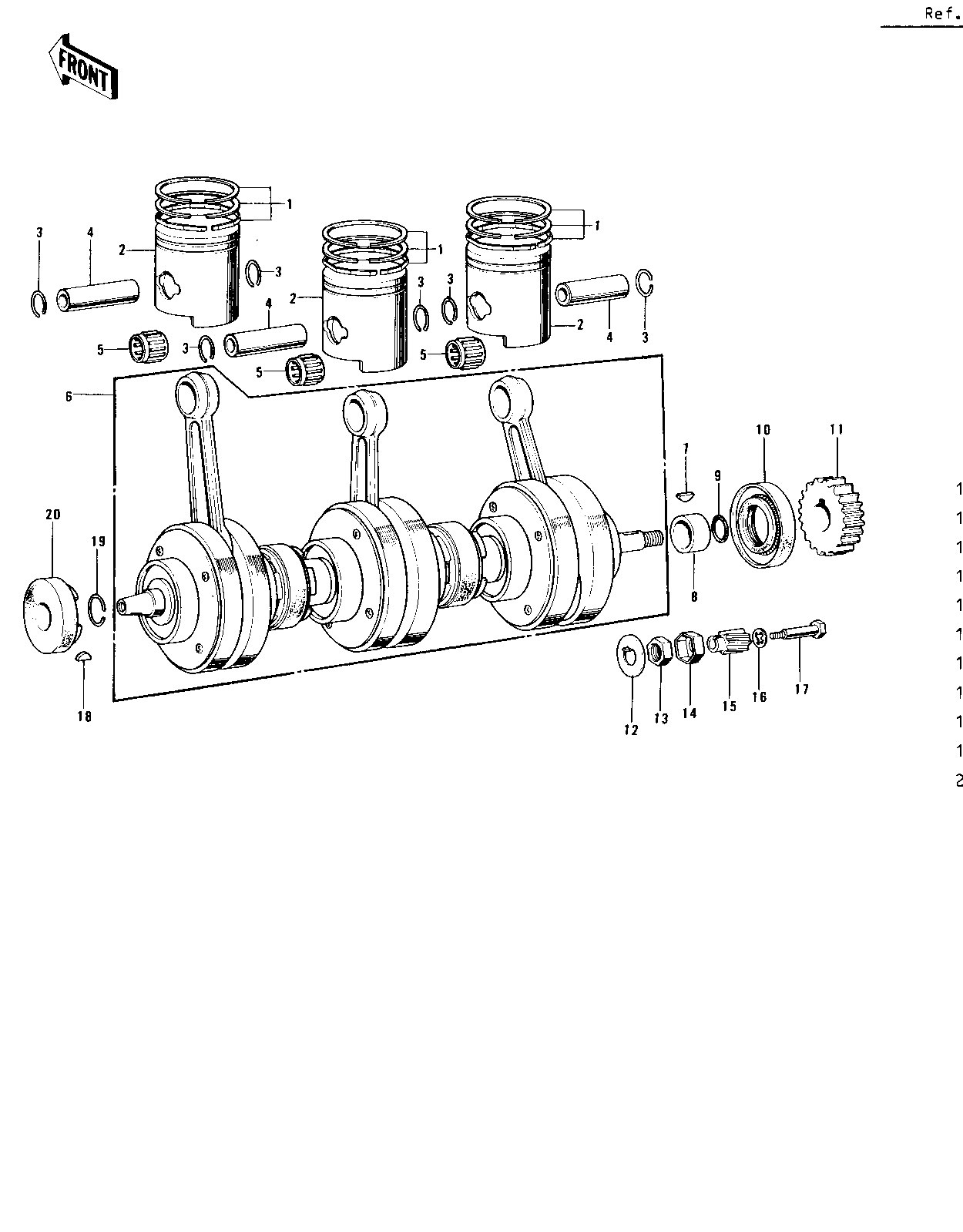

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING SET,STD | 1 | 13008-039 | |||
| RING SET,0.020" O.S | 1 | 13025-043 | |||
| RING SET,0.040" O.S | 1 | 13024-047 | |||
| PISTON,STD | 2 | 13001-043 | |||
| PISTON,0.020' O.S | 2 | 13029-052 | |||
| PISTON,0.040' O.S | 2 | 13027-050 | |||
| CIRCLIP PISTON PIN | 3 | 92036-005 | |||
| PIN-PISTON | 4 | 13002-002 | |||
| NEEDLE BEARING SM END | 5 | 13033-007 | |||
| CRANK CONROD ASSY | 6 | 13031-1008 | |||
| CRANK CONROD ASSY | 6 | 13031-1008 | |||
| WOODRUFF KEY | 7 | 92038-015 | |||
| COLLAR CRANK OIL SEAL | 8 | 92027-031 | |||
| "0" RING,22MM | 9 | 92055-018 | |||
| OIL SEAL,TC326210 | 10 | 92050-052 | |||
| PINION-PRIMARY | 11 | 13121-021 | |||
| WASHER,LOCK,18MM | 12 | 92024-067 | |||
| NUT 18MM | 13 | 92015-019 | |||
| WASHER LOCK | 14 | 92024-021 | |||
| PINION-OIL PUMP | 15 | 16084-014 | |||
| WASHER LOCK 6MM | 16 | 463H0600 | |||
| BOLT-OIL PUMP GEAR | 17 | 92003-068 | |||
| WOODRUFF KEY | 18 | 92038-001 | |||
| CIRCLIP | 19 | 92036-013 | |||
| OIL SEAL TCY256210 | 20 | 92050-041 |
