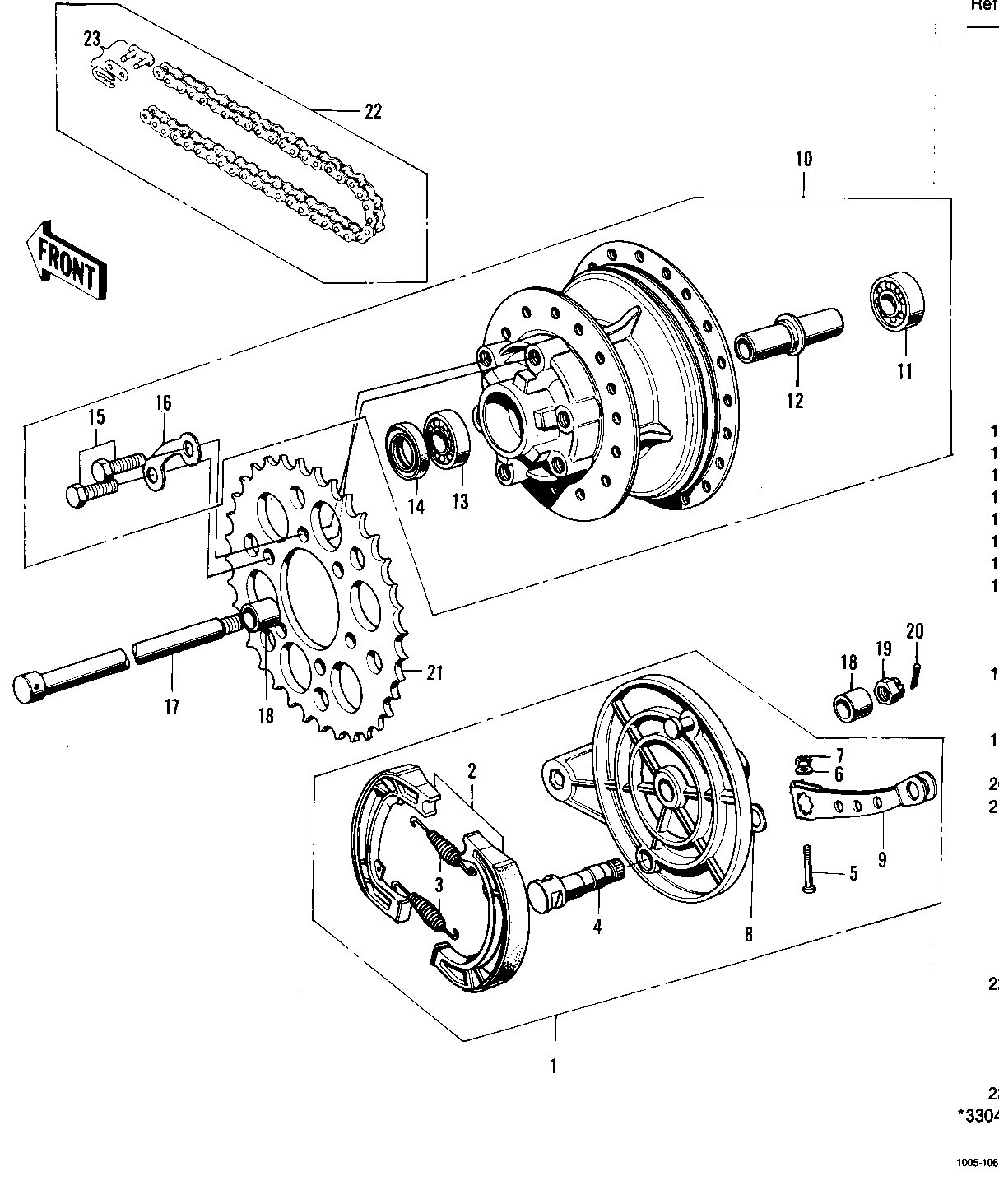

Parts Diagrams

Parts Diagrams

Part Item Information

ITEM NAME	REF #	PART NUMBER	QUANTITY	DESTINATION	REMARKS
PANEL-ASY,RR BRK,BLK	1	42006-016-21	1
PANEL-ASY,RR BRK,BLK	1	42006-016-21	1
.SHOE,BRAKE	2	42019-011	2
SHOE,BRAKE	2	42019-011	2
.SPRING-BRAKE SHOE	3	42020-004	2
.CAM SHAFT,REAR BRAKE	4	42026-021	1
CAM SHAFT,REAR BRAKE	4	42026-021	1
.BOLT-UPSET,6X40	5	112G0640	1
.WASHER PLAIN 6MM	6	410B0600	1
.NUT 6MM	7	311B0600	1
.DUST SHIELD BRAKE CAM	8	41051-001	1
.LEVER,REAR BRAKE CAM	9	42029-037	1
LEVER,REAR BRAKE CAM	9	42029-037	1
DRUM ASSY-REAR BRAKE	10	42005-019	1
.BEARING BALL #6303Z	11	601B6303Z	1
.SPACER-RR HUB BEARING	12	42010-015	1		L=116 MM
.BEARING BALL #6303	13	601B6303	1
.OIL SEAL FRONT AXLE	14	654A254708	1
BOLT-HEX HEAD,10X25	15	92001-087	6
WASHER LOCK	16	92088-007	3
AXLE-REAR	17	42031-030	1		F5
AXLE-REAR	17	42031-030	1		F5-A
AXLE-REAR	17	42031-036	AL
COLLAR-REAR AXLE	18	42032-020	AL		F5, USE W/33040-033
COLLAR-REAR AXLE	18	42032-020	AL		F5, USE W/33040-033
COLLAR-REAR AXLE	18	42032-031	AL		F9 USE W/33040-043
COLLAR-REAR AXLE	18	42032-031	AL		F9 USE W/33040-043
NUT CASTLE 16M/M	19	42045-014	1
NUT CASTLE 16M/M	19	42045-014	AL
PIN-COTTER,4.0X35	20	550D4035	1
REAR SPROCKET 41T (ALUMINUM)	21	42041-080	1		STD
REAR SPROCKET,41T (STEEL)	21	42041-111	AL
REAR SPROCKET,43T (ALUMINUM)	21	42041-089	(1		OPTION
REAR SPROCKET,43T (STEEL)	21	42041-112	(A
REAR SPROCKET,45T (ALUMINUM)	21	42041-088	(1		OPTION
REAR SPROCKET,45T (STEEL)	21	42041-113	(A
RR SPROCKET 47T (OPT) (ALUMINUM)	21	42041-090	(1		OPTION
REAR SPROCKET,47T (STEEL)	21	42041-114	(A
DR CHAIN 525X92H	22	695X5292	1		F5~F/NO 03245
DR CHAIN 525X92H	22	695X5292	AL		SPECIAL GREASE
UNAVAILABLE IN PRICE BOOK	22	695Z5294	1		F/NO 03246~
CHAIN,525X94 SH	22	92057-029	AL		SPECIAL GREASE
CHAIN JOINT 525	23	92058-006	1
