Parts Diagrams |

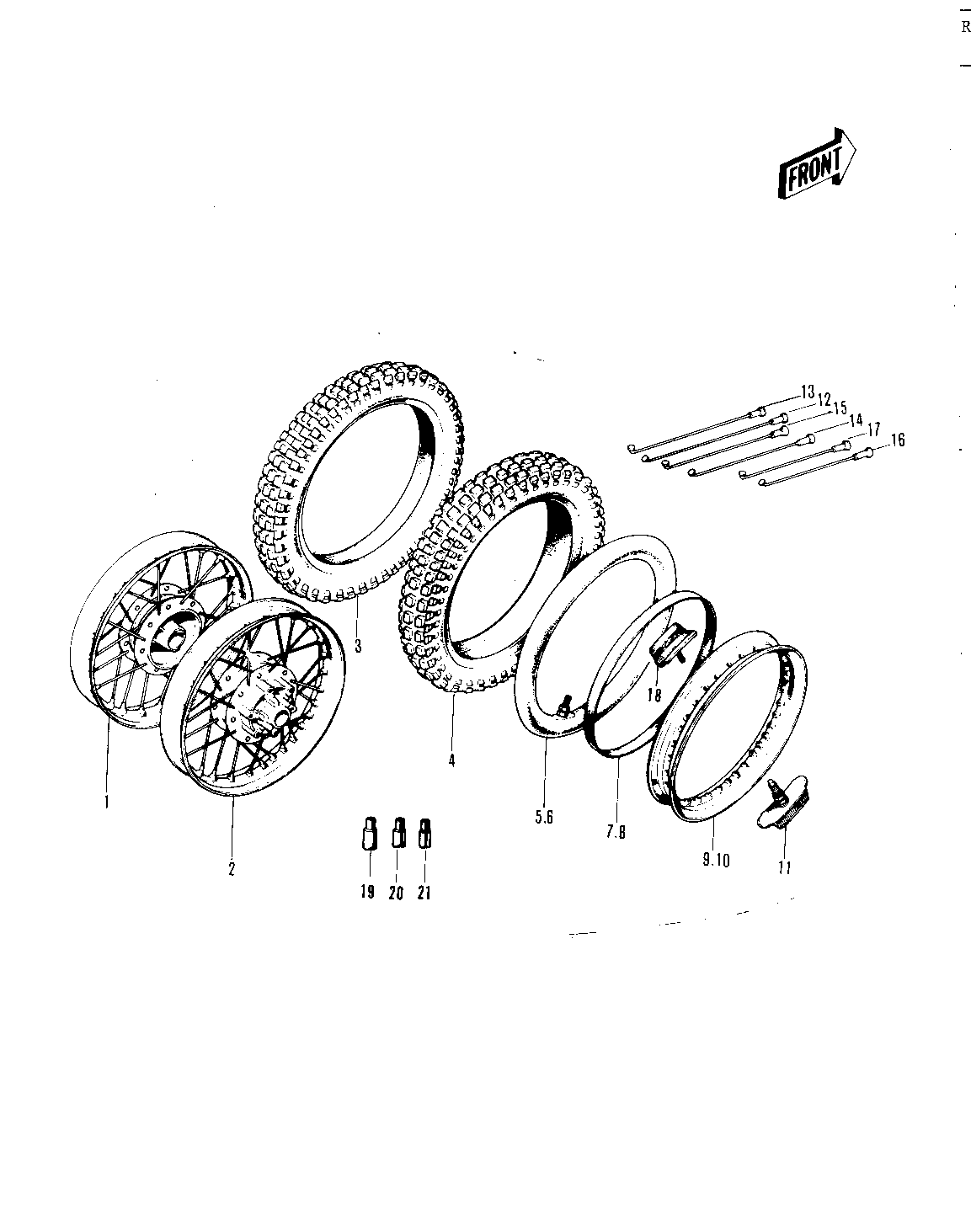

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WHEEL ASSY-FRONT | 1 | 41074-016 | 1 | 1.60A X 21 | |
| WHEEL ASSY-REAR | 2 | 42048-012 | 1 | 1.85B X 18 | |
| UNAVAILABLE IN PRICE BOOK | 3 | 41019-008 | 1 | FRONT | |
| UNAVAILABLE IN PRICE BOOK | 4 | 41019-002 | 1 | REAR | |
| TUBE,2.75/3.70-21 | 5 | 41022-1021 | 1 | FRONT | |
| UNAVAILABLE IN PRICE BOOK | 6 | 41022-024 | 1 | REAR | |
| BAND,RIM,3.00-21 | 7 | 41023-1001 | 1 | FRONT | |
| BAND,RIM,4.00/5.10-18 | 8 | 41023-1006 | 1 | REAR | |
| RIM 1.60AX21 ALUMINUM | 9 | 41025-038 | 1 | FRONT | |
| RIM 1.85BX18 ALUMINUM | 10 | 41025-039 | 1 | REAR | |
| PROTECTOR-BEAD 1.60A | 11 | 41024-006 | 1 | FRONT | |
| SPOKE-ASY,INNER | 12 | 41027-035 | (1 | FRONT | |
| SPOKE-ASY,INNER | 12 | 41027-035 | 18 | FRONT | |
| SPOKE-ASY,OUTER | 13 | 41028-034 | (1 | FRONT | |
| SPOKE-ASY,OUTER | 13 | 41028-034 | 18 | FRONT | |
| SPOKE-ASY,INNER | 14 | 41027-036 | (9 | REAR L.H. | |
| SPOKE-ASY,INNER | 14 | 41027-036 | 9 | REAR L.H. | |
| SPOKE-ASY,OUTER | 15 | 41028-035 | 9 | REAR L.H. | |
| SPOKE-ASY,INNER | 16 | 41027-037 | 9 | REAR R.H. | |
| SPOKE-ASY,OUTER | 17 | 41028-036 | 9 | REAR R.H. | |
| PROTECTOR-BEAD 1.85B | 18 | 41024-007 | 2 | REAR | |
| WEIGHT,BALANCE,30G | 19 | 41075-1009 | AR | ||
| WEIGHT,BALANCE,20G | 20 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,10G | 21 | 41075-1007 | AR |
| WHEEL ASSY-FRONT | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 1.60A X 21 |
| WHEEL ASSY-REAR | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 1.85B X 18 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | REAR |
| TUBE,2.75/3.70-21 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | REAR |
| BAND,RIM,3.00-21 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | REAR |
| RIM 1.60AX21 ALUMINUM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| RIM 1.85BX18 ALUMINUM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | REAR |
| PROTECTOR-BEAD 1.60A | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| SPOKE-ASY,INNER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | FRONT |
| SPOKE-ASY,INNER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | FRONT |
| SPOKE-ASY,OUTER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | FRONT |
| SPOKE-ASY,OUTER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | FRONT |
| SPOKE-ASY,INNER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | (9 |
| DESTINATION | |
| REMARKS | REAR L.H. |
| SPOKE-ASY,INNER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | REAR L.H. |
| SPOKE-ASY,OUTER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | REAR L.H. |
| SPOKE-ASY,INNER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | REAR R.H. |
| SPOKE-ASY,OUTER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | REAR R.H. |
| PROTECTOR-BEAD 1.85B | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | REAR |
| WEIGHT,BALANCE,30G | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,20G | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,10G | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
