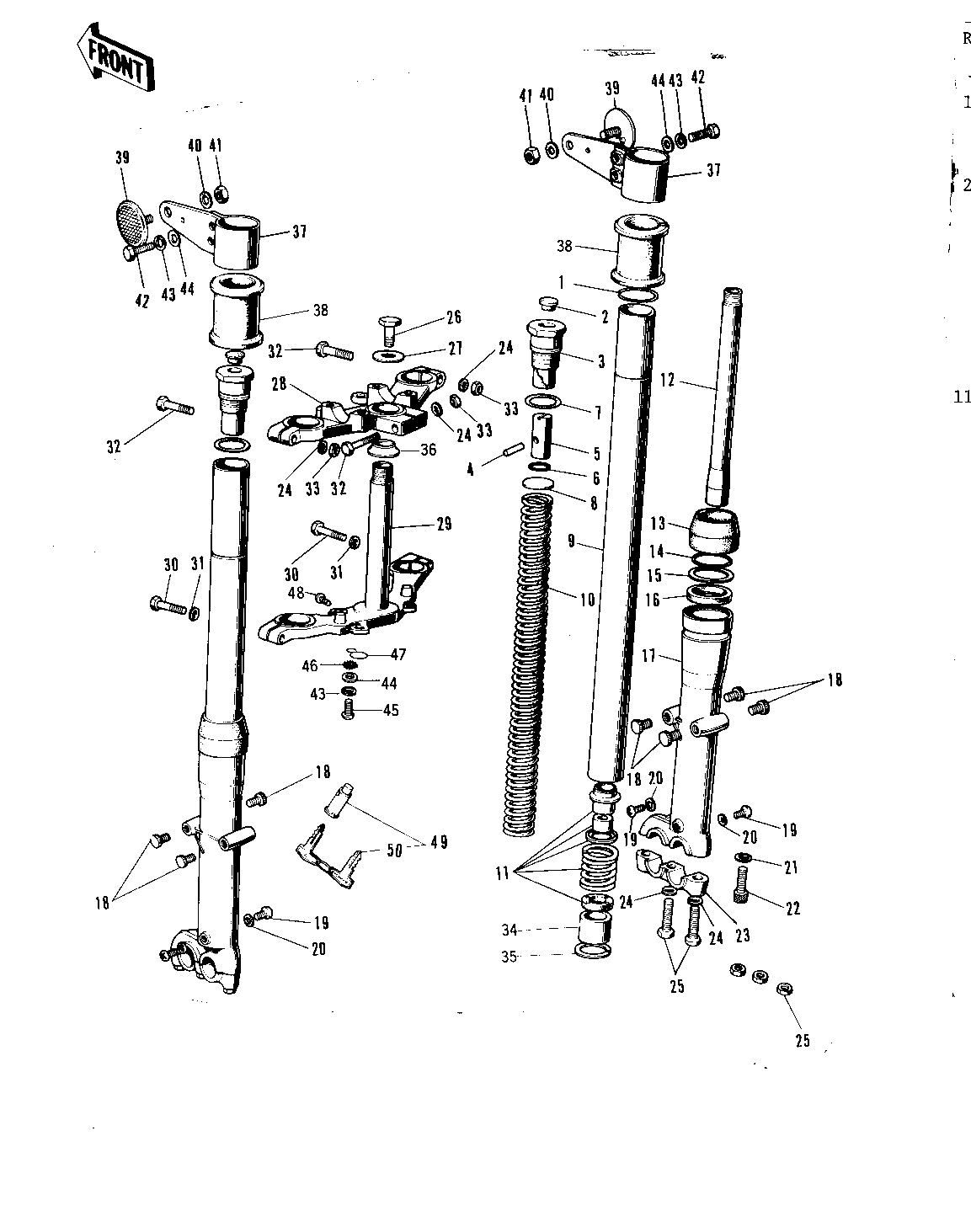

1970 Big Horn - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRONT FORK ASSY 1~35 44001-056 (1
FRONT FORK ASSY 1~35 44001-065 1
CIRCLIP 1 44044-009 2
BOLT-FORK TOP 2~6 44041-030 2
CAP CARB MOUNT HOLE 2 14039-001 2
'O' RING FORK TOP 7 44046-015 2
WASHER-FORK SPRG SEAT 8 44029-015 2
TUBE-FORK INNER 9 44013-022 2
SPRING-FORK 10 44026-028 2
CYLINDER-FORK 11, 12 44022-003 2
DUST SHIELD 13 44010-017 2
CIRCLIP OIL SEAL FIT 14 44044-005 2
WASHER OIL SEAL FIT 15 44043-023 2
OIL SEAL,FORK 16 44009-020 2
TUBE,LH,FORK OUTER 17 44005-030-80 2
CAP 18 44062-002 7
SCREW PAN HEAD 4X8 19 220B0408 4
GASKET FORK DRAIN PLG 20 44045-002 4
GASKET FORK CYL BOLT 21 44045-030 2
BOLT FORK CYLINDER 22 44041-027 2
HOLDER-FRONT AXLE 23 44063-001 2
WASHER SPRING 8MM 24 461F0800 9
BOLT-SMALL-UPSET 25 115B0832 6 F/NO. 4600 AND BELOW
NUT,8MM 25 311B0800 6 F/NO. 4601 AND ABOVE
BOLT STRNG STEM HEAD 26 44041-007 1
WASHER STRNG STEM HD 27 44043-016 1
HEAD-STEERING STEM 28 44039-032 1
STEM-STEERING 29 44037-032 1
BOLT-HEX HEAD,12X36 30 113B1236A 2
WASHER SPRING 12MM 31 461F1200 2
BOLT 32 92001-1578 3
NUT,8MM 33 311B0800 3
PISTON FORK 34 44018-003 2
CIRCLIP FORK PISTON 35 44044-008 2
CONE STERNG BERG LOW 36 92047-010 1
BRACKET-HEAD LAMP 37 23064-001 2
DAMPER RUBBER 38 92075-059 2
REFLECTOR-REFLEX 39 28012-004 2
REFLECTOR REFLEX 39 28001-004 AL
WASHER SPRING 5MM 40 461F0500 2
NUT,5MM 41 311B0500 2
BOLT-UPSET 42 112G0618 4
WASHER SPRING 6MM 43 461F0600 5
WASHER PLAIN 6MM 44 410B0600 5
BOLT-UPSET 6X14 45 112B0614 1
WASHER LOCK 6MM 46 464H0600 1
CLAMP-CABLE 47 92037-046 1
SCREW RIVET 48 92099-001 1
LOCK ASSY,STEERING 49 27016-5025 1
KEY SET NO.235 50 27008-034-35 1 REF. GRID F4, #14
KEY SET NO.236 50 27008-034-36 1 FOR KEY BLANKS
KEY SET NO.237 50 27008-034-37 1
KEY SET NO.238 50 27008-034-38 1
KEY SET NO.239 50 27008-034-39 1
KEY SET NO.321 50 27008-034-21 1
KEY SET NO.322 50 27008-034-22 1
KEY SET NO.323 50 27008-034-23 1
KEY SET NO.324 50 27008-034-24 1
KEY SET NO.140 50 27008-034-40 1
KEY SET NO.141 50 27008-034-41 1
KEY SET NO.142 50 27008-034-42 1
KEY SET NO.143 50 27008-034-43 1
