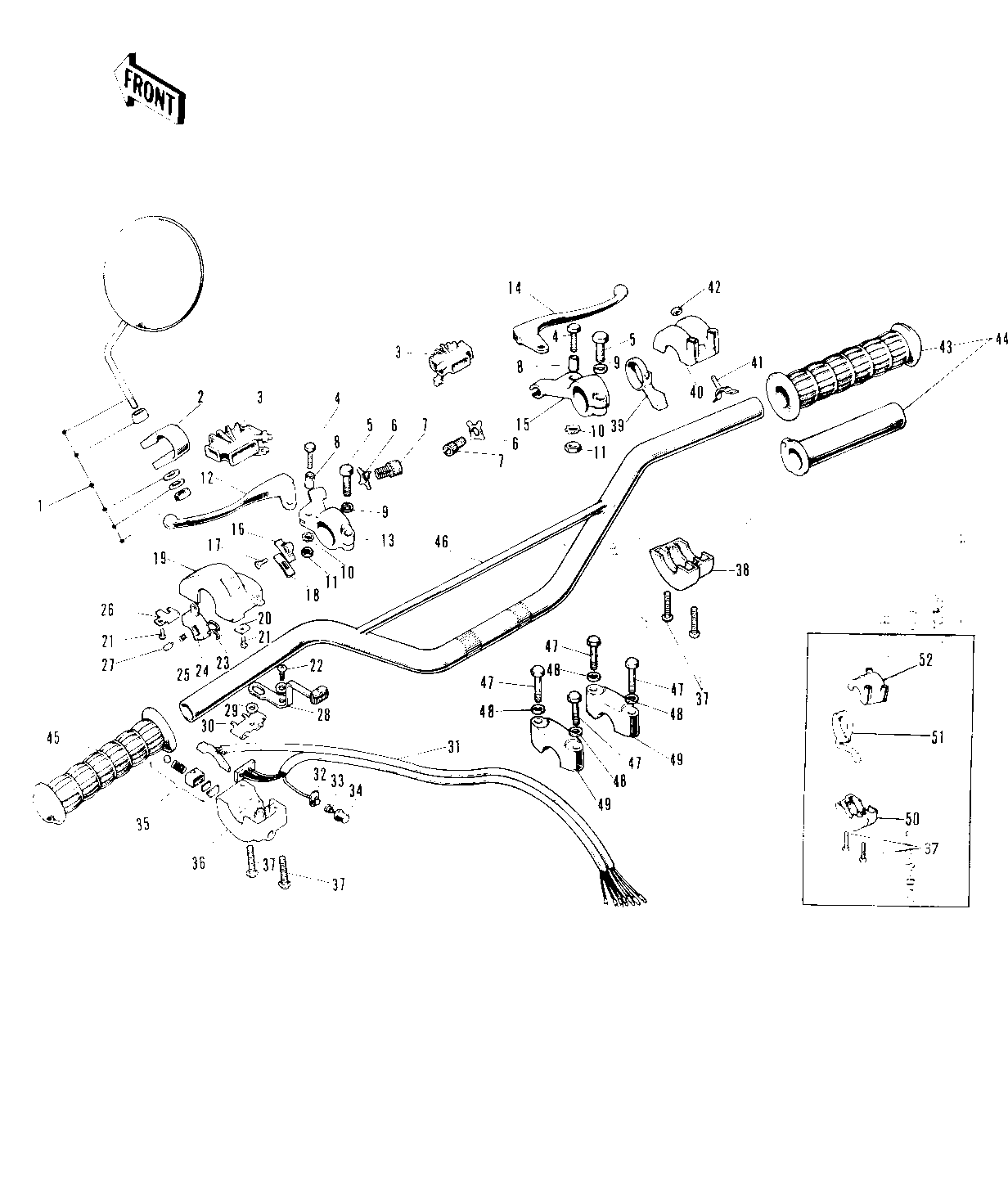

1970 Big Horn - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REAR VIEW MIRROR 1 56001-005 1
BRACKET 2 56006-001 1
LEVER ASSY-CLUTCH 3~13 46076-014 1
DUST COVER 3 46071-001 2
BOLT HEX HEAD 5X20 4 92007-020 2
BOLT-UPSET 5 112N0620 2
NUT LOCK ADJUST SCREW 6 46056-001 2
SCREW CABLE ADJUST 7 46055-003 2
COLLAR LEVER 8 46059-011 2
WASHER PLAIN 6MM 9 410B0600 2
WASHER LOCK 5MM 10 464H0500 2
NUT 5MM 11 312B0500 2
LEVER-CLUTCH 12 46092-015 1
HOLDER,CLUTCH LEVER 13 46094-010 1
LEVER ASSY-FRNT BRAKE 14, 15 46021-010 1
LEVER FRONT BRAKE 14 46058-004 1
HOLDER-FR BRAKE LEVER 15 46060-006 1
CASE ASSY-L.H 16~37 46091-004 1
KNOB-L.H SWITCH 16 46044-011 1
SCREW CNTSNK HD 3X8 17 221B0308A 1
SPRING L.H SW KNOB 18 46031-003 1
CASE L.H SWITCH UPPER 19 46086-013 1
HOLDER L.H SW UPPER A 20 46085-013 1
SCREW PAN HEAD 3X5 21 220B0305A 2
SCREW PAN HEAD 3X8 22 220B0308 1
PLATE L.H SW CONTACT 23 46080-002 2
SWITCH L.H 24 46089-003 1
SPRING L.H SWITCH 25 46031-004 1
HOLDER L.H SW LOWER B 26 46085-014 1
CONTACT L.H SWITCH 27 46079-002 1
KNOB-SWITCH 28 46044-006 1
WASHER 29 92095-010 2
HOLDER L.H SW LOWER 30 46085-015 1
WIRING HARNESS-L.H SW 31 46082-017 1
SWITCH ASSY,HORN BUTN 32 27010-1009 1
SWITCH ASSY,HORN BUTN 33 27010-1009 1
SWITCH ASSY,HORN BUTN 34 27010-1009 1
SLIDE BLOCK AY-L.H SW 35 46089-004 1
CASE L.H SWITCH LOWER 36 46077-015 1
CASE ASSY-R.H 37~44 46018-019 (1
SCREW PAN HEAD 5X22 37 220B0522 4
CASE-R.H LOWER 38 46023-005 (1
LEVER-STARTER 39 46096-006 (1
CASE-R.H.UPPER 40 46041-005 (1
SPRING THROTTLE GRIP 41 46024-002 1
NUT 5MM 42 312B0500 1
RUBBER-R.H GRIP 43 46061-012 1
GRIP ASSY-THROTTLE 44 46019-013 1
RUBBER-L.H GRIP 45 46075-017 1
HANDLEBAR 46 46004-012 1 H=86 M/M
BOLT 8X38 47 92001-1405 4
WASHER SPRING 8MM 48 461F0800 4
HOLDER HANDLEBAR 49 46012-003 2
CASE ASSY-R.H 50~52 46018-019 1
CASE-R.H LOWER 50 46023-005 1
LEVER-STARTER 51 46096-006 1
CASE-R.H.UPPER 52 46041-005 1
