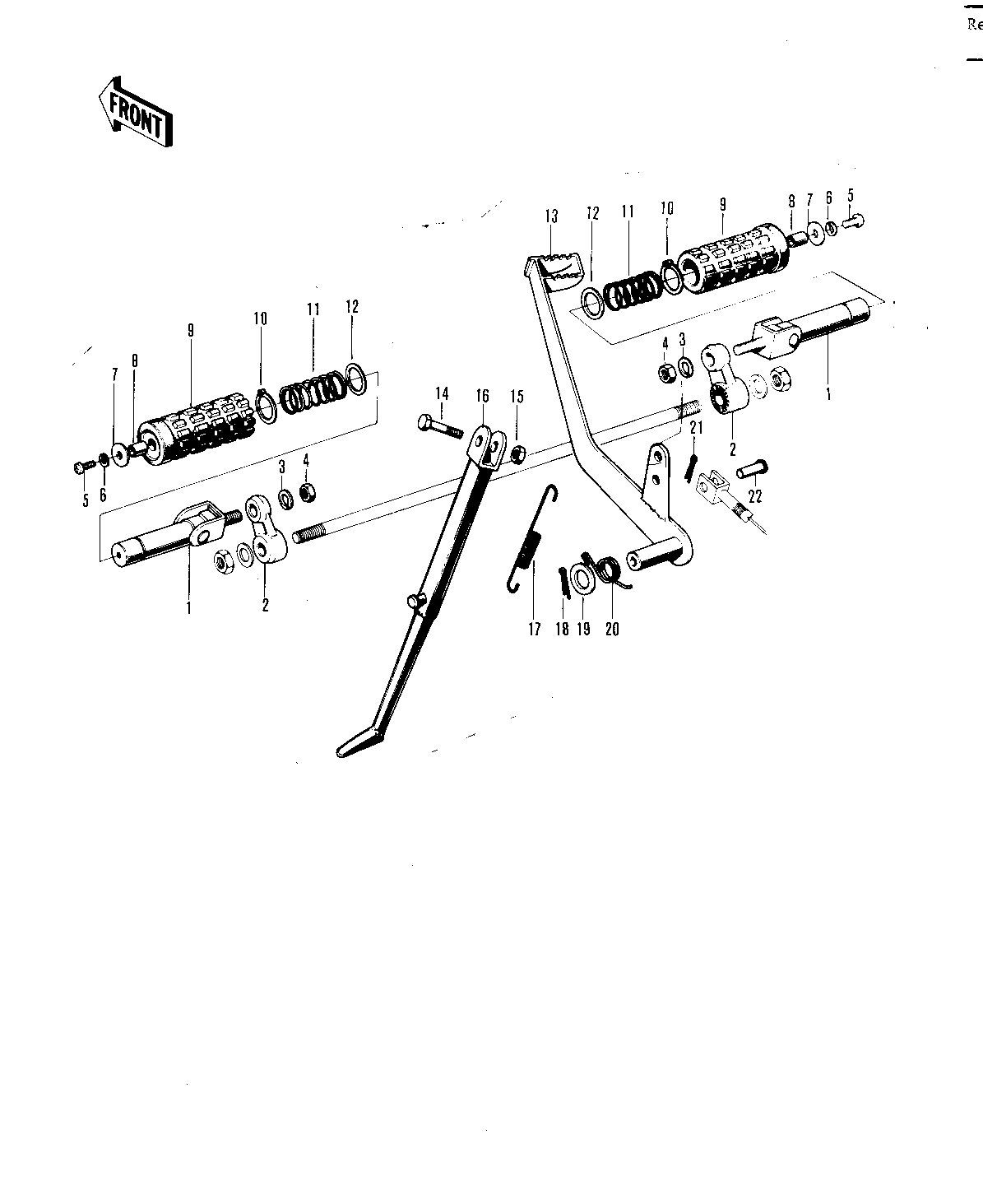

1970 Big Horn - FOOTRESTS/STAND/BRAKE PEDAL
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BAR ASSY,FOOTREST | 1 | 34002-051 | 2 | D=10 | |
| BAR ASSY,FOOTREST | 2 | 34002-051 | 2 | D=10 | |
| WASHER SPRING 10MM | 3 | 461F1000 | 2 | NOT REQUIRED FOR 92019-009 | |
| NUT 10MM | 4 | 315B1000 | 2 | ||
| BOLT-UPSET | 5 | 112G0618 | 2 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 2 | ||
| WASHER 6.5X20X1.6T | 7 | 92022-125 | 2 | ||
| COLLAR | 8 | 92027-103 | 2 | ||
| RUBBER-FOOTREST | 9 | 92076-023 | 2 | ||
| CIRCLIP 16MM | 10 | 480J1600 | 2 | ||
| SPRING FOOTREST PEG | 11 | 34006-002 | 2 | ||
| WASHER FOLDING PEG | 12 | 92022-049 | 2 | ||
| PEDAL-BRAKE | 13 | 43001-033 | 1 | ||
| BOLT,HEX HEAD 10X35 | 14 | 92001-1252 | 1 | ||
| NUT 10MM | 15 | 315B1000 | 1 | ||
| STAND-SIDE | 16 | 34024-025 | 1 | ||
| SPRING MAIN STAND | 17 | 34023-005 | 1 | ||
| PIN COTTER 3.0X30 | 18 | 550D3030 | 1 | ||
| WASHER BRAKE PEDAL | 19 | 92022-085 | 1 | ||
| SPRING-BRAKE PEDAL | 20 | 43005-013 | 1 | ||
| PIN COTTER 2.0X15 | 21 | 550D2015 | 1 | ||
| PIN R BRK CABLE JOINT | 22 | 92043-034 | 1 |
| BAR ASSY,FOOTREST | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | D=10 |
| BAR ASSY,FOOTREST | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | D=10 |
| WASHER SPRING 10MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | NOT REQUIRED FOR 92019-009 |
| NUT 10MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RUBBER-FOOTREST | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 16MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING FOOTREST PEG | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER FOLDING PEG | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PEDAL-BRAKE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD 10X35 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAND-SIDE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING MAIN STAND | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 3.0X30 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER BRAKE PEDAL | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE PEDAL | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.0X15 | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN R BRK CABLE JOINT | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
