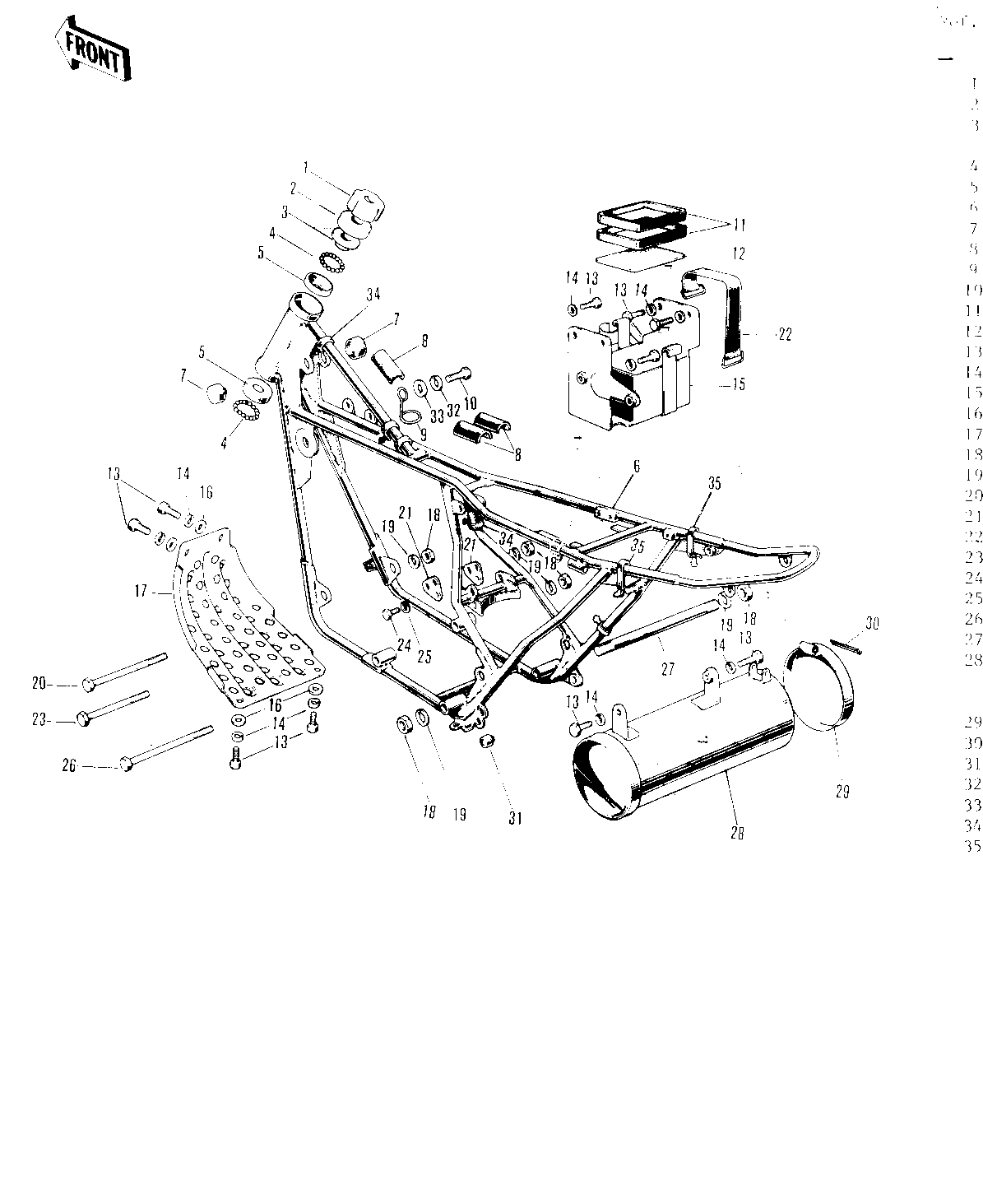

1970 Big Horn - FRAME/FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT STEERING STEM LCK 1 92090-006 1
CAP STEERING STEM 2 46098-005 1
CONE STERNG BERG UPP 3 92047-003 1
BALL STEEL 1/4' 4 600A0800 38
RACE STEERING BEARING 5 92048-005 2
FRAME 6 32002-032 1
DAMPER RUBB FUEL TANK 7 92075-050 2
MAT FUEL TANK 8 51067-002 3
CLAMP 9 92037-108 1
BOLT,6X10 10 112G0610 1
PROTECTOR-BATTERY 11 32103-018 2
MAT-BATTERY 12 32103-017 1
BOLT-UPSET,6X12 13 112G0612 10
WASHER SPRING 6MM 14 461F0600 10
CASE-BATTERY 15 32097-016 1
WASHER 6.5X20X1.6T 16 92022-125 4
GUARD-ENGINE 17 55011-011 1
NUT-HEX-FINE 18 314B1200 5
WASHER SPRING 12MM 19 461F1200 5
BOLT-HEX HEAD,12X163 20 113B12163A 1
PLATE-ENGINE MOUNT 21 32030-020 2
BAND TOOL 22 92072-012 1
BOLT-HEX HEAD,12X151 23 113B12151A 1
BOLT,8X20 24 115G0820 4
WASHER SPRING 8MM 25 461F0800 4
BOLT HEX HEAD 12X254 26 113B12254A 1
STUD 27 92006-002 1
BOX-TOOL 28 32098-012 (1 L=200 M/M
BOX-TOOL 28 32098-014 1 L=187 M/M
CAP-TOOL CASE 29 32099-005 1
PIN COTTER 2.0X30 30 550D2030 1
PLUG RUBBER 31 92074-005 1
WASHER SPRING 6MM 32 461F0600 1
WASHER PLAIN 6MM 33 410B0600 1
BAND RUBBER 34 92072-013 6
BAND RUBBER 35 92072-018 3
