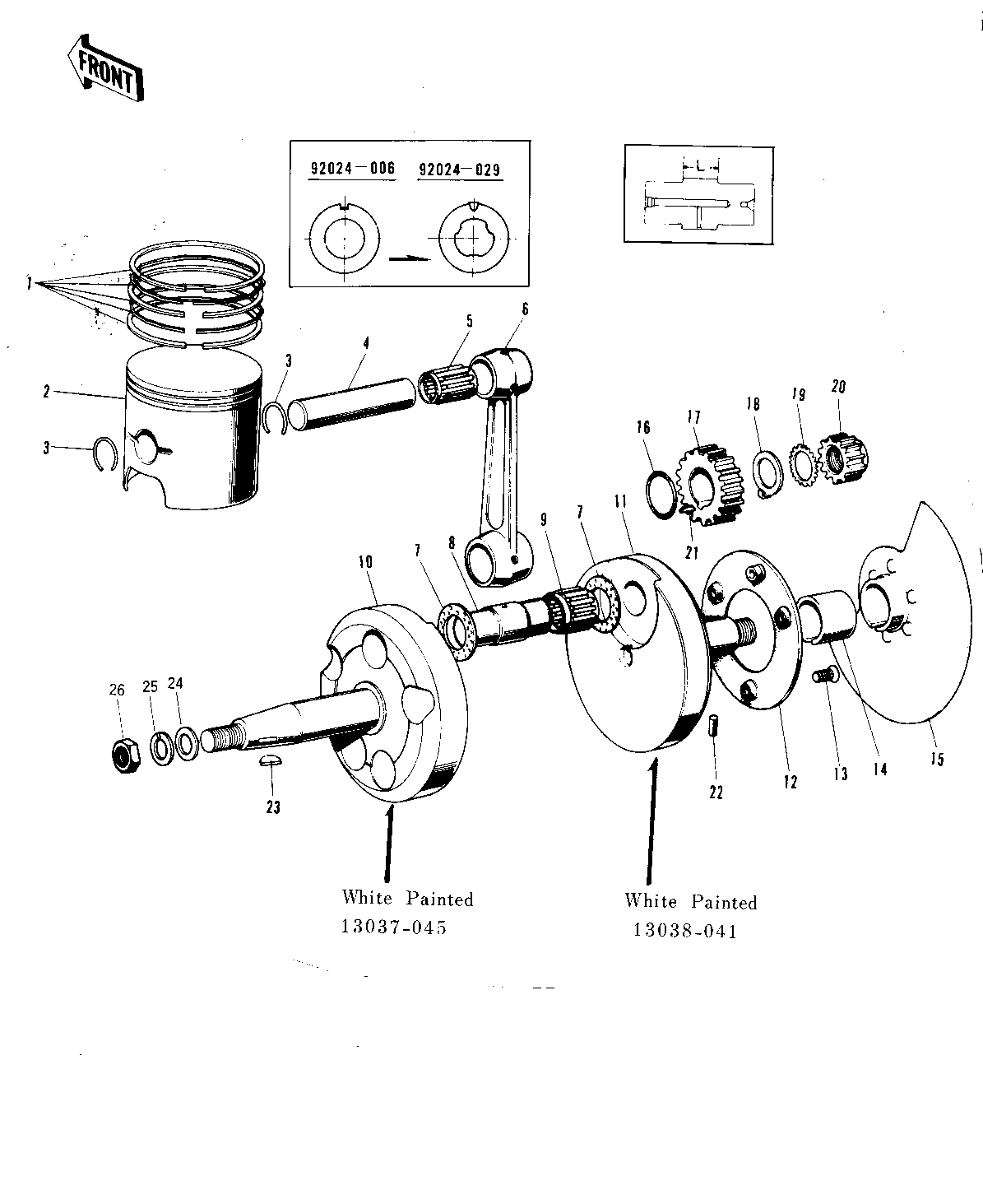

1970 Big Horn - CRANKSHAFT/PISTON/ROTARY VALVE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING SET,STD | 1 | 13008-024 | 1 | ||
| PISTON,STD | 2 | 13001-039 | 1 | ||
| CIRCLIP-PISTON PIN | 3 | 92036-015 | 2 | ||
| PIN-PISTON | 4 | 13002-016 | 1 | ||
| BEARING-SMALL END | 5 | 13033-1010 | 1 | KBK182223.8* | |
| CONNECTING ROD SET | 6~9 | 13044-009 | 1 | ||
| CRANK&CONROD ASSY | 6~13 | 13036-036 | 1 | E/NO. 07269 | |
| WASHER-PLAIN | 7 | 92026-065 | 2 | ||
| CRANK PIN | 8 | 13035-021 | 1 | ||
| NEEDLE BRG-BIG END | 9 | 13034-032 | 1 | PK 293817.8* | |
| CRANKSHAFT L.H | 10 | 13037-035 | 1 | ||
| CRANKSHAFT-R.H | 11 | 13038-031 | 1 | ||
| HOLDER-CRANKSHAFT OIL | 12 | 13045-006 | 1 | ||
| SCREW OVL CNTSNK 5X10 | 13 | 92012-002 | 3 | ||
| CALLAR-CRANKSHAFT | 14 | 92027-097 | 1 | ||
| VALVE-ROTARY DISC | 15 | 12001-020 | 1 | ||
| "0" RING,22MM | 16 | 670B3022 | 1 | ||
| GEAR,PRIMARY 22T | 17 | 13097-1040 | 1 | ||
| WASHER,LOCK,18MM | 18 | 92024-067 | (1 | ||
| WASHER-LOCK,18MM | 18 | 92024-029 | 1 | ||
| WASHER-LOCK,18MM | 19 | 464G1800 | 1 | NOT REQUIRED | |
| PINION-OIL PUMP | 20 | 16084-011 | 1 | ||
| WOODRUFF KEY | 21 | 510A5100 | 1 | ||
| PIN DOWEL 4X12 | 22 | 610A0412 | 1 | ||
| WOODRUFF KEY | 23 | 92038-001 | 1 | ||
| WASHER-PLAIN,14MM | 24 | 92022-172 | 1 | ||
| WASHER SPRING 14MM | 25 | 461F1400 | 1 | ||
| NUT 14MM | 26 | 92015-043 | 1 |
