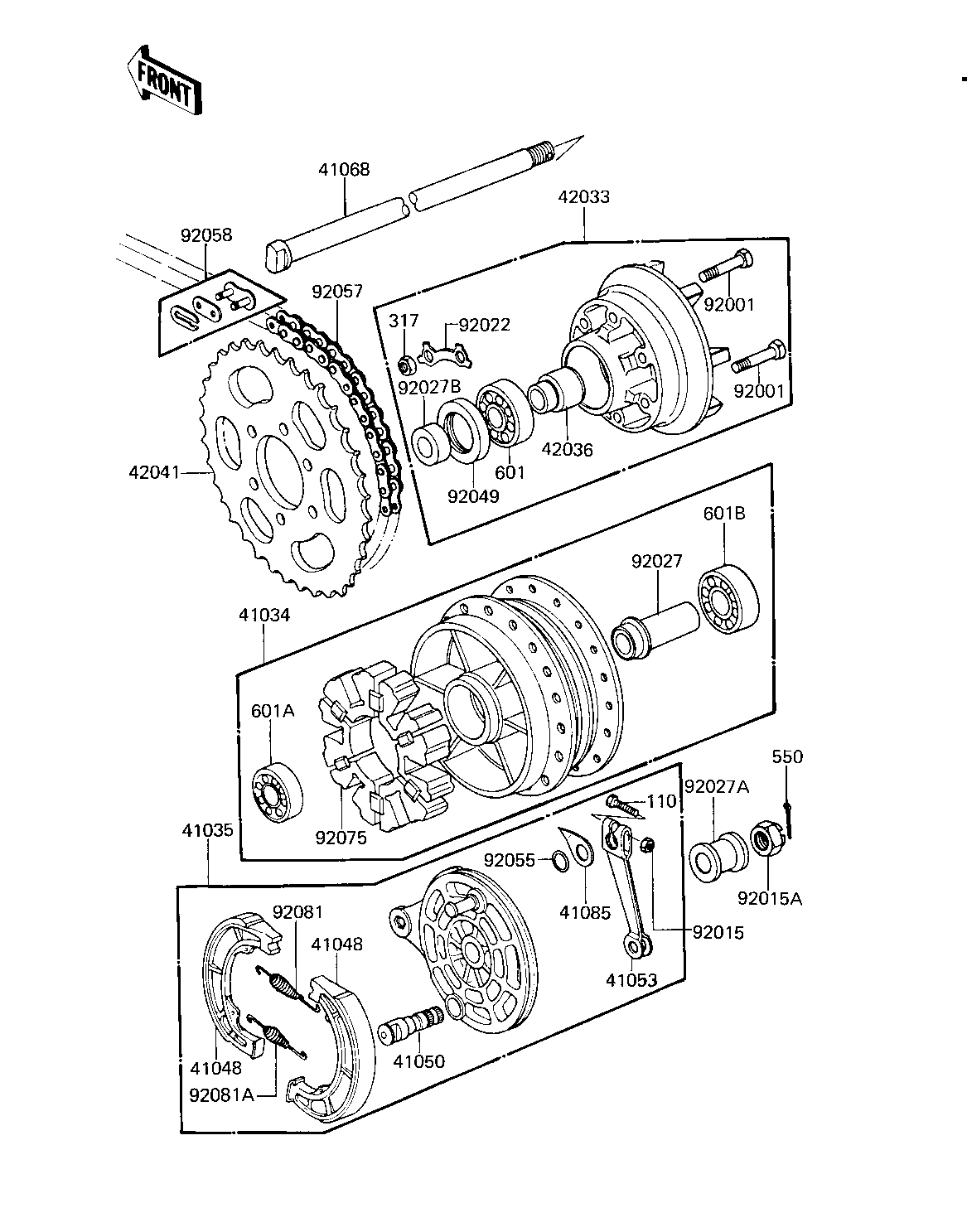

1981 CSR - REAR HUB/BRAKE/CHAIN ('81 D2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM ASSY,REAR | 41034 | 42005-057 | 1 | ||
| RR BRAKE PANEL ASSY | 41035 | 41035-1090 | 1 | ||
| SHOE,BRAKE | 41048 | 42019-010 | 2 | ||
| CAM SHAFT,REAR BRAKE | 41050 | 42026-026 | 1 | ||
| LEVER,FRONT BRAKE CAM | 41053 | 41053-002 | 1 | ||
| AXLE,REAR | 41068 | 42031-059 | 1 | ||
| INDICATOR,FR BK SHOE | 41085 | 41085-013 | 1 | ||
| COUPLING-ASSY,RR HUB | 42033 | 42033-1029 | 1 | ||
| SLEEVE,REAR HUB COUPR | 42036 | 42036-031 | 1 | ||
| REAR.SPROCKET 37T | 42041 | 42041-1042 | 1 | ||
| BOLT REAR SPROCKET | 92001 | 92001-021 | 6 | ||
| NUT,6MM | 92015 | 41072-007 | 1 | ||
| NUT,14MM | 92015A | 42045-020 | 1 | ||
| WASHER,SPROCKET LOCK | 92022 | 92088-019 | 3 | ||
| SPACER,REAR HUB BEARG | 92027 | 42010-037 | 1 | ||
| COLLAR,REAR AXLE | 92027A | 42032-076 | 1 | ||
| COLLAR,REAR HUB COUPR | 92027B | 42037-029 | 1 | ||
| OIL SEAL,RR HUB BRNG | 92049 | 92050-060 | 1 | ||
| "0" RING,11MM | 92055 | 92055-004 | 1 | ||
| DR CHAIN 520X100L | 92057 | 92057-1034 | 1 | ||
| CHAIN JOINT 520 | 92058 | 92058-1001 | 1 | ||
| SHOCK DAMPER,REAR HUB | 92075 | 42014-030 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1766 | 1 | ||
| SPRING,BRAKE SHOE | 92081A | 92081-1550 | 1 | ||
| BOLT-UPSET | 110 | 112G0630 | 1 | ||
| NUT,8M/M | 317 | 317B0800 | 6 | ||
| PIN COTTER 3.0X25 | 550 | 550D3025 | 1 | ||
| BEARING BALL #6004 | 601 | 601B6004 | 1 | ||
| BEARING BALL #6202 | 601A | 601B6202 | 1 | ||
| BEARING BALL #6302Z | 601B | 601B6302Z | 1 |
| DRUM ASSY,REAR | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RR BRAKE PANEL ASSY | |
| REF # | 41035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE,BRAKE | |
| REF # | 41048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAM SHAFT,REAR BRAKE | |
| REF # | 41050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,FRONT BRAKE CAM | |
| REF # | 41053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,REAR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INDICATOR,FR BK SHOE | |
| REF # | 41085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING-ASSY,RR HUB | |
| REF # | 42033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,REAR HUB COUPR | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REAR.SPROCKET 37T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT REAR SPROCKET | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPROCKET LOCK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPACER,REAR HUB BEARG | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR AXLE | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR HUB COUPR | |
| REF # | 92027B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,RR HUB BRNG | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,11MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DR CHAIN 520X100L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN JOINT 520 | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCK DAMPER,REAR HUB | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE SHOE | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE SHOE | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 317 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 3.0X25 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6004 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6202 | |
| REF # | 601A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6302Z | |
| REF # | 601B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
