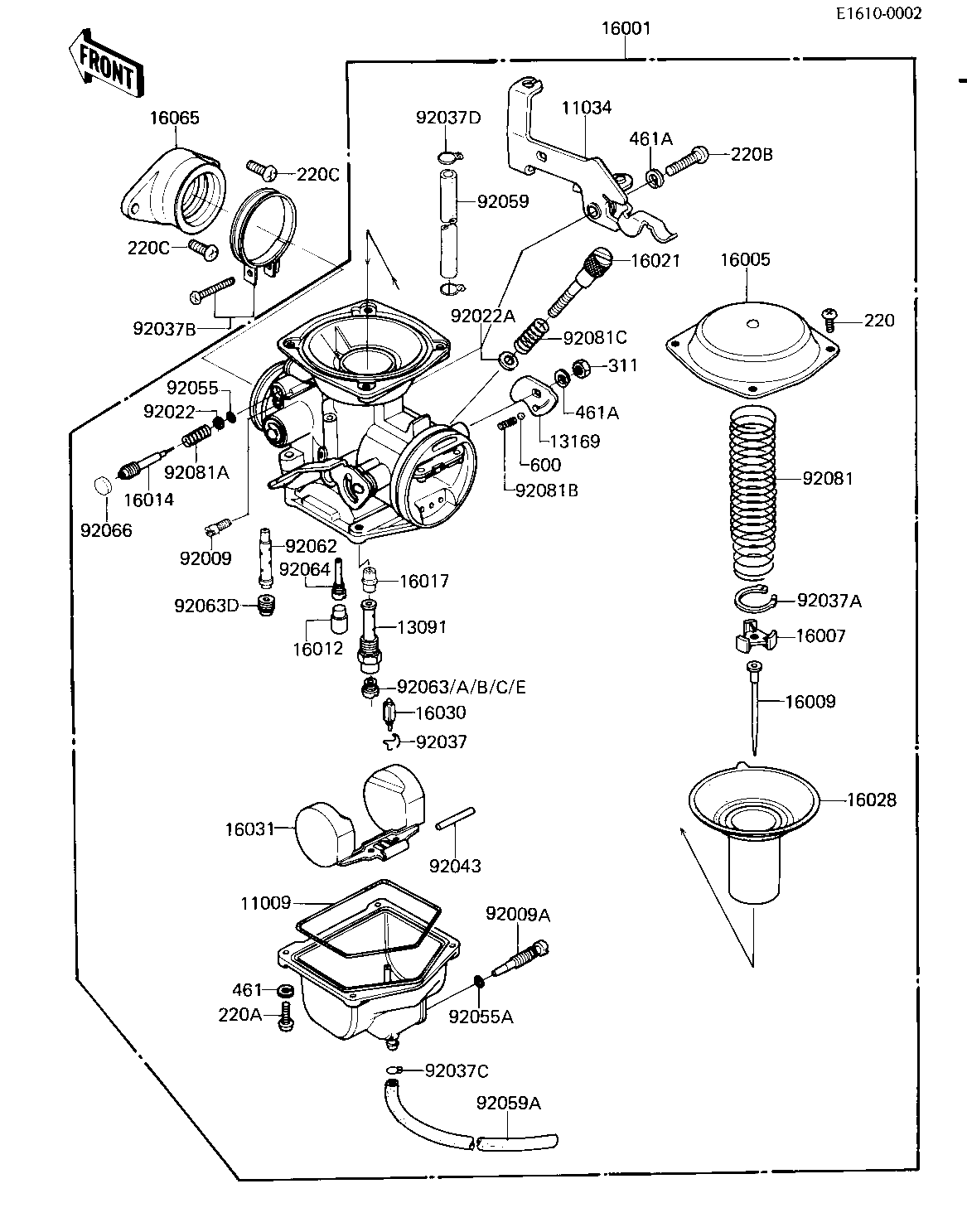

1981 CSR - CARBURETOR ('81 D2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
"O" RING,FLOAT BALL 11009 16019-024 1
PLATE,STAY 11034 11034-1826 1
HOLDER,NEEDLE JET 13091 13091-1050 1
CAM,CHOKE LINK 13169 13169-1303 1
CARBURETOR ASSY 16001 16001-1160 1
TOP,MIXING CHAMBER 16005 16005-1001 1
COLLAR 16007 16007-1001 1
JET NEEDLE,N05A 16009 16009-1054 1
CAP,RUBBER 16012 16012-1001 1
SCREW,PILOT ADJUST 16014 16014-1029 1
NEEDLE JET 16017 16017-1052 1
SCREW,THROTTLE STOP 16021 16021-1031 1
VACUUM,VALVE 16028 16126-1042 1
FLOAT VALVE 16030 16030-1007 1
FLOAT 16031 16031-1001 1
HOLDER,CARBURETOR 16065 16065-1028 1
SCREW,PLUG 92009 92009-1004 1
SCREW,DRAIN 92009A 92009-1095 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,PLAIN 92022A 92022-1209 1
CLIP,FLOAT VALVE 92037 16044-007 1
CIRCLIP 92037A 92037-1005 1
CLAMP,CARBURETOR 92037B 92037-1021 1
CLAMP,TUBE,OVERFLOW 92037C 92037-1142 1
CLAMP,TUBE 92037D 92037-1682 2
FLOAT PIN 92043 92043-1002 1
O RING,PILOT ADJ 92055 92055-1002 1
"O" RING,DRAIN SCREW 92055A 92055-1053 1
HOSE,FUEL INLET 92059 92059-1001 1
HOSE,FUEL OVERFLOW 92059A 92059-1046 1
NOZZLE,MAIN 92062 92062-1001 1
MAIN JET,2ND,#95 92063 92063-1001 1 (RACING USE ONLY)
MAIN JET,#92,2ND 92063A 92063-1004 1 (RACING USE ONLY)
MAIN JET,#2ND,#98 92063B 92063-1005 1
MAIN JET,#100 92063C 92063-1008 1 (RACING USE ONLY)
MAIN JET,PRI,#68 92063D 92063-1050 1
MAIN JET,2ND,#102 92063E 92063-1090 1 (RACING USE ONLY)
PILOT JET,#35 92064 92064-1001 1
PLUG,PILOT SCREW 92066 92066-1051 1
SPRING 92081 92081-1001 1
SPRING,PIROT ADJ SCRW 92081A 92081-1002 1
SPRING 92081B 92081-1004 1
SPRING,STOP SCREW 92081C 92081-1062 1
SCREW PAN HEAD 4X8 220 220B0408 4
SCREW-PAN-CRSOSS,4X12 220A 220B0412 4
SCREW PAN HEAD 5X20 220B 220B0520 1
SCREW PAN HEAD 6X14 220C 220B0614 2
NUT,5MM 311 311B0500 1
WASHER SPRING 4MM 461 461F0400 4
WASHER SPRING 5MM 461A 461F0500 2
BALL,STEEL,1/8" 600 600A0400 1
