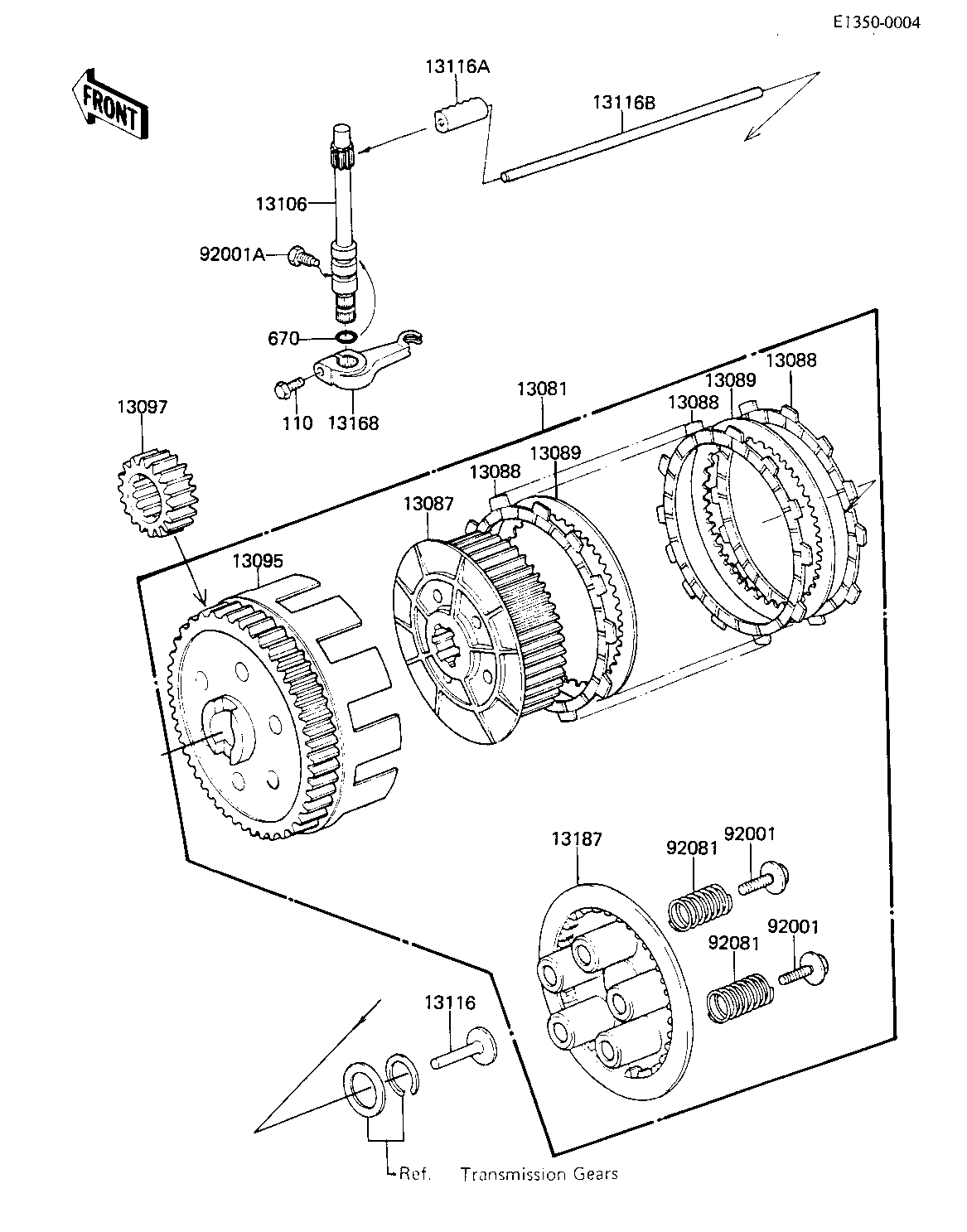

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 13081 | 13081-1046 | 1 | ||
| HUB,CLUTCH | 13087 | 13087-1001 | 1 | ||
| PLATE,CLUTCH FRICTION | 13088 | 13088-1008 | 7 | ||
| PLATE CLUTCH STEEL | 13089 | 13089-013 | 6 | ||
| HOUSING,CLUTCH | 13095 | 13095-1015 | 1 | ||
| GEAR,PRIMARY | 13097 | 13121-035 | 1 | ||
| SHAFT,CLUTCH RELEASE | 13106 | 13106-006 | 1 | ||
| PUSHER-CLTCH SPRG PLT | 13116 | 13116-016 | 1 | ||
| ROD,CLUTCH PUSH | 13116A | 13116-1040 | 1 | ||
| ROD,CLUTCH PUSH,LONG | 13116B | 13116-1002 | 1 | ||
| LEVER,CLUTCH RELEASE | 13168 | 13103-028 | 1 | ||
| PLATE,CLUTCH OPERATNG | 13187 | 13187-1005 | 1 | ||
| BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
| BOLT,CLUTCH RELEASE | 92001A | 92003-130 | 1 | ||
| SPRING-CLUTCH | 92081 | 92081-083 | 5 | ||
| BOLT-UPSET | 110 | 112G0618 | 1 | ||
| "0" RING, 10MM | 670 | 670B2010 | 1 |
| CLUTCH-ASSY | |
| REF # | 13081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| PLATE CLUTCH STEEL | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,PRIMARY | |
| REF # | 13097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,CLUTCH RELEASE | |
| REF # | 13106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUSHER-CLTCH SPRG PLT | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH PUSH | |
| REF # | 13116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH PUSH,LONG | |
| REF # | 13116B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,CLUTCH RELEASE | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH OPERATNG | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH SPR FITT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH RELEASE | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING, 10MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
