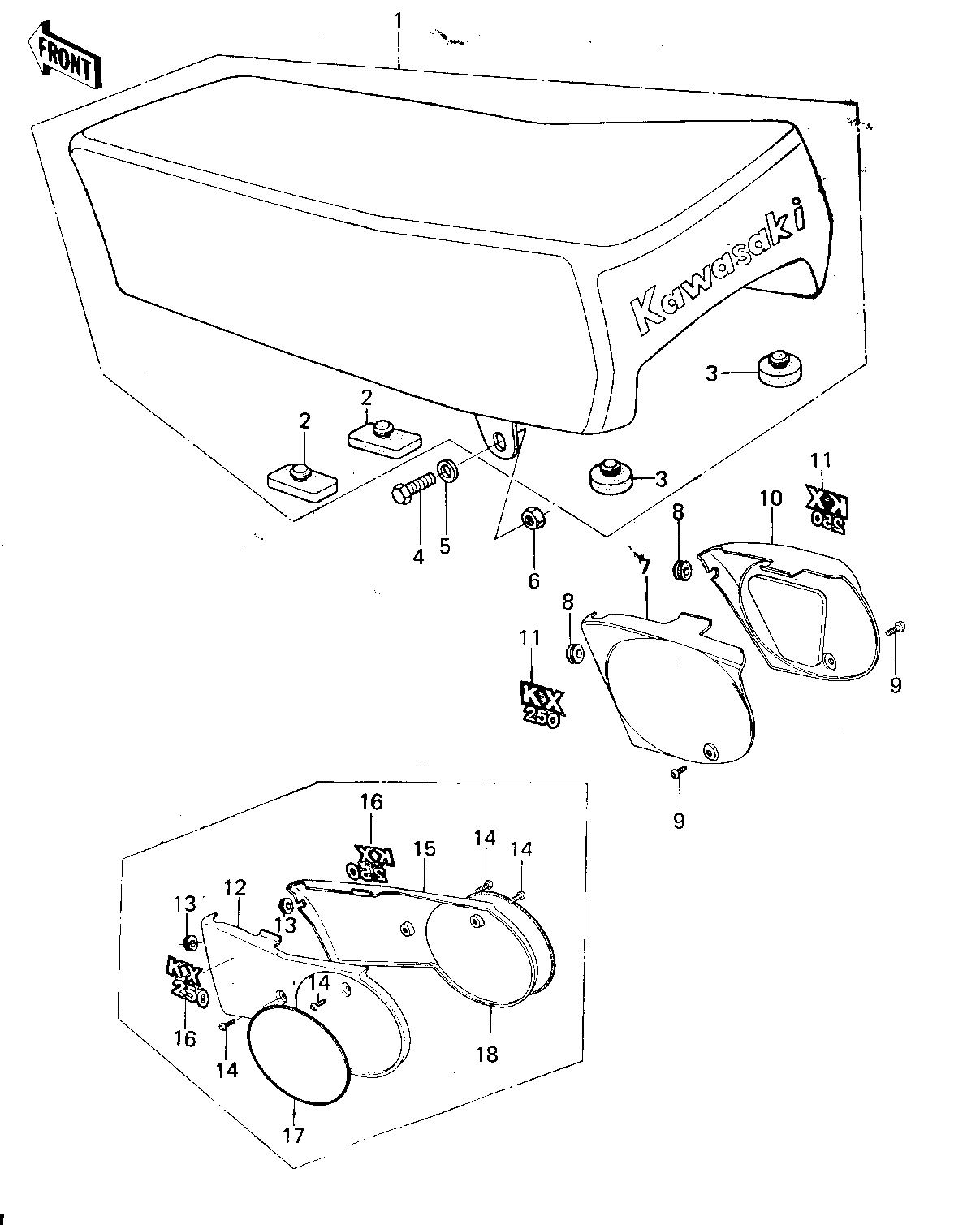

1979 KX250-A5 - SEAT/SIDE COVERS (78-79)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT-ASSY | 1 | 53001-1016 | KX250-A4 | ||
| SEAT-ASSY | 1 | 53001-1029 | KX250-A5+ | ||
| DAMPER RUBBER,SEAT | 2 | 92075-1054 | |||
| DAMPER RUBBER | 3 | 92075-281 | |||
| BOLT-SMALL-UPSET,8X22 | 4 | 115B0822 | |||
| WASHER PLAIN 8MM | 5 | 411B0800 | |||
| NUT,LOCK,8MM | 6 | 92015-1124 | |||
| COVER,L.H SIDE,GREEN | 7 | 36001-1021-6W | KX250-A4 | ||
| DAMPER RUBBER | 8 | 92075-1028 | KX250-A4 | ||
| SCREW,6X14 | 9 | 92009-1287 | KX250-A4 | ||
| COVER,R.H SIDE,GREEN | 10 | 36001-1022-6W | KX250-A4 | ||
| EMBLEM,SIDE COVER | 11 | 56018-1024 | KX250-A4 | ||
| COVER,L.H.SIDE,L.GREN | 12 | 36001-1066-6W | KX250-A5+ | ||
| DAMPER RUBBER | 13 | 92075-1028 | KX250-A5+ | ||
| SCREW,6X14 | 14 | 92009-1287 | KX250-A5+ | ||
| COVER,R.H.SIDE,L.GREN | 15 | 36001-1067-6W | KX250-A5+ | ||
| EMBLEM,SIDE COVER | 16 | 56018-1089 | KX250-A5+ | ||
| PATTERN,SIDE COVER LH | 17 | 56027-1513 | KX250-A5+ | ||
| PATTERN,SIDE COVER RH | 18 | 56027-1514 | KX250-A5+ |
| SEAT-ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A4 |
| SEAT-ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5+ |
| DAMPER RUBBER,SEAT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X22 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| COVER,L.H SIDE,GREEN | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A4 |
| DAMPER RUBBER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A4 |
| SCREW,6X14 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A4 |
| COVER,R.H SIDE,GREEN | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A4 |
| EMBLEM,SIDE COVER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A4 |
| COVER,L.H.SIDE,L.GREN | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5+ |
| DAMPER RUBBER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5+ |
| SCREW,6X14 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5+ |
| COVER,R.H.SIDE,L.GREN | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5+ |
| EMBLEM,SIDE COVER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5+ |
| PATTERN,SIDE COVER LH | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5+ |
| PATTERN,SIDE COVER RH | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5+ |
