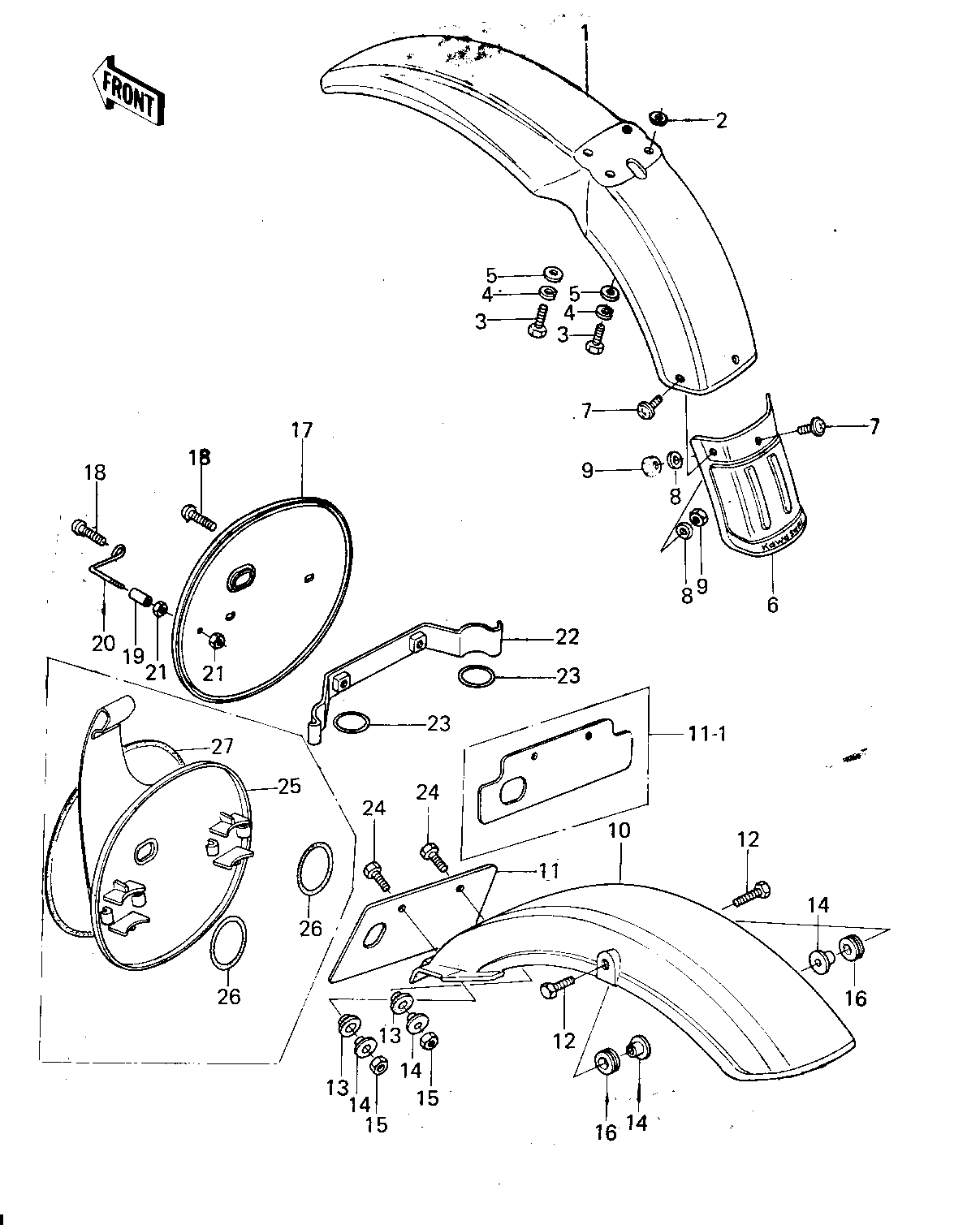

1979 KX250-A5 - FENDERS/NUMBER PLATE (78-79)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FR,L.GREEN | 1 | 35004-1015-6W | |||
| WASHER,PLAIN | 2 | 92022-283 | |||
| BOLT-UPSET | 3 | 112G0618 | |||
| WASHER SPRING 6MM | 4 | 461F0600 | |||
| WASHER 6.5X20X1.6T | 5 | 92022-125 | |||
| FLAP,FRONT FENDER | 6 | 35019-1002 | |||
| FLAP,FRONT FENDER | 6 | 35019-1002 | |||
| SCREW,6X14 | 7 | 92009-1287 | |||
| WASHER PLAIN | 8 | 92022-024 | |||
| NUT | 9 | 92019-008 | |||
| FENDER-RR,L.GREEN | 10 | 35022-1002-6W | KX250-A4 | ||
| FENDER-RR,L.GREEN | 10 | 35022-1057-6W | KX250-A5+ | ||
| FLAP,REAR FENDER | 11 | 35019-1001 | KX250-A4 | ||
| FLAP,REAR FENDER | 11 | 35019-1001 | KX250-A4 | ||
| FLAP,REAR FENDER | 11-1 | 35019-1008 | KX250-A5+ | ||
| BOLT-UPSET | 12 | 112G0618 | |||
| DAMPER RUBBER | 13 | 92075-103 | |||
| COLLAR | 14 | 92027-1045 | |||
| NUT | 15 | 92019-008 | |||
| DAMPER RUBBER | 16 | 92075-1028 | |||
| PLATE,NUMBER | 17 | 58029-1001-6W | KX250-A4 | ||
| SCREW,6X14 | 18 | 92009-1287 | KX250-A4 | ||
| ROLLER | 19 | 92122-1001 | KX250-A4 | ||
| GUIDE,NUMBER PLATE | 20 | 13070-1002 | KX250-A4 | ||
| NUT-HEX | 21 | 311B0300 | KX250-A4 | ||
| BRACKET,NUMBER PLATE | 22 | 11034-1089 | KX250-A4 | ||
| "0" RING,55MM | 23 | 671B2555 | KX250-A4 | ||
| BOLT-UPSET,6X20 | 24 | 112G0620 | |||
| PLATE-NUMBER,L.GREEN | 25 | 58029-1008-D4 | KX250-A5+ | ||
| "0" RING,70MM | 26 | 671B2570 | KX250-A5+ | ||
| PATTERN,NUMBER PLATE | 27 | 56027-1512 | KX250-A5+ |
