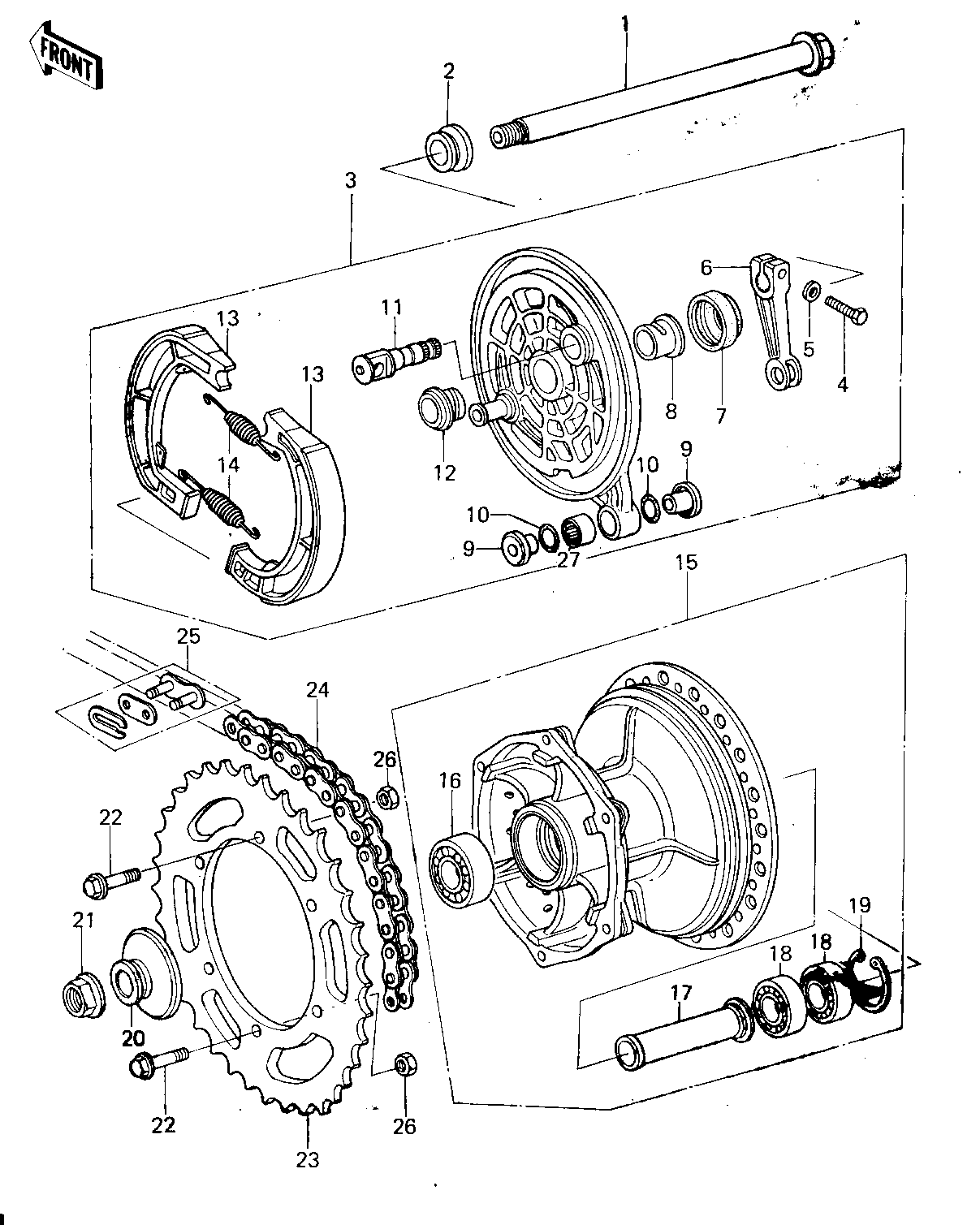

1979 KX250-A5 - REAR HUB/BRAKE/CHAIN (78-79)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,REAR | 1 | 41068-1007 | |||
| COLLAR,REAR AXLE | 2 | 92027-1039 | |||
| PANEL-ASY,RR BRK | 3 | 41035-1003-21 | |||
| BOLT-UPSET | 4 | 112G0622 | |||
| WASHER PLAIN 6MM | 5 | 410B0600 | |||
| LEVER,REAR BRAKE CAM | 6 | 41053-1004 | |||
| OIL SEAL | 7 | 92093-1004 | |||
| SLEEVE,REAR BRAKE | 8 | 42036-1010 | R.H. | ||
| COLLAR | 9 | 92027-1040 | |||
| "O" RING | 10 | 670B2011 | |||
| CAM SHAFT,BRAKE | 11 | 41050-1002 | |||
| SLEEVE,REAR BRAKE | 12 | 42036-1009 | L.H. | ||
| SHOE,BRAKE | 13 | 42019-011 | |||
| SPRING-BRAKE SHOE | 14 | 42020-004 | |||
| DRUM-ASSY,RR BRK,BLK | 15 | 41034-1007-21 | |||
| BEARING-BALL | 16 | 601B6303U | |||
| COLLAR,REAR BRAKE | 17 | 92027-1037 | |||
| BEARING-BALL,#6003UC3 | 18 | 601B6003U | |||
| CIRCLIP,35MM | 19 | 481J3500 | |||
| COLLAR,REAR AXLE | 20 | 92027-1038 | |||
| NUT,16M/M | 21 | 92015-1015 | |||
| BOLT,HEX HEAD,8X32 | 22 | 92001-1040 | 8 X 32 | ||
| REAR SPROCKET,50T STD | 23 | 42041-1006 | S.T.D. | ||
| REAR SPROCKET,48T | 23 | 42041-1022 | OPTION | ||
| REAR,SPROCKET,52T | 23 | 42041-1008 | OPTION | ||
| DR CHAIN 520X110 | 24 | 92057-1004 | KX250-A4 | ||
| DR CHAIN 520X116 | 24 | 92057-1028 | KX250-A5+ | ||
| CHAIN JOINT 520 | 25 | 92058-1002 | D1D520TR | ||
| NUT,LOCK,8MM | 26 | 92015-1124 | |||
| BEARING,NEEDLE | 27 | 92046-1009 |
