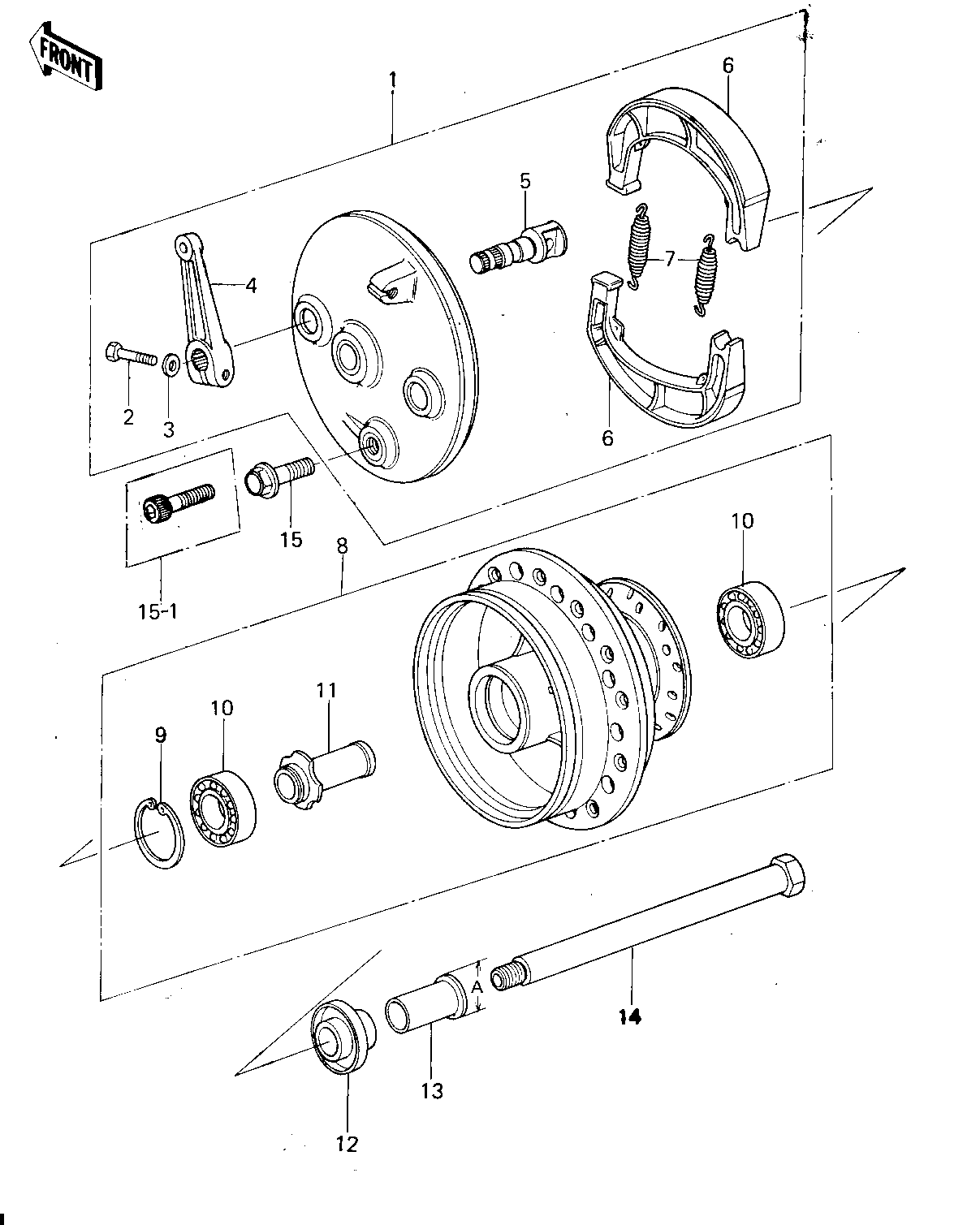

1979 KX250-A5 - FRONT HUB/BRAKE (78-79)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASY,FR BRK | 1 | 41035-1002 | |||
| BOLT-UPSET | 2 | 112G0622 | |||
| WASHER PLAIN 6MM | 3 | 410B0600 | |||
| LEVER,FRONT BRAKE CAM | 4 | 41053-1003 | |||
| CAM SHAFT,BRAKE | 5 | 41050-1002 | |||
| SHOE-BRAKE | 6 | 41048-1068 | |||
| SPRING-BRAKE SHOE | 7 | 42020-004 | |||
| DRUM-ASSY,FR BRK,BLK | 8 | 41034-1006-21 | |||
| CIRCLIP,42MM | 9 | 92033-1041 | |||
| BEARING,FRONT DRUM | 10 | 92045-033 | |||
| COLLAR,FRONT BRAKE | 11 | 92027-1034 | |||
| COLLAR,FRONT AXLE | 12 | 92027-1035 | |||
| COLLAR,FRONT AXLE | 13 | 92027-1036 | KX250-A4 | ||
| COLLAR,FRONT AXLE | 13 | 92027-1178 | KX250-A5+ | ||
| AXLE,FRONT | 14 | 41068-1006 | |||
| BOLT,HEX HEAD,10X28 | 15 | 92001-1039 | KX250-A4 | ||
| BOLT,SOCKET,10X45 | 15-1 | 92001-1202 | KX250-A5+ |
