Parts Diagrams |

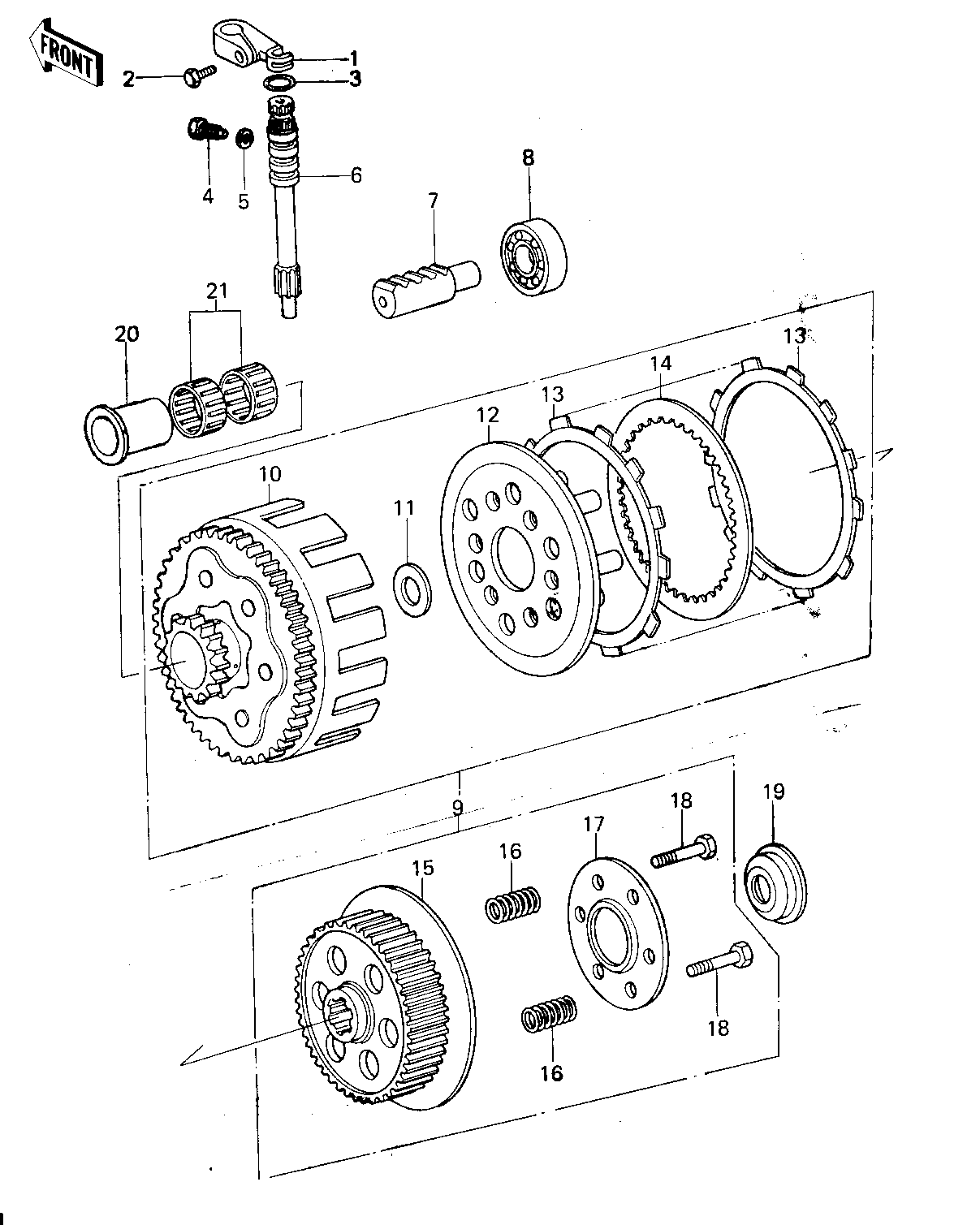

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,CLUTCH RELEASE | 1 | 13168-1042 | KX250-A5 | ||
| LEVER,CLUTCH RELEASE | 1 | 13168-1042 | KX250-A5+ | ||
| BOLT-UPSET | 2 | 112G0618 | |||
| "0" RING, 10MM | 3 | 670B2010 | |||
| BOLT,CLUTCH RELEASE | 4 | 92003-130 | |||
| GASKET,R.H ENG COVER | 5 | 92065-092 | |||
| SHAFT,CLUTCH RELEASE | 6 | 13106-008 | |||
| ROD,CLUTCH PUSH | 7 | 13116-025 | |||
| BEARING,BALL #627 | 8 | 92045-026 | |||
| CLUTCH-ASSY | 9 | 13081-1004 | |||
| HOUSING,CLUTCH | 10 | 13095-1005 | |||
| WASHER,CLUTCH THRUST | 11 | 92022-282 | |||
| WHEEL,CLUTCH | 12 | 13086-016 | |||
| PLATE,CLUTCH FRICTION | 13 | 13088-041 | |||
| PLATE,CLUTCH STEEL | 14 | 13089-025 | |||
| HUB,CLUTCH | 15 | 13087-039 | |||
| SPRING-CLUTCH | 16 | 92081-083 | |||
| PLATE,CLUTCH SPRING | 17 | 13091-016 | |||
| BOLT-UPSET | 18 | 112G0618 | |||
| PUSHER,CLUTCH SPRING | 19 | 13114-1001 | |||
| BUSHING,CLUTCH | 20 | 92028-1013 | |||
| BEARING,NEEDLE | 21 | 92046-1003 |
| LEVER,CLUTCH RELEASE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5 |
| LEVER,CLUTCH RELEASE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KX250-A5+ |
| BOLT-UPSET | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| "0" RING, 10MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH RELEASE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GASKET,R.H ENG COVER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SHAFT,CLUTCH RELEASE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH PUSH | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL #627 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CLUTCH-ASSY | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER,CLUTCH THRUST | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WHEEL,CLUTCH | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH FRICTION | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH STEEL | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPRING-CLUTCH | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH SPRING | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PUSHER,CLUTCH SPRING | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BUSHING,CLUTCH | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BEARING,NEEDLE | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
