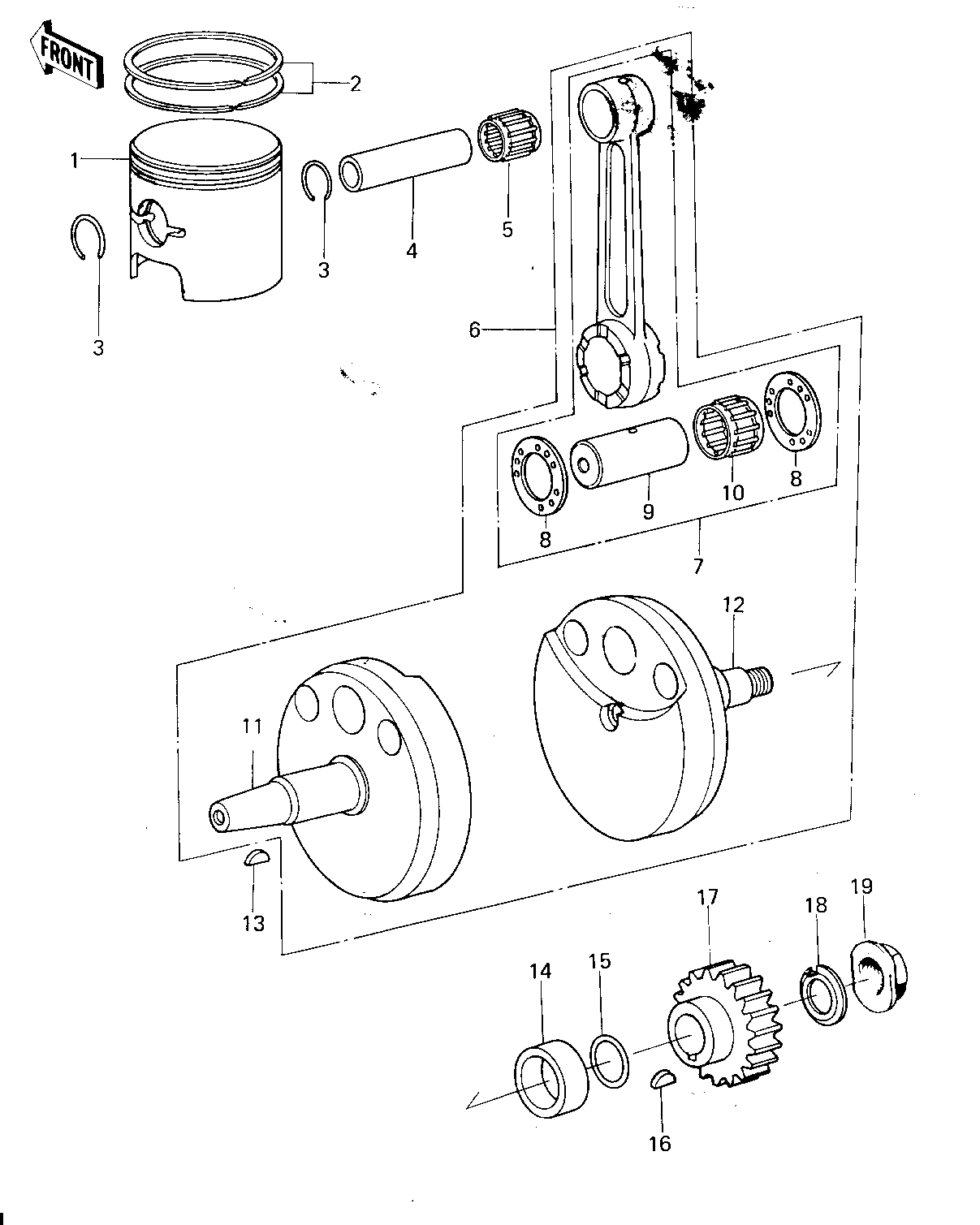

1979 KX250-A5 - CRANKSHAFT/PISTON (78-79)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON,STD | 1 | 13001-1004 | |||
| RING SET,STD | 2 | 13008-5008 | |||
| CIRCLIP-PISTON PIN | 3 | 92036-015 | |||
| PIN-PISTON | 4 | 13002-017 | |||
| BEARING-SMALL END | 5 | 13033-1010 | |||
| CRANK & CONROD ASSY | 6 | 13031-1004 | KX250-A4 | ||
| CRANSHAFT ASSY | 6 | 13031-1020 | KX250-A5+ | ||
| CONNECTING ROD SET | 7 | 13044-5007 | |||
| SPACER | 8 | 92026-1241 | |||
| PIN,CRANK | 9 | 13035-034 | |||
| BEARING,BIG END NEEDL | 10 | 13034-049 | |||
| CRANKSHAFT,L.H | 11 | 13037-070 | KX250-A4 | ||
| CRANKSHAFT,L.H | 11 | 13037-1027 | KX250-A5+ | ||
| CRANKSHAFT,R.H | 12 | 13038-058 | KX250-A4 | ||
| CRANKSHAFT,R.H | 12 | 13037-1028 | KX250-A5+ | ||
| WOODRUFF KEY | 13 | 92038-001 | |||
| COLLAR,CRANKSHAFT | 14 | 92027-212 | |||
| "0" RING,20MM | 15 | 670B2020 | |||
| WOODRUFF KEY | 16 | 510A5100 | |||
| GEAR,PRIMARY 22T | 17 | 13121-029 | |||
| WASHER,LOCK | 18 | 92024-061 | |||
| NUT,CRANKSHAFT | 19 | 92015-069 |
