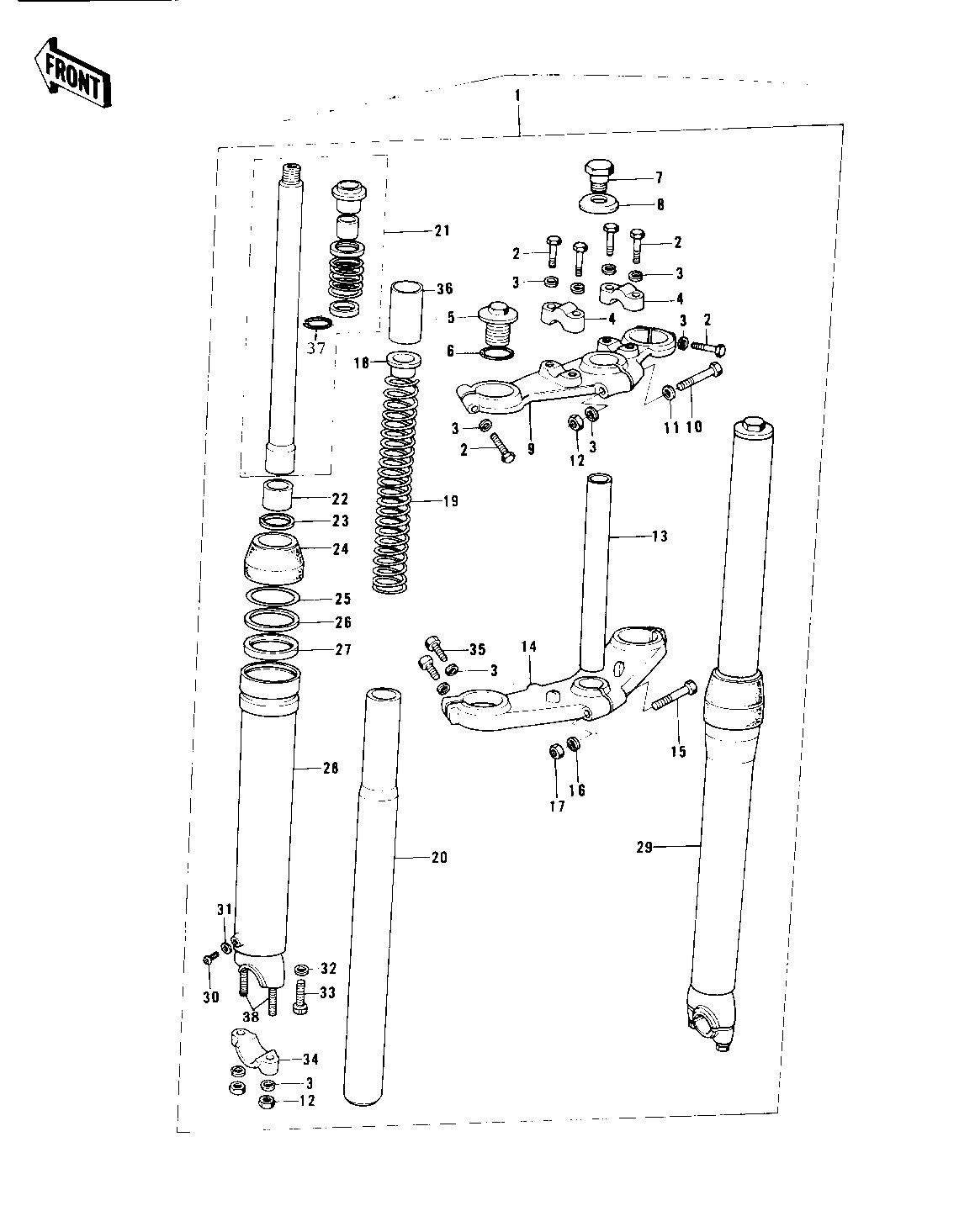

1976 KX250-A3 - FRONT FORK (KX250)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-169
BOLT HEX HEAD 2 44041-004
WASHER SPRING 8MM 3 461F0800
HOLDER 4 46012-011
BOLT-FORK FITTING 5 44041-037
"O" RING,FORK TOP 6 92055-1012
BOLT,FORK TOP 7 44041-065
WASHER,FORK TOP BOLT 8 44043-055
HEAD,STEERING STEM 9 44039-062
BOLT-STEERING STEM HD 10 44041-042
WASHER PLAIN 8MM 11 411B0800
NUT,8MM 12 311B0800
SHAFT,STEERING STEM 13 44052-008
STEM,STEERING 14 44038-008
BOLT,HEX HEAD 15 44041-066
WASHER SPRING 10MM 16 461F1000
NUT (10MM) 17 311B1000
GUIDE,FORK SPRING 18 44028-033
SPRING,FORK INNER 19 44026-066
TUBE,FORK INNER 20 44013-052
CYLINDER-FORK 21 44022-030
PISTON,FORK 22 44018-008
CIRCLIP,FORK 23 44044-018
CIRCLIP,FORK 23 44044-021 KX250-A3
DUST SHEILD,FORK 24 44010-032
CIRCLIP-OIL SEAL FIT 25 44044-012
WASHER-OIL SEAL FIT 26 44043-044
SEAL-OIL,FORK OUTER P 27 92049-1216
SEAL-OIL,FORK OUTER P 27 92049-1216 KX250-A3
TUBE,LH,FORK OUTER 28 44005-060
TUBE,RH,FORK OUTER 29 44006-058
SCREW PAN HEAD 4X8 30 220B0408
GASKET 31 44045-045
GASKET,FORK CYLINDER 32 44045-057
BOLT-FORK CYLINDER 33 44041-040
HOLDER,FRONT AXLE 34 44063-011
BOLT 35 44041-083
SPACER,FORK SPRING 36 44040-002
RING,FORK PISTON 37 44025-004
STUD,8X35 38 92004-1009
