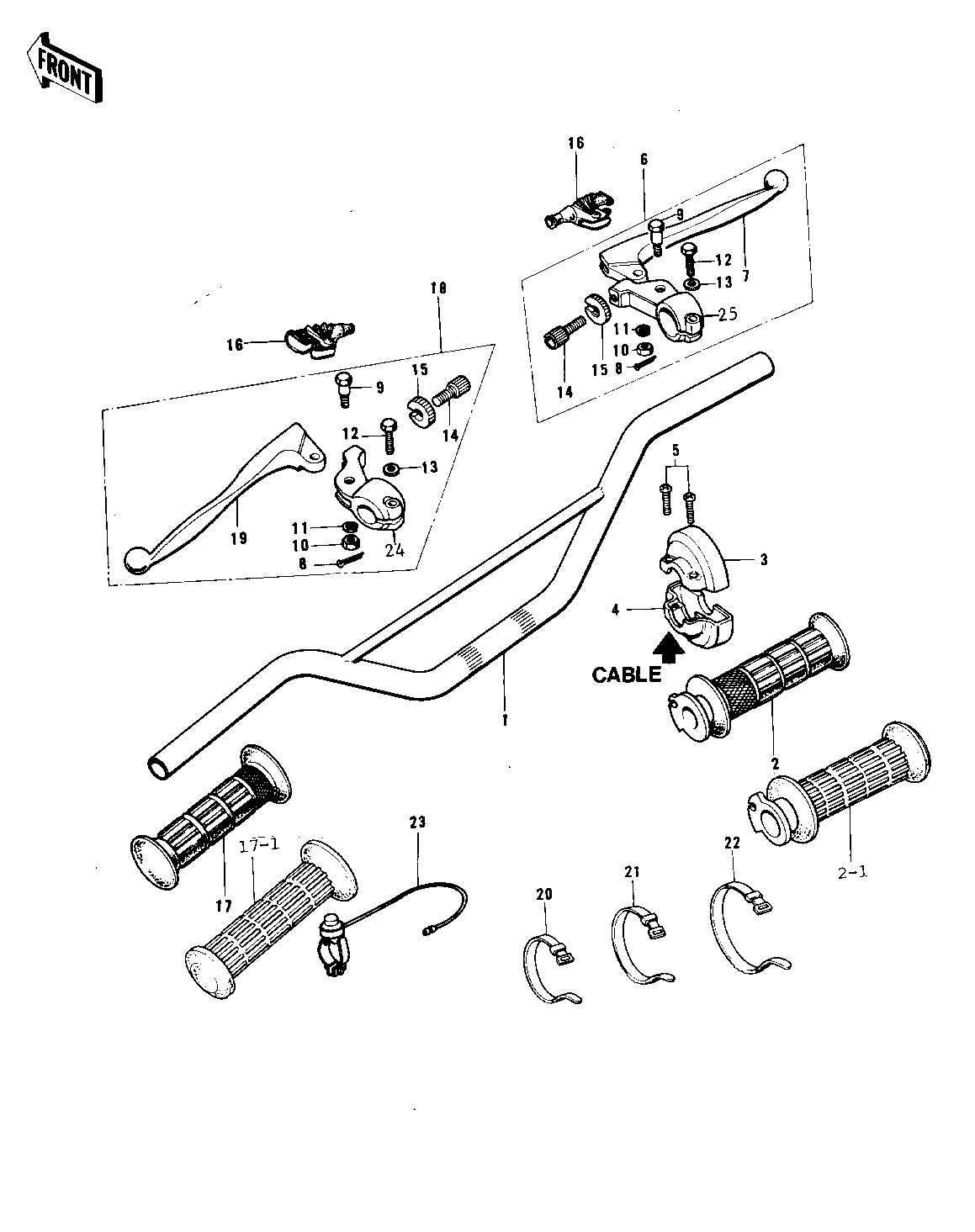

1976 KX250-A3 - HANDLEBAR (74-76)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46004-028
HANDLEBAR 1 46004-032 KX250A/-A3
GRIP ASSY,THROTTLE 2 46019-031
GRIP,THROTTLE 2-1 46019-037
CASE,R.H,GRIP,UPPER 3 32099-1014
HOUSING-ASSY-CONTROL 4 46091-5006
SCREW PAN HEAD 5X18 5 220B0518
LEVER ASSY,FRNT BRAKE 6 46021-024
LEVER ASSY,FRNT BRAKE 6 46021-032 KX250A/-A3
LEVER,FRONT BRAKE 7 46058-017
FRONT BRAKE LEVER 7 46058-018 KX250A/-A3
PIN COTTER 1.6X15 8 550D1615
BOLT,HEX HEAD,6MM 9 92001-140
NUT CASTLE 10 320B0600
WASHER SPRING 6MM 11 461F0600
BOLT, HEX HEAD 6X22 12 110N0622
WASHER PLAIN 6MM 13 411B0600
SCREW,CABLE ADJUST 14 46055-009
NUT,CABLE ADJUST LOCK 15 46056-006
BOOTS,LEVER HOLDER 16 49006-1017
RUBBER,L.H GRIP 17 46075-025
RUBBER,L.H GRIP 17-1 46075-027 KX250A/-A3
LEVER ASSY,CLUTCH 18 46076-037
LEVER ASSY,CLUTCH 18 46076-048 KX250A/-A3
LEVER,CLUTCH 19 46092-020
LEVER, CLUTCH 19 46092-021 KX250A/-A3
BAND,SHORT 20 92072-030 L=123M/M
BAND,MIDDLE 21 92072-031 L=149M/M
BAND,WIRING HARNESS 21 92072-056 KX250-A3
BAND-RUBBER 22 92072-035 L-80M/M
BAND,LONG 22 92072-032 KX250-A3
SWITCH,ASSY,ENG STOP 23 27010-1018
HOLDER,CLUTCH LEVER 24 46094-014
HOLDER,FR BRAKE LEVER 25 46060-010
