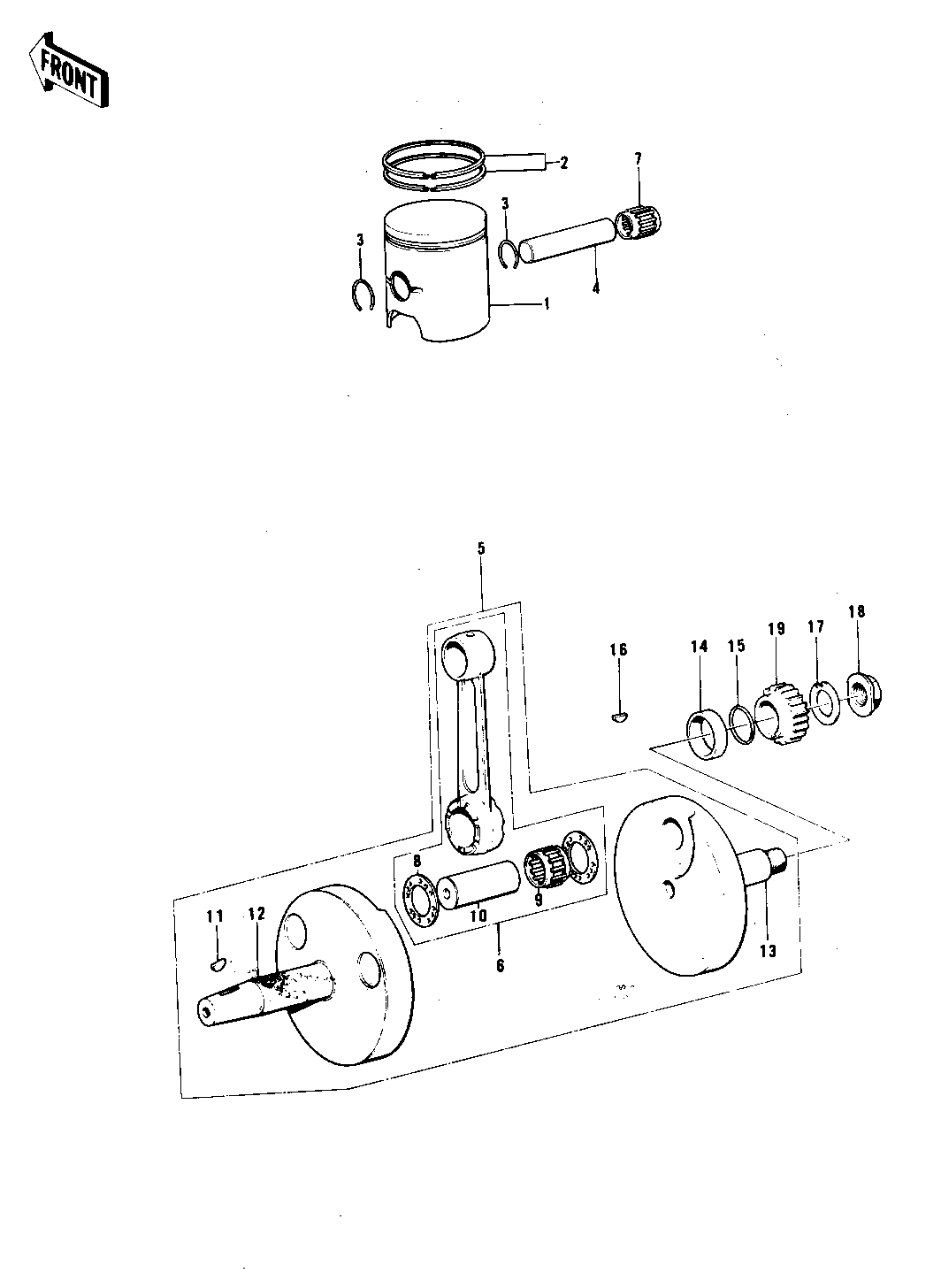

1976 KX250-A3 - CRANKSHAFT/PISTON (74-76)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON,STD | 1 | 13001-070 | |||
| PISTON,STD | 1 | 13001-075 | KX250A/-A3 | ||
| PISTON,0.020' O/S | 1 | 13029-069 | KX250 (ONLY) | ||
| RING SET,STD | 2 | 13008-051 | |||
| RING SET,STD | 2 | 13008-056 | KX250A/-A3 | ||
| RING SET,0.020'O/S | 2 | 13025-055 | KX250 (ONLY) | ||
| CIRCLIP-PISTON PIN | 3 | 92036-015 | |||
| PIN-PISTON | 4 | 13002-017 | |||
| PIN-PISTON | 4 | 13002-017 | KX250-A3 | ||
| CRANK&CONROD ASSY | 5 | 13036-046 | |||
| CONNECTING ROD SET | 6 | 13044-037 | |||
| CONNECTING ROD SET | 6 | 13044-037 | KX250A/-A3 | ||
| BEARING-SMALL END | 7 | 13033-1010 | KBK182223.8X | ||
| BEARING-SMALL END | 7 | 13033-1010 | KX250-A3 | ||
| SPACER | 8 | 92026-1241 | |||
| BEARING,BIG END NEEDL | 9 | 13034-049 | PK243219.8X | ||
| BEARING,BIG END NEEDL | 9 | 13034-049 | KX250A/-A3 | ||
| PIN,CRANK | 10 | 13035-034 | |||
| WOODRUFF KEY | 11 | 92038-001 | |||
| CRANKSHAFT,L.H | 12 | 13037-060 | |||
| CRANKSHAFT,L.H | 12 | 13037-070 | FILLED BALANCE HOLES | ||
| CRANKSHAFT,R.H | 13 | 13038-055 | |||
| CRANKSHAFT,R.H | 13 | 13038-058 | FILLED BALANCE HOLES | ||
| COLLAR,CRANKSHAFT | 14 | 92027-212 | |||
| "0" RING,20MM | 15 | 670B2020 | |||
| WOODRUFF KEY | 16 | 510A5100 | |||
| WASHER,LOCK | 17 | 92024-061 | |||
| NUT,CRANKSHAFT | 18 | 92015-069 | |||
| GEAR,PRIMARY 22T | 19 | 13121-029 | 22T |
