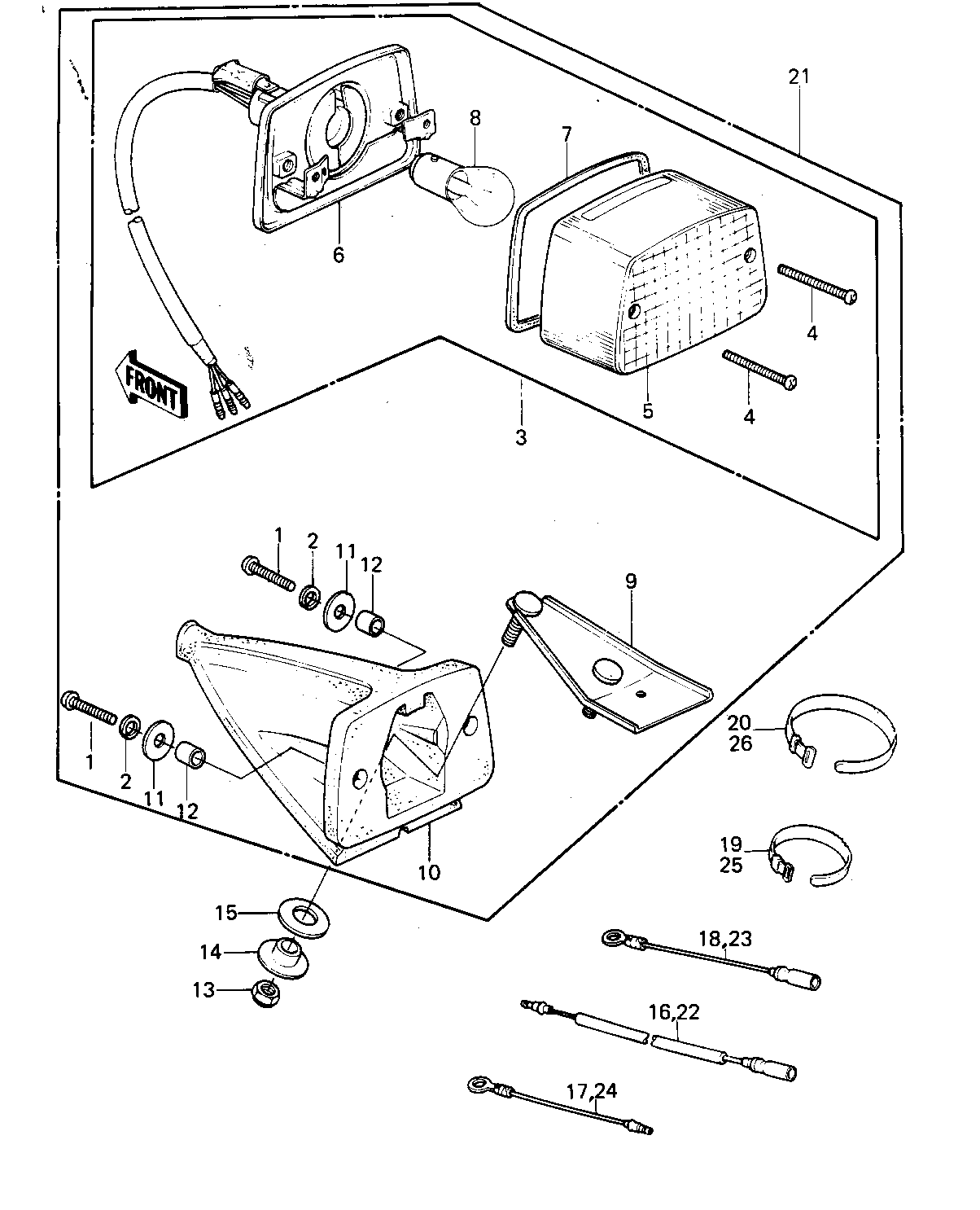

1979 KLX250 - TAILLIGHT (KLX250-A2) (OPTIONAL FOR KLX2
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 214B0516A | 2 | ||
| WASHER SPRING 5MM | 2 | 461F0500 | 2 | ||
| LAMP,TAIL | 3 | 23025-075 | 1 | ||
| SCREW-PAN-CROS | 4 | 220B0330 | 2 | ||
| LENS,TAIL LAMP | 5 | 23026-040 | 1 | ||
| CASE,TAIL LAMP | 6 | 23027-044 | 1 | ||
| GASKET,TAIL LIGHT | 7 | 23028-020 | 1 | ||
| BULB,6V 17/5.3W | 8 | 92069-028 | 1 | ||
| BRACKET,TAIL LAMP | 9 | 23036-4001 | 1 | ||
| BODY,TAIL LAMP | 10 | 23069-4001 | 1 | ||
| WASHER,TAIL LAMP | 11 | 92022-4001 | 2 | ||
| COLLAR,TAIL LAMP | 12 | 92027-4002 | 2 | ||
| NUT | 13 | 92019-008 | 2 | ||
| COLLAR | 14 | 92027-1045 | 2 | ||
| DAMPER RUBBER | 15 | 92075-118 | 2 | ||
| WIRE, TAILLAMP | 16 | 26011-4001 | 1 | KLX250-A1 | |
| WIRE, GROUND HEADLAMP | 17 | 26011-4002 | 1 | KLX250-A1 | |
| WIRE, GROUND TAILLITE | 18 | 26011-4003 | 1 | KLX250-A1 | |
| BAND | 19 | 92072-3505 | 5 | KLX250-A1 | |
| BAND | 20 | 92072-3509 | 3 | KLX250-A1 | |
| TAIL LAMP ASSY | 21 | 23024-4001 | 1 | ||
| WIRE,LEAD | 22 | 26011-1067 | 1 | KLX250-A2 | |
| WIRE,LEAD | 23 | 26011-1068 | 1 | KLX250-A2 | |
| WIRE,LEAD | 24 | 26011-1069 | 1 | KLX250-A2 | |
| BAND,SHORT | 25 | 92072-030 | 4 | KLX250-A2 | |
| BAND,WIRING HARNESS | 26 | 92072-056 | 1 | KLX250-A2 |
