Parts Diagrams |

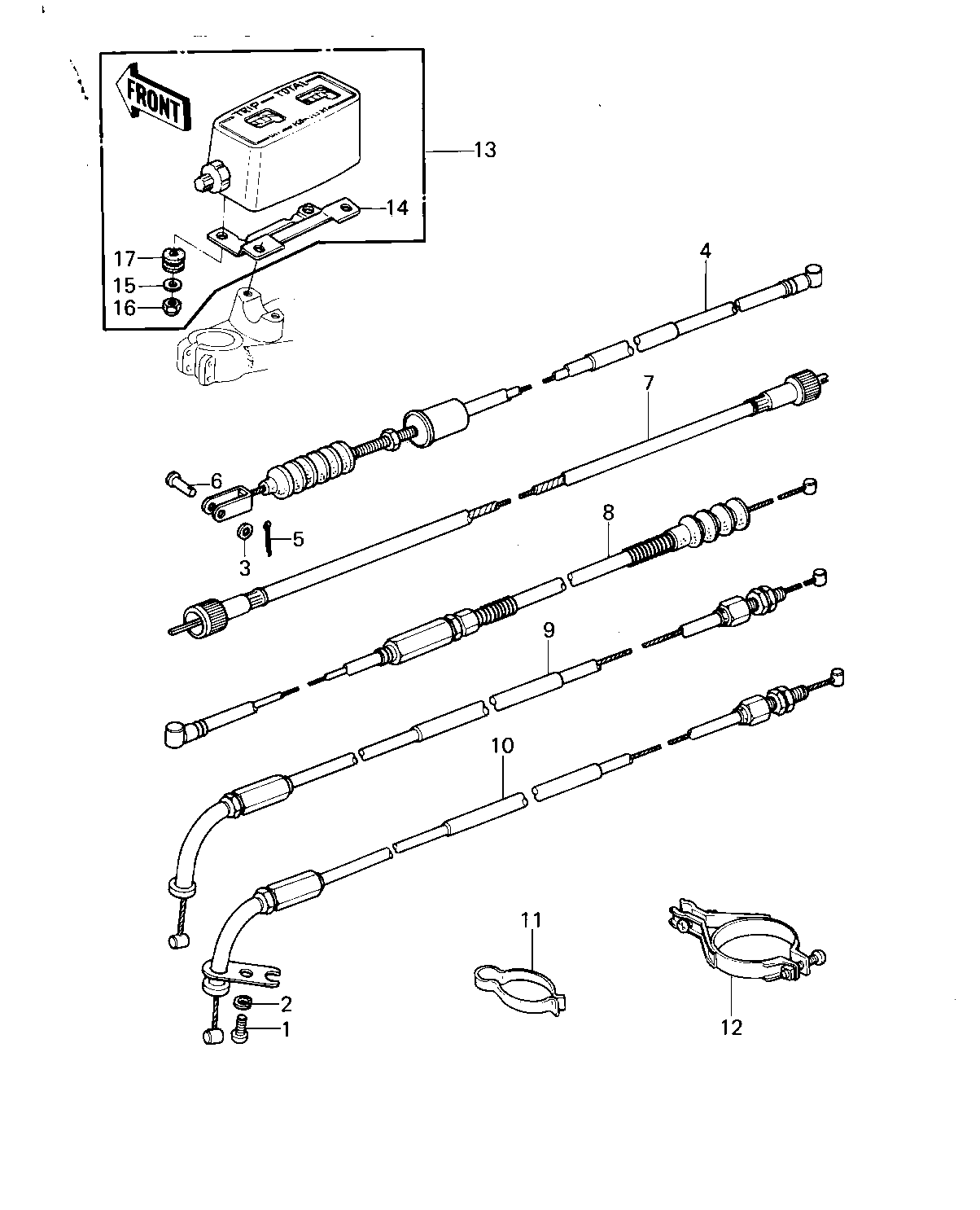

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW PAN HEAD 6X10 | 1 | 220B0610 | 1 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 3 | 410B0600 | 1 | ||
| CABLE,FRONT BRAKE | 4 | 54005-1020 | 1 | ||
| PIN COTTER 2.0X15 | 5 | 550D2015 | 1 | ||
| PIN-BRAKE ROD FITTING | 6 | 92043-064 | 1 | ||
| CABLE,SPEEDOMETER | 7 | 54001-1020 | 1 | ||
| CABLE,CLUTCH | 8 | 54011-1032 | 1 | ||
| CABLE,THROTTLE,OPEN | 9 | 54012-1050 | 1 | ||
| CABLE,THROTTLE,CLOSE | 10 | 54012-1051 | 1 | ||
| CLAMP,CABLE | 11 | 92037-093 | 1 | ||
| CLAMP,CABLE | 12 | 92037-1072 | 1 | ||
| METER ASSY | 13 | 25001-1099 | 1 | ||
| METER ASSY,KPH (Canada) | 13 | 25001-1103 | 1 | ||
| BRACKET,METER | 14 | 11034-1574 | 1 | ||
| WASHER,5.2X16X16X1.2T | 15 | 25009-004 | 2 | ||
| NUT-CAP,5MM | 16 | 322N0500 | 2 | ||
| DAMPER RUBBER,METER | 17 | 92075-1209 | 2 |
