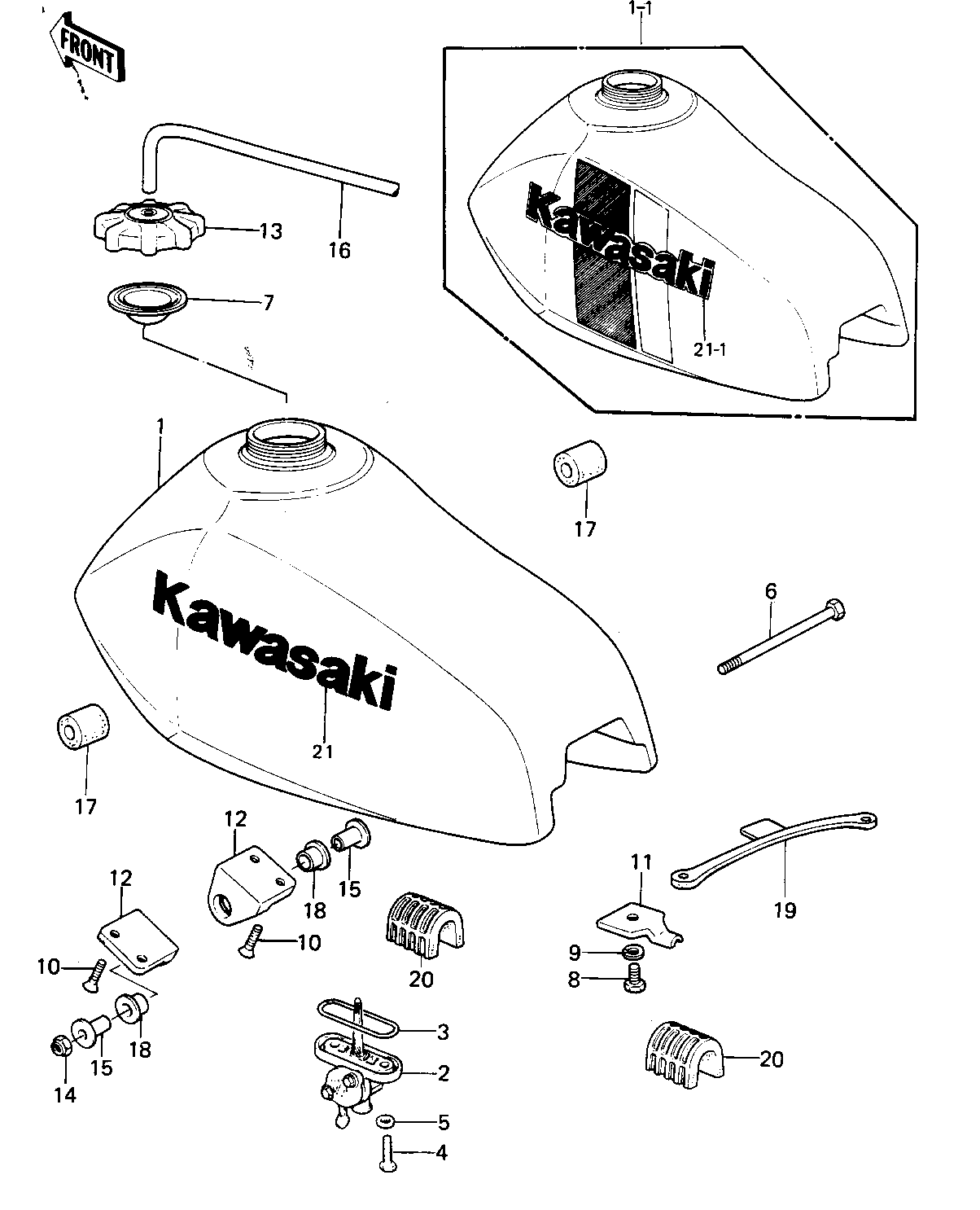

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,L.GREEN | 1 | 51001-1080-6W | 1 | KLX250-A1 | |
| TANK-FUEL,L.GREEN | 1-1 | 51001-5106-6W | 1 | KLX250-A2 | |
| COCK ASSY,FUEL | 2 | 51023-4002 | 1 | ||
| "O" RING | 3 | 51039-003 | 1 | ||
| BOLT,6X20,FUEL TAP | 4 | 92001-1091 | 2 | ||
| WASHER-PLAIN | 5 | 92022-183 | 2 | ||
| BOLT-UPSET,6X105 | 6 | 112G06105 | 1 | ||
| GASKET,FUEL TANK | 7 | 11009-1452 | 1 | ||
| BOLT,6X10 | 8 | 112G0610 | 1 | ||
| WASHER SPRING 6MM | 9 | 461F0600 | 1 | ||
| SCREW CNTSNK HD 6X14 | 10 | 221B0614 | 4 | ||
| BRACKET,FUEL TANK | 11 | 32052-1009 | 1 | ||
| BRACKET,FUEL TANK | 12 | 32052-1010 | 2 | ||
| CAP-TANK,FUEL | 13 | 51049-1006 | 1 | ||
| NUT | 14 | 92019-008 | 1 | ||
| SPACER,FUEL TANK | 15 | 92026-1015 | 2 | ||
| TUBE,VINYL | 16 | 92059-1022 | 1 | ||
| DAMPER RUBBER,FUEL | 17 | 92075-1047 | 2 | ||
| DAMPER RUBBER,FUEL | 18 | 92075-1048 | 2 | ||
| BAND,FUEL TANK | 19 | 92072-1033 | 1 | ||
| DAMPER RUBBER,FUEL | 20 | 92075-1027 | 2 | ||
| DECAL,FUEL TANK | 21 | 56014-1023 | 2 | KLX250-A1 | |
| EMBLEM,LH | 21-1 | 56014-4005 | 1 | KLX250-A2 | |
| EMBLEM,RH | 21-1 | 56014-4006 | 1 | KLX250-A2 |
| TANK-FUEL,L.GREEN | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KLX250-A1 |
| TANK-FUEL,L.GREEN | |
| REF # | 1-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KLX250-A2 |
| COCK ASSY,FUEL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20,FUEL TAP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X105 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TANK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X14 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FUEL TANK | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FUEL TANK | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,FUEL TANK | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,VINYL | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FUEL | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FUEL | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FUEL | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DECAL,FUEL TANK | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KLX250-A1 |
| EMBLEM,LH | |
| REF # | 21-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KLX250-A2 |
| EMBLEM,RH | |
| REF # | 21-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KLX250-A2 |
