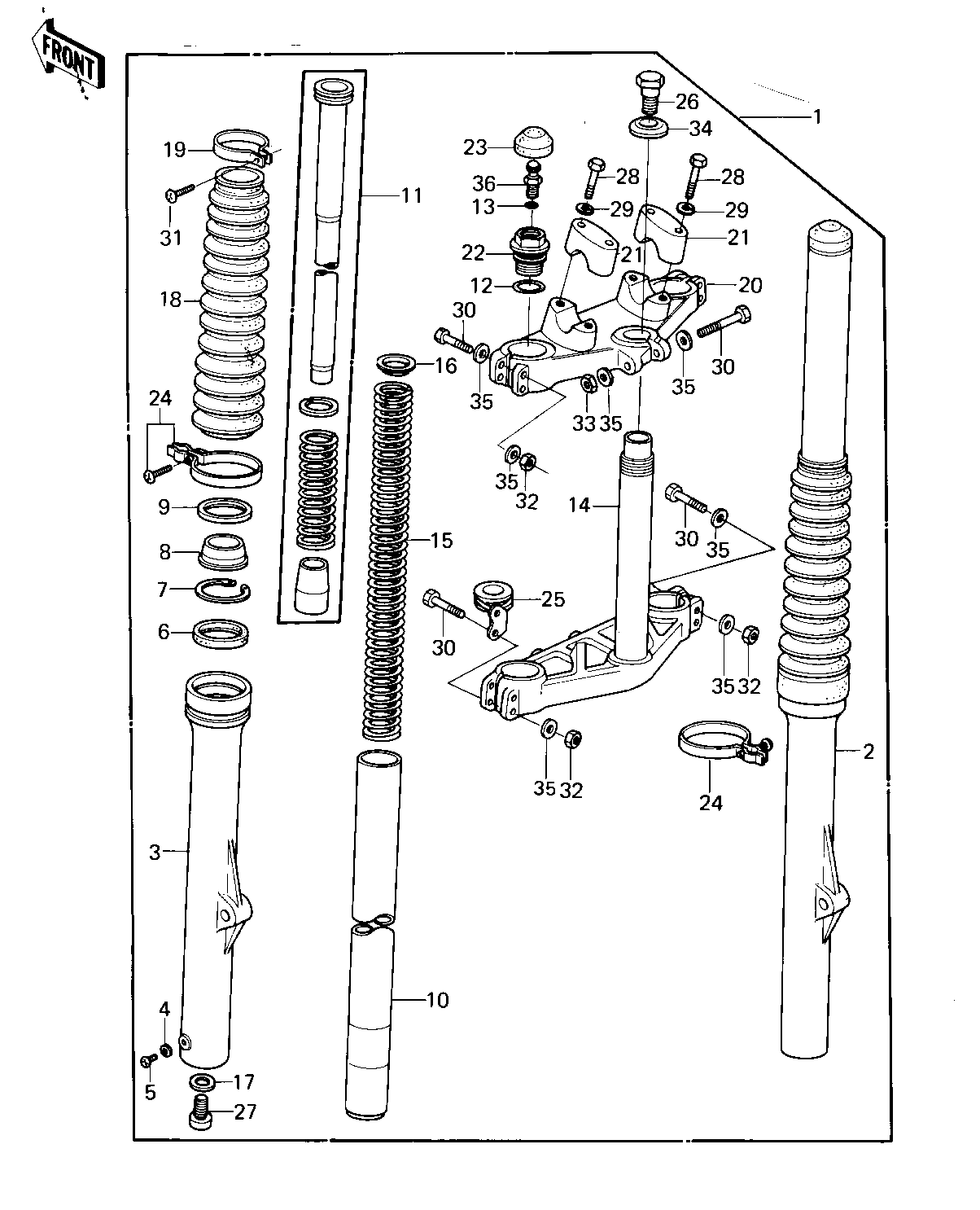

1979 KLX250 - FRONT FORK (KLX250-A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1088 1
TUBE,RH,FORK OUTER 2 44006-1030 1
TUBE,LH,FORK OUTER 3 44005-1030 1
GASKET FORK DRAIN PLG 4 44045-002 2
SCREW PAN HEAD 4X8 5 220B0408 2
OIL,SEAL,FORK OUTER 6 92049-1009 2
RING,SNAP,FORK OUTER 7 92033-1005 2
DUST SHIELD,FORK 8 92093-1007 2
CASE,DUST SHIELD 9 32099-1002 2
TUBE,FORK INNER 10 44013-1026 2
CYLINDER-FORK 11 44022-1030 2
"0" RING,FORK TOP 12 92055-1051 2
"0" RING,AIR VALVE 13 92055-1018 2
STEM,STEERING 14 44037-1021 1
SPRING,FORK 15 44026-1038 2
GUIDE,FORK SPRING 16 44028-1004 2
GASKET,FORK CYLINDER 17 44045-057 2
BOOTS,FORK 18 49006-1009 2
BAND,BOOTS 19 92072-1008 2
HEAD,STEERING STEM 20 44039-1018 1
HOLDER,HANDLE BAR 21 46012-1003 2
CAP,FORK TOP 22 44029-1011 2
CAP,RUBBER,FORK TOP 23 44029-1009 2
BAND,BOOTS L.H. 24 92072-1011 2
CLAMP,CABLE 25 92072-1027 1
BOLT,FORK TOP 26 44041-065 1
BOLT-FORK CYLINDER 27 44041-040 2
BOLT 28 92001-1578 4
WASHER SPRING 8MM 29 461F0800 4
BOLT FLANGED 8X55 30 92001-1398 9
SCREW-PAN-CROS 31 220B0420 2
NUT 8MM 32 311G0800 8
NUT,LOCK,8MM 33 92015-1124 1
WASHER 34 44043-052 1
WASHER PLAIN 8MM 35 410B0800 16
VALVE ASSY,AIR 36 16126-1003 2
