Parts Diagrams |

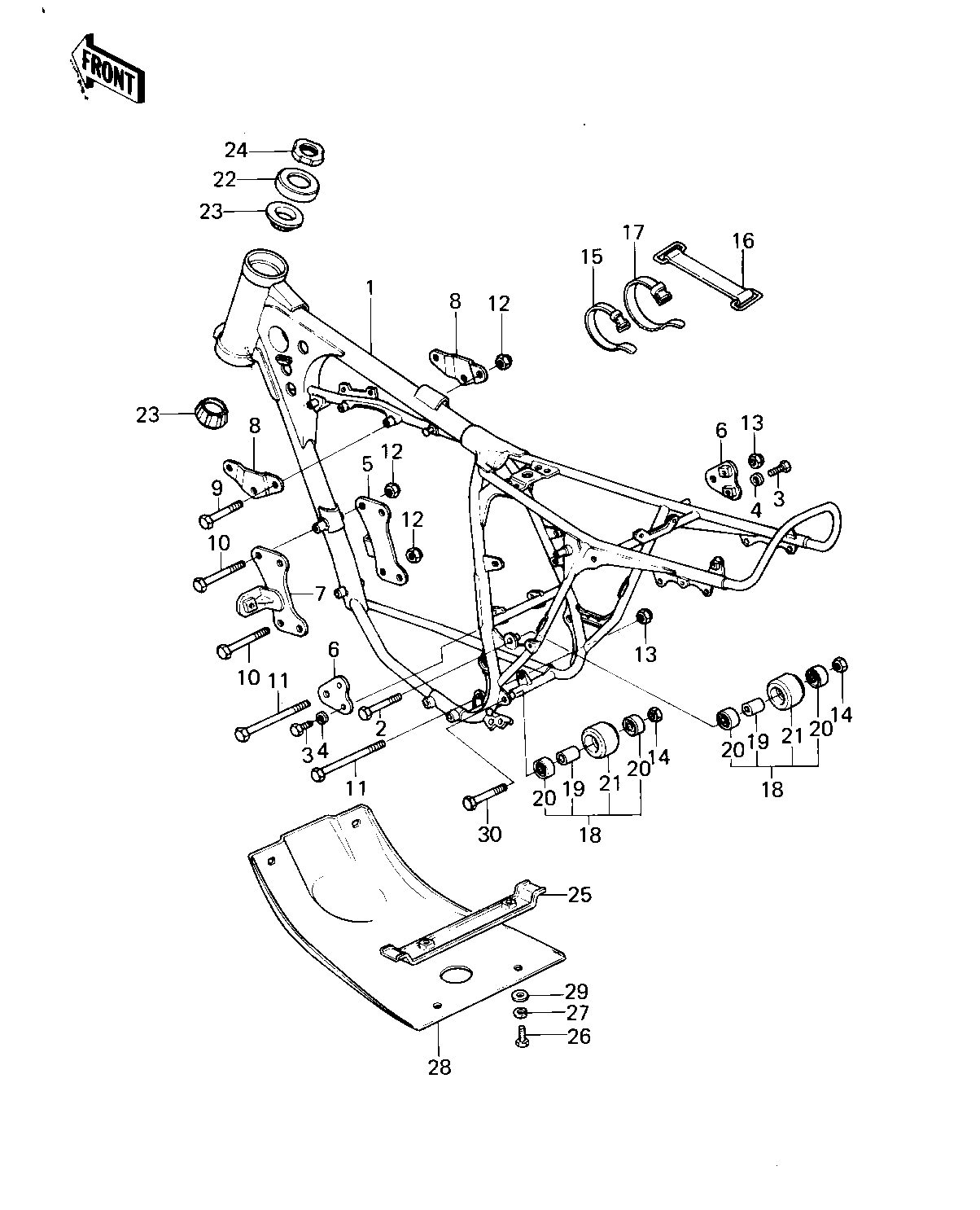

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME | 1 | 32002-1089 | 1 | ||
| BOLT,8X55 | 2 | 92001-1386 | 1 | ||
| BOLT-SMALL-UPSET,8X18 | 3 | 115G0818 | 4 | ||
| WASHER SPRING 8MM | 4 | 461F0800 | 4 | ||
| BRACKET,ENGINE,FRONT | 5 | 32029-1102 | 1 | ||
| BRACKET,ENGINE,REAR | 6 | 32029-1104 | 2 | ||
| BRACKET,ENGINE,FRONT | 7 | 32029-1105 | 1 | ||
| BRACKET,ENGINE,HEAD | 8 | 32029-1108 | 2 | ||
| BOLT,HEX HEAD,8X60 | 9 | 110G0860 | 3 | ||
| BOLT-8X63 | 10 | 92001-1397 | 4 | ||
| BOLT,HEX HEAD,10X105 | 11 | 92001-1282 | 2 | ||
| NUT,LOCK,8MM | 12 | 92015-1124 | 7 | ||
| NUT,LOCK,10MM | 13 | 92019-021 | 2 | ||
| NUT,LOCK,8MM | 14 | 92015-1124 | 2 | ||
| BAND,MIDDLE | 15 | 92072-031 | 1 | ||
| BAND,OIL TANK | 16 | 92072-045 | 2 | ||
| BAND,WIRING HARNESS | 17 | 92072-056 | 1 | ||
| ROLLER,ASSY | 18 | 92122-1013 | 2 | ||
| COLLAR | 19 | 92027-1081 | 2 | ||
| BEARING,BALL | 20 | 92045-1009 | 4 | ||
| ROLLER | 21 | 92122-1014 | 2 | ||
| CAP,STEERING STEM | 22 | 46098-015 | 1 | ||
| BEARING,STEERING STEM | 23 | 92047-017 | 2 | ||
| NUT | 24 | 92015-1546 | 1 | ||
| BRACKET,ENGINE GUARD | 25 | 11034-5009 | 1 | ||
| BOLT-UPSET 6X14 | 26 | 112B0614 | 4 | ||
| WASHER SPRING 6MM | 27 | 461F0600 | 4 | ||
| GUARD ENGINE | 28 | 55020-5001 | 1 | ||
| WASHER 6.5X20X1.6T | 29 | 92022-125 | 4 | ||
| BOLT,10X45 | 30 | 92001-1182 | 1 |
