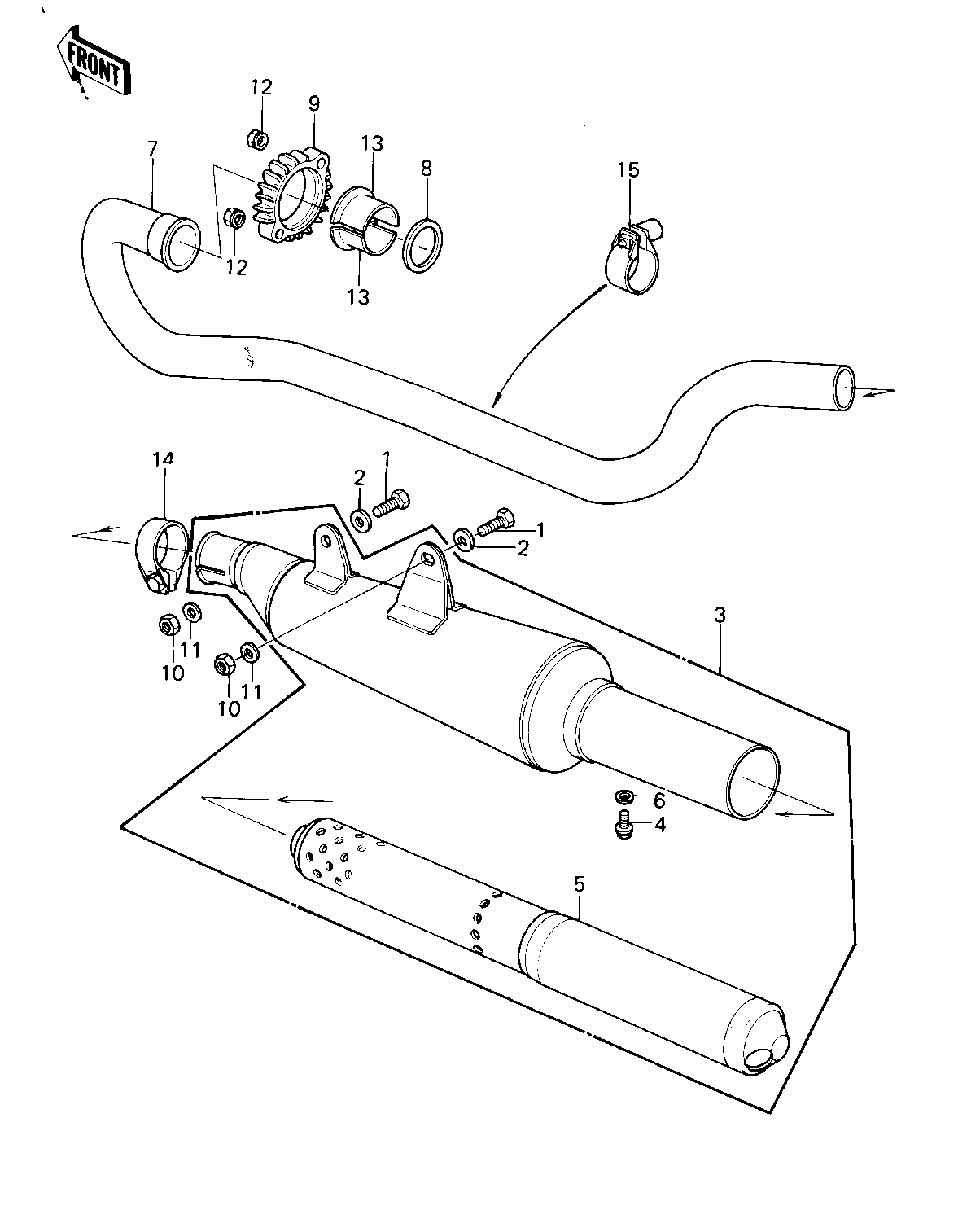

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,8X20 | 1 | 115G0820 | 2 | ||
| WASHER PLAIN 8MM | 2 | 410B0800 | 2 | ||
| MUFFLER,BLACK | 3 | 18001-1326 | 1 | ||
| BOLT,FLANGED,6X8 | 4 | 130B0608 | 1 | ||
| BAFFLE PIPE,MUFFLER | 5 | 49099-1021 | 1 | ||
| WASHER OIL PUMP BANJO | 6 | 92022-077 | 1 | ||
| PIPE-EXHAUST,MUFFLER | 7 | 18049-1096 | 1 | ||
| GASKET,EXHAUST PIPE H | 8 | 11009-1866 | 1 | ||
| HOLDER,EXHAUST PIPE | 9 | 18069-1006 | 1 | ||
| NUT,8MM | 1 | 311B0800 | 2 | ||
| WASHER PLAIN 8MM | 11 | 410B0800 | 2 | ||
| NUT-6MM | 12 | 92015-1078 | 2 | ||
| COLLAR, EXHAUST PIPE | 13 | 92027-278 | 2 | ||
| CLAMP,PIPE,35MM | 14 | 92037-1223 | 1 | ||
| CLAMP,EXHAUST PIPE | 15 | 92037-1144 | 1 | ||
| WASHER SPRING 8MM | 16 | 461F0800 | 1 | ||
| BOLT-SMALL-UPSET | 17 | 115G0845 | 1 |
