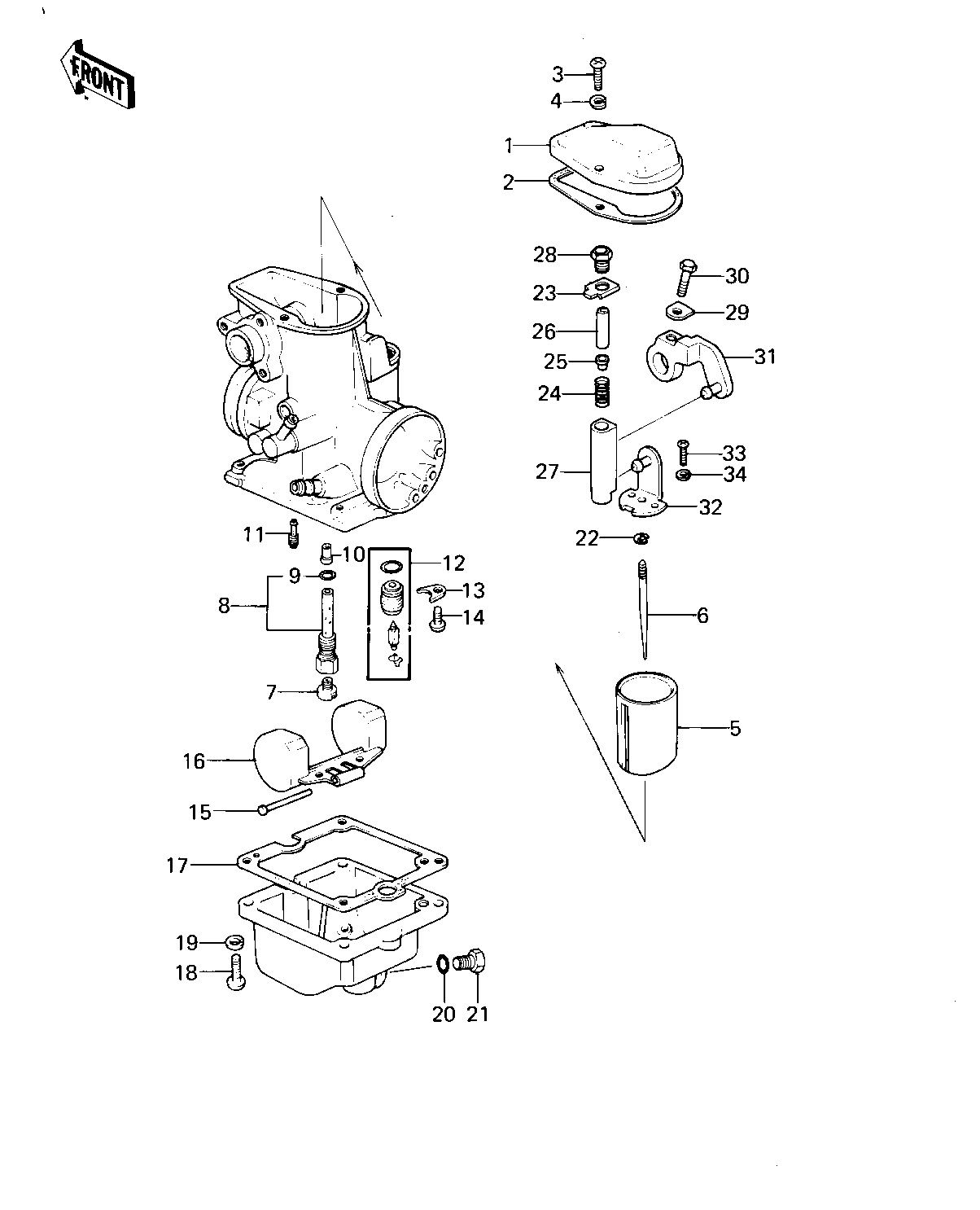

1979 KLX250 - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOP,MIXING CHAMBER 1 16005-1007 1
GASKET,CHAMBER TOP 2 16019-018 1
SCREW-PAN-CROS 3 220B0414 2
WASHER SPRING 4MM 4 461F0400 2
VALVE,THROTLE,C.A.2.5 5 16025-1035 1 USE FOR 16001-1179
VALVE,THROTTLE,CA=2.5 5 16025-1042 1 USE FOR 16001-1251
JET NEEDLE,#6H2-2 6 16009-1042 1
MAIN JET,#A137.5 7 92063-1087 1
JET-MAIN NO 132.5R 7 92063-103 (1
MAIN JET NO 135R 7 92063-104 (1
MAIN JET,#140A 7 92063-116 (1
JET-MAIN NO 142.5R 7 92063-117 (1
HOLDER,NEEDLE JET 8 13091-1061 1
"0" RING,MAIN JET COV 9 16038-016 1
NEEDLE JET,#P-2 10 16017-1042 1
JET-PILOT NO 30 11 92064-022 1 USE FOR 16001-1179
JET-PILOT NO 25 11 92064-032 1 USE FOR 16001-1251
FLOTE VALVE ASSY,#2.8 12 16030-1008 1
PLATE, LOCK 13 13169-1190 1
SCREW PAN HEAD 4X6 14 220B0406 1
PIN,FLOAT 15 16032-008 1
FLOAT 16 16031-1008 1
GASKET,FLOAT CHAMBER 17 11009-1156 1
UNAVAILABLE IN PRICE BOOK 18 214B0516A 4
WASHER SPRING 5MM 19 461F0500 4
"0" RING,MAIN JET COV 20 16038-016 1
BOLT,HEX HEAD,DRAIN 21 92066-1045 1
CIRCLIP 22 16008-010 1
WASHER,LOCK,A 23 16054-003 1
SPRING 24 16040-026 1
SEAT,SPRING 25 16057-002 1
HOLDER,THROTTLE SHAFT 26 16065-017 1
SHAFT,THROTTLE VALVE 27 16052-003 1
GUIDE SCREW 28 92001-1289 1
WASHER,LOCK,B 29 16054-004 1
BOLT,B 30 16067-004 1
LEVER,A 31 16068-007 1
BRACKET,THROTTLE VALV 32 11034-1584 1
SCREW-PAN-CROS 33 220B0310 2
WASHER SPRING 3MM 34 461F0300 2
