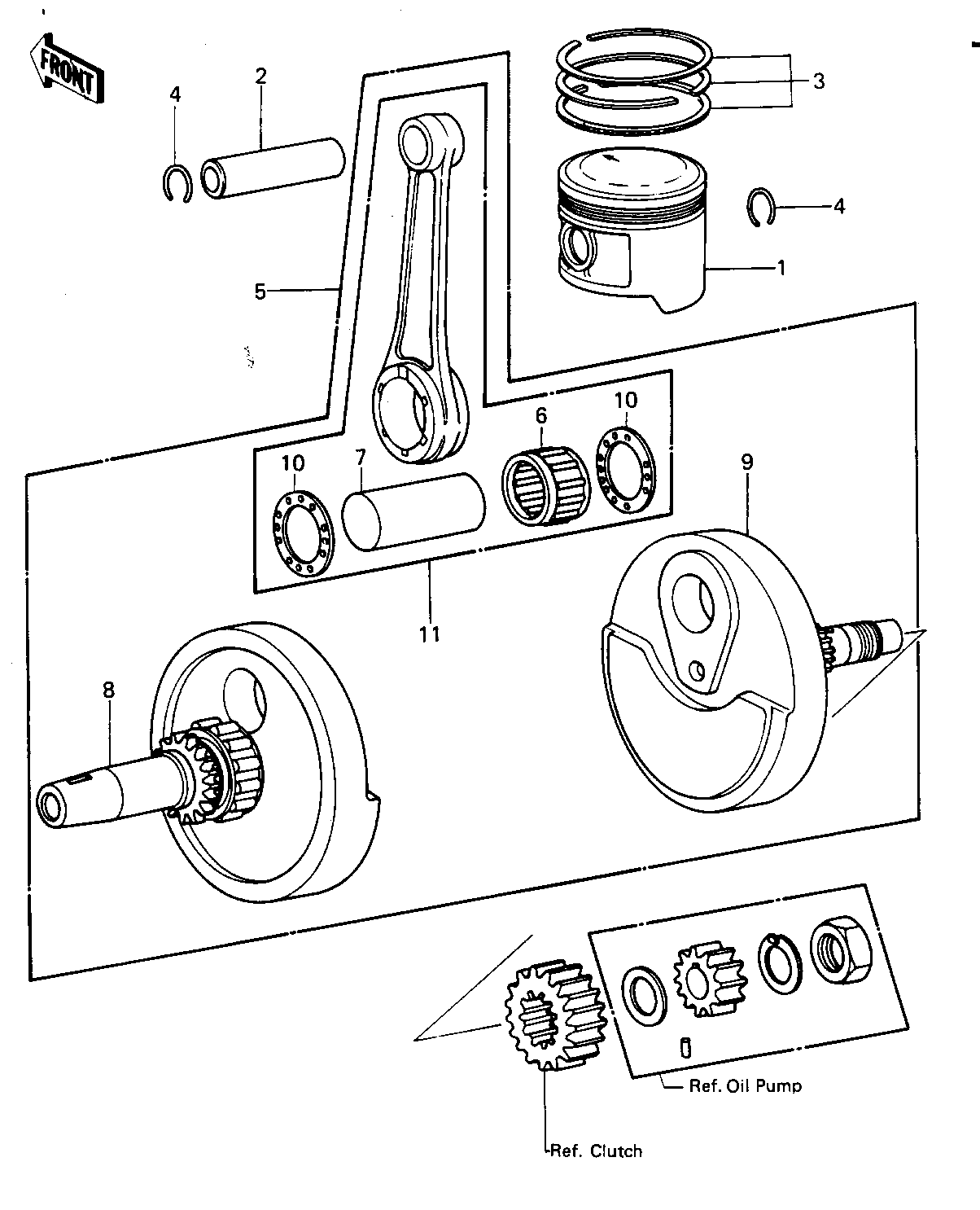

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON,S.T.D | 1 | 13001-1005 | 1 | ||
| PISTON,0.020 O/S | 1 | 13029-1003 | (1 | ||
| PISTON,0.040 O/S | 1 | 13027-1005 | (1 | ||
| PIN-PISTON | 2 | 13002-022 | 1 | ||
| RING SET,STD | 3 | 13008-5012 | 1 | ||
| RING SET,0.020"O/S | 3 | 13025-5007 | (1 | ||
| RING SET,0.040"O/S | 3 | 13024-5008 | (1 | ||
| CIRCLIP,PISTON PIN | 4 | 92036-021 | 2 | ||
| CRANK-CONROD ASSY | 5 | 13031-1001 | 1 | ||
| BRG,NEEDLE PK293921.4 | 6 | 13034-031 | 1 | ||
| PIN,CRANK | 7 | 13035-035 | 1 | ||
| CRANKSHAFT,L.H. | 8 | 13037-5002 | 1 | ||
| CRANKSHAFT,R.H. | 9 | 13037-1003 | 1 | ||
| SPACER,CONNECTING ROD | 10 | 92026-087 | 2 | ||
| CONNECTING ROD SET | 11 | 13044-5005 | 1 |
| PISTON,S.T.D | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,0.020 O/S | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| PISTON,0.040 O/S | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING SET,STD | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING SET,0.020"O/S | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| RING SET,0.040"O/S | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,PISTON PIN | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CRANK-CONROD ASSY | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRG,NEEDLE PK293921.4 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,CRANK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,L.H. | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,R.H. | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,CONNECTING ROD | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CONNECTING ROD SET | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
