Parts Diagrams |

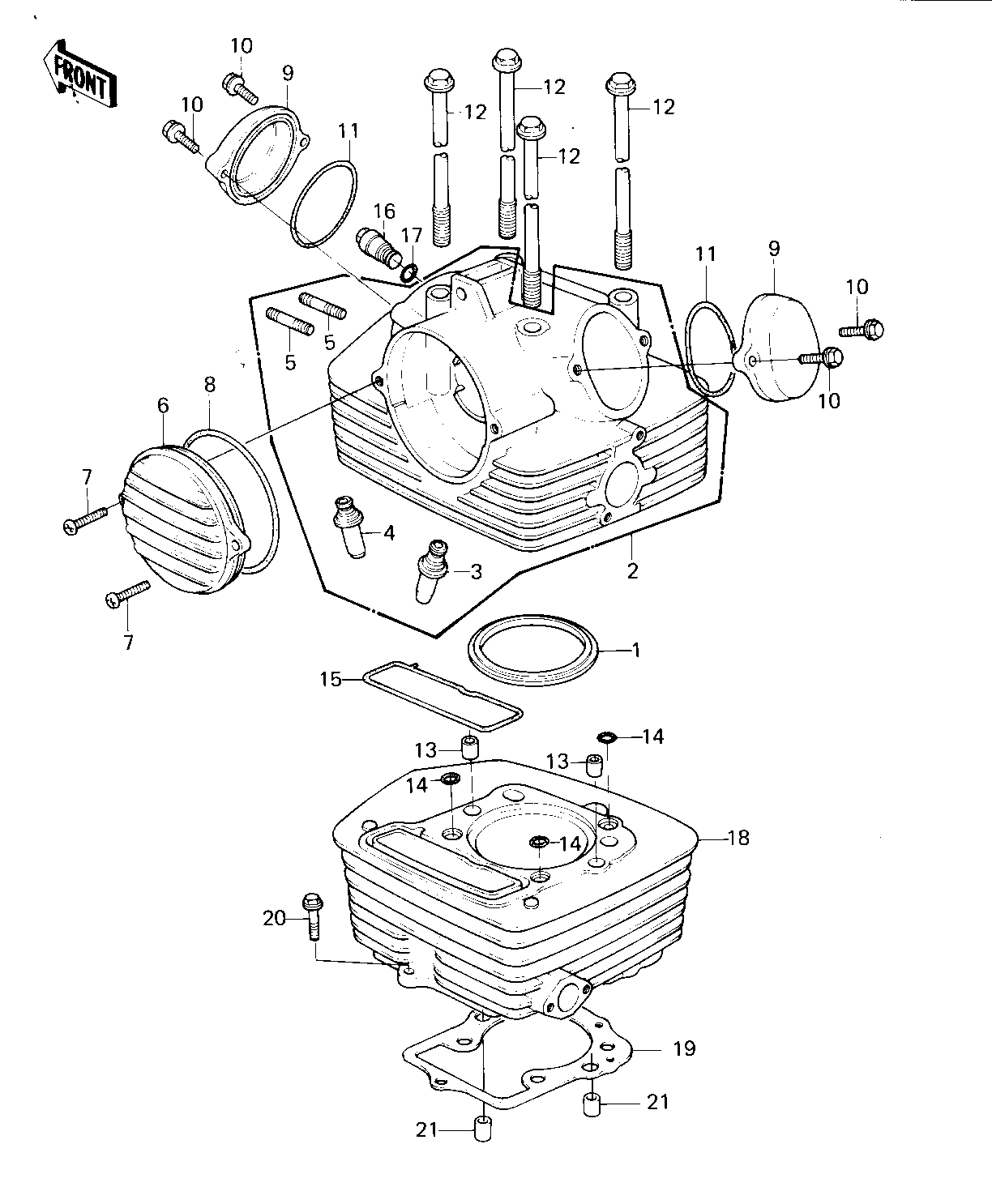

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYLINDER HEAD | 1 | 11004-1002 | 1 | ||
| HEAD ASSY,CYL,F.BLACK | 2 | 11002-5015 | 1 | ||
| GUIDE,INLET VALVE | 3 | 12013-003 | 1 | ||
| GUIDE,EXHAUST VALVE | 4 | 49002-1010 | 1 | ||
| STUD,6X27 | 5 | 92004-066 | 2 | ||
| COVER,CAM,FLAT BLACK | 6 | 14025-1103 | 2 | ||
| SCREW PAN HEAD 6X25 | 7 | 220B0625 | 2 | ||
| "O" RING,99M/M | 8 | 92055-107 | 1 | ||
| CAP,ROCKER,FLAT BLACK | 9 | 11012-1078 | 2 | ||
| BOLT,FLANGED,6X25 | 10 | 130G0625 | 4 | ||
| "0" RING,53.5MM | 11 | 92055-112 | 2 | ||
| BOLT,8X233 | 12 | 92003-220 | 4 | ||
| PIN,DOWEL,10X8.2X14 | 13 | 92043-1037 | 2 | ||
| RING-O,10MM | 14 | 92055-1149 | 3 | ||
| "0" RING | 15 | 92055-105 | 1 | ||
| PLUG,TACHOMETER GEAR | 16 | 92066-060 | 1 | ||
| RING-O,10MM | 17 | 92055-1149 | 1 | ||
| CYLINDER ASSY,F.BLACK | 18 | 11006-1002 | 1 | ||
| GASKET,CYLINDER BASE | 19 | 11009-043 | 1 | ||
| BOLT | 20 | 92003-202 | 1 | ||
| PIN,DOWEL,10X8.2X14 | 21 | 92043-1037 | 2 |
