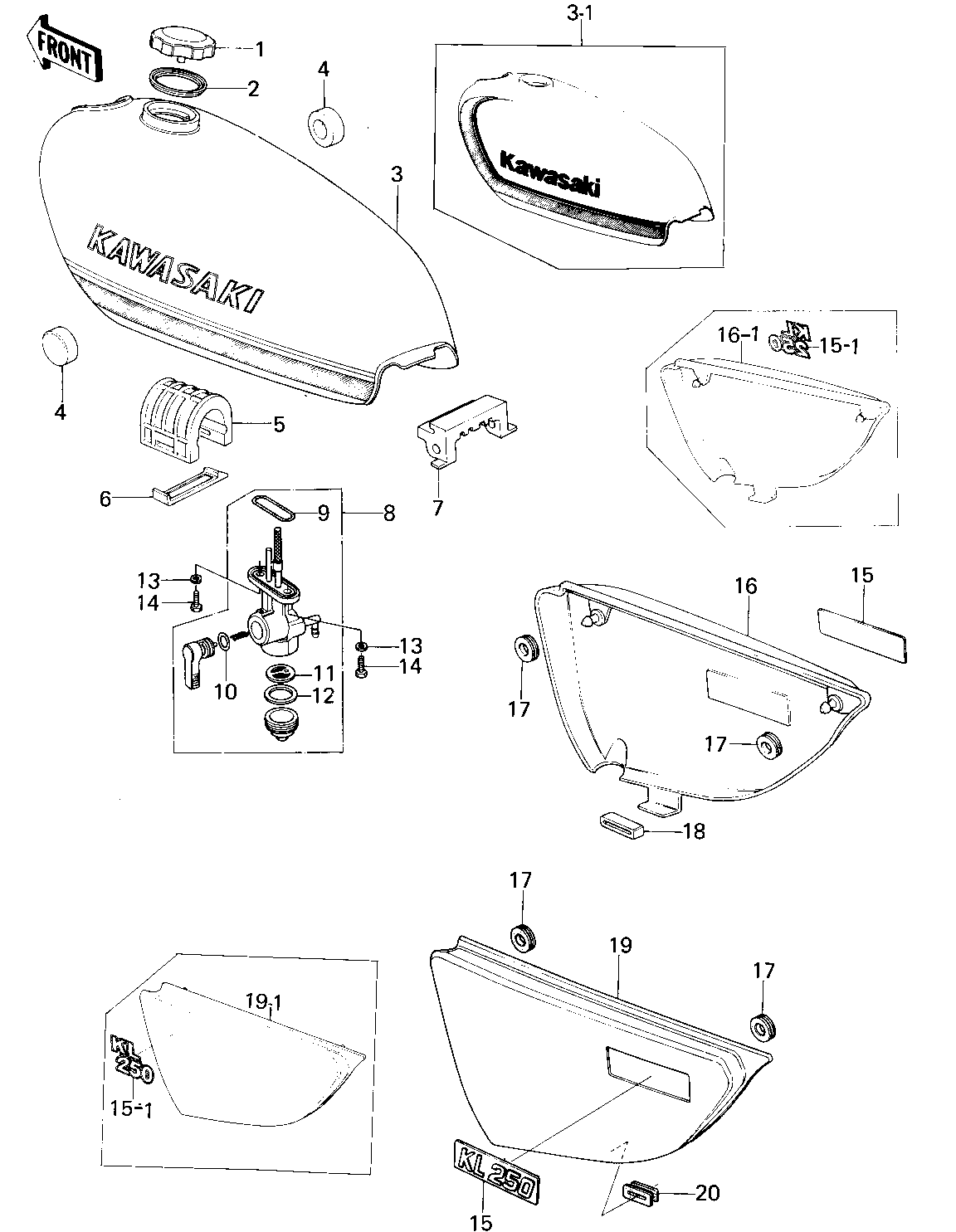

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FUEL TANK | 1 | 51048-1013 | 1 | ||
| GASKET,FUEL TANK CAP | 2 | 51059-011 | 1 | ||
| TANK-FUEL,FLAME RED | 3 | 51001-1002-7P | 1 | KL250-A1/A1A | |
| TANK-FUEL,MARINE BLUE | 3-1 | 51001-5015-B4 | 1 | KL250-A2 | |
| DAMPER RUBBER-FL TANK | 4 | 92075-101 | 2 | ||
| DAMPER RUBBER,FL TNK | 5 | 92075-215 | 1 | ||
| BAND,FUEL TANK | 6 | 92072-1013 | 1 | ||
| DAMPER,FUEL TANK,REAR | 7 | 92075-1001 | 1 | ||
| TAP ASSY,FUEL | 8 | 51023-1001 | 1 | ||
| "O" RING | 9 | 51039-003 | 1 | ||
| "0" RING, 10MM | 10 | 670B2010 | 1 | ||
| STRINER,FUEL TAP | 11 | 14043-1002 | 1 | ||
| GASKET,FUEL TAP CUP | 12 | 11009-1013 | 1 | ||
| WASHER-PLAIN | 13 | 92022-183 | 2 | ||
| BOLT-HEX HEAD,6X16 | 14 | 92001-114 | 2 | ||
| MARK,SIDE COVER | 15 | 56018-1013 | 2 | KL250-A1/A1A | |
| MARK,SIDE COVER | 15-1 | 56018-1033 | 2 | KL250-A2 | |
| COVER,SIDE,RH F.RED | 16 | 36001-1044-7P | 1 | KL250-A1/A1A | |
| COVER,SIDE,R.H.M.BLUE | 16-1 | 36001-1044-6N | 1 | KL250-A2 | |
| GROMMET | 17 | 92071-056 | 4 | ||
| DAMPER,SIDE COVER | 18 | 92075-1034 | 1 | ||
| COVER,SIDE,L.H,F.RED | 19 | 36001-1043-7P | 1 | KL250-A1/A1A | |
| COVER,SIDE,L.H.M.BLUE | 19-1 | 36001-1043-6N | 1 | KL250-A2 | |
| GROMMET,SIDE COVER | 20 | 92071-1004 | 1 |
