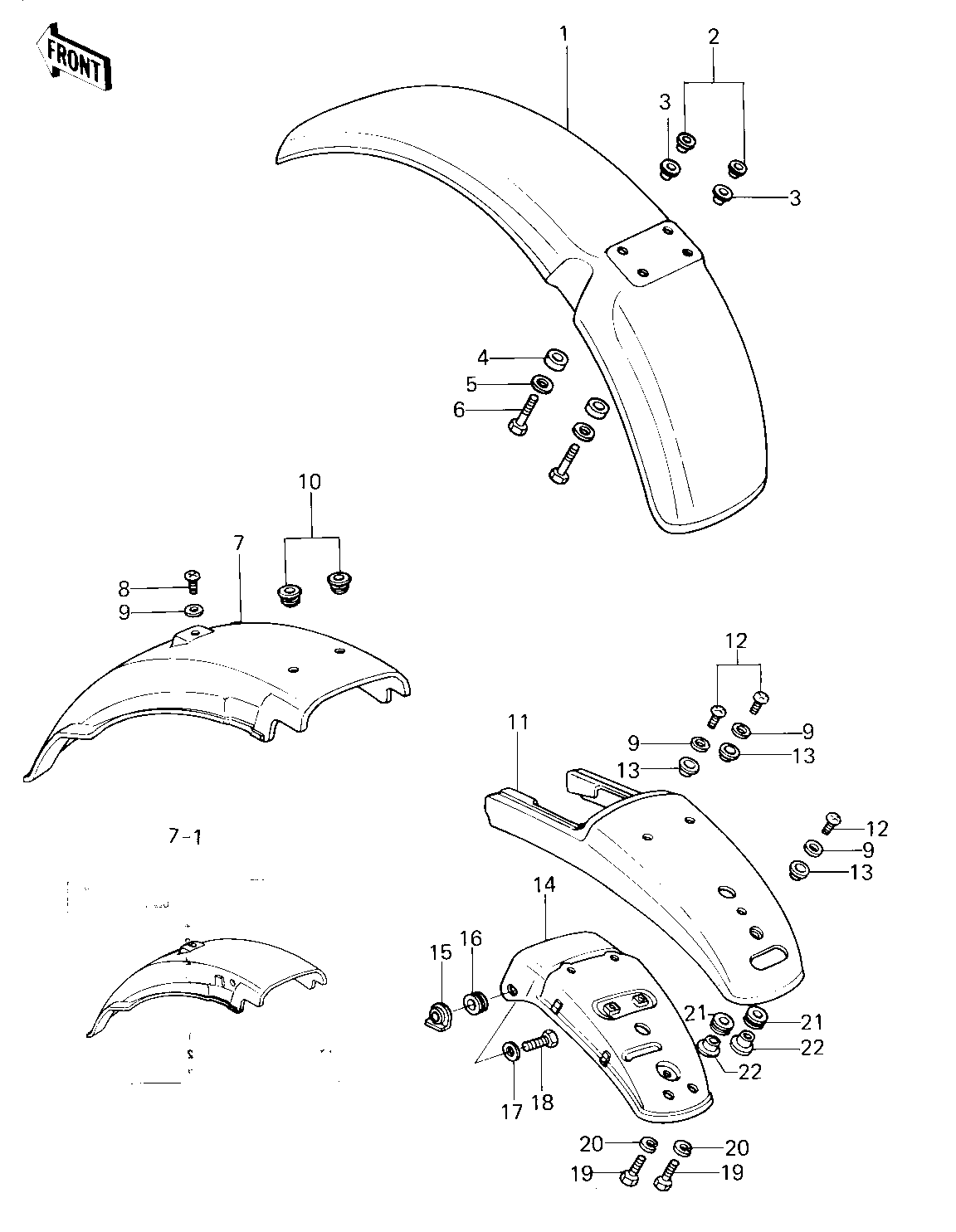

1978 KLR250 - FENDERS ('78-'79 KL250-A1/A1A/A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FR,FLAME RED | 1 | 35004-1002-6T | 1 | KL250-A1/A1A | |
| FENDER-FR,M.BLUE | 1 | 35004-1002-6N | 1 | KL250-A2 | |
| COLLAR | 2 | 92027-194 | 4 | ||
| DAMPER RUBBER | 3 | 92075-103 | 4 | ||
| DAMPER RUBBER,RR FEND | 4 | 92075-121 | 4 | ||
| WASHER,PLAIN,7MM | 5 | 92022-228 | 4 | ||
| BOLT 6X22 | 5 | 112B0622 | 4 | ||
| FENDER-RR | 7 | 35023-1002 | 1 | ||
| FENDER-RR | 7-1 | 35023-1012 | 1 | ||
| SCREW PAN HEAD 6X10 | 8 | 220B0610 | 1 | ||
| WASHER PLAIN 6MM | 9 | 410B0600 | 4 | ||
| DAMPER,REAR FENDER | 10 | 92075-1011 | 2 | ||
| FENDER-RR,F.RED | 11 | 35023-1003-6T | 1 | KL250-A1/A1A | |
| SCREW PAN HEAD 6X12 | 12 | 220B0612 | 3 | ||
| COLLAR,REAR FENDER | 13 | 92027-1018 | 3 | ||
| REINFORCE,REAR FENDER | 14 | 35034-1001 | 1 | ||
| NUT,8M/M | 15 | 92015-1004 | 2 | ||
| DAMPER,REAR FENDER | 16 | 92075-190 | 2 | ||
| WASHER PLAIN 8MM | 17 | 410B0800 | 2 | ||
| BOLT-SMALL-UPSET,8X18 | 18 | 115G0818 | 2 | ||
| BOLT-UPSET | 19 | 112G0618 | 2 | ||
| WASHER SPRING 6MM | 20 | 461F0600 | 2 | ||
| DAMPER RUBBER | 21 | 92075-061 | 2 | ||
| COLLAR | 22 | 92027-153 | 2 |
| FENDER-FR,FLAME RED | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KL250-A1/A1A |
| FENDER-FR,M.BLUE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KL250-A2 |
| COLLAR | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FEND | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,7MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X22 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FENDER-RR | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-RR | |
| REF # | 7-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X10 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,REAR FENDER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FENDER-RR,F.RED | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KL250-A1/A1A |
| SCREW PAN HEAD 6X12 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR FENDER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| REINFORCE,REAR FENDER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,REAR FENDER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X18 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
