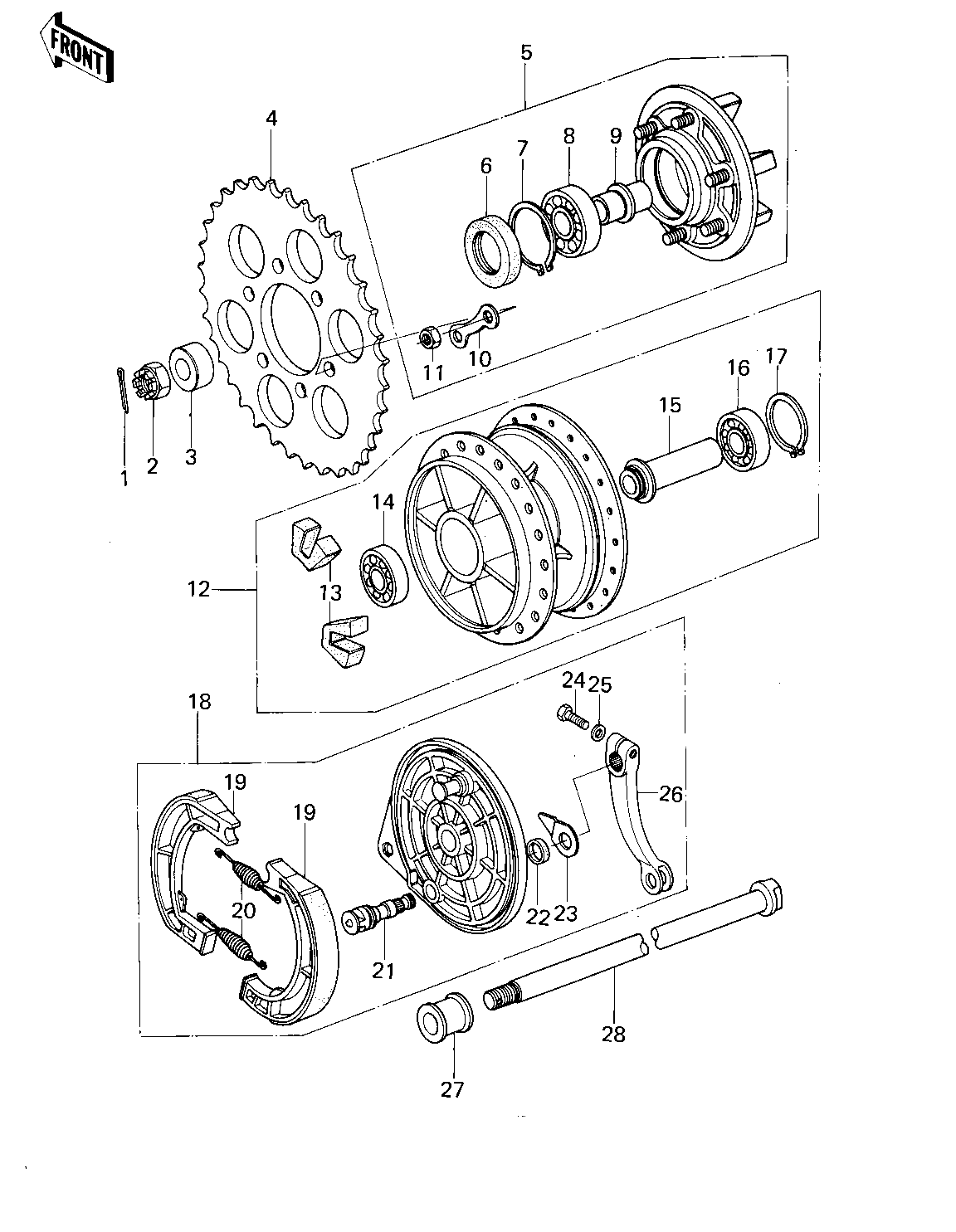

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-COTTER,4.0X35 | 1 | 550D4035 | 1 | ||
| NUT CASTLE,16MM | 2 | 92015-055 | 1 | ||
| COLLAR,REAR AXLE,L.H. | 3 | 92027-1010 | 1 | ||
| REAR SPROCKET,39T | 4 | 42041-163 | 1 | ||
| COUPLING ASSY,REAR HB | 5 | 42008-030 | 1 | ||
| OIL SEAL WTC35527 | 6 | 92052-006 | 1 | ||
| RING,SNAP,56.2M/M | 7 | 92033-1043 | 1 | ||
| BEARING BALL #6205 | 8 | 601B6205 | 1 | ||
| SLEEVE,COUPLING | 9 | 42036-023 | 1 | ||
| WASHER LOCK | 10 | 92088-007 | 3 | ||
| NUT 10MM | 11 | 42045-005 | 6 | ||
| DRUM ASSY,REAR BRAKE | 12 | 42005-052 | 1 | BUFF FINISH | |
| DAMPER,REAR HUB SHOCK | 13 | 42014-024 | 6 | ||
| BEARING BALL #6303 | 14 | 601B6303 | 1 | ||
| COLLAR,REAR HUB BEARG | 15 | 42010-038 | 1 | 17.2 X 25 X 64.5 | |
| BEARING-BALL | 16 | 601B6303U | 1 | ||
| CIRCLIP,47M/M | 17 | 92033-1042 | 1 | ||
| PANEL-ASY,RR BRK | 18 | 41035-1004 | 1 | BUFF FINISH | |
| SHOE,BRAKE | 19 | 42019-011 | 2 | ||
| SPRING-BRAKE SHOE | 20 | 42020-004 | 2 | ||
| CAM SHAFT,REAR BRAKE | 21 | 41050-1003 | 1 | ||
| DUST SHIELD BRAKE CAM | 22 | 41051-001 | 1 | ||
| INDICATOR,FR BRK SHOE | 23 | 41085-017 | 1 | ||
| BOLT-UPSET | 24 | 112G0625 | 1 | ||
| WASHER PLAIN 6MM | 25 | 410B0600 | 1 | ||
| LEVER,REAR BRAKE CAM | 26 | 42029-040 | 1 | ||
| COLLAR,REAR AXLE,R.H. | 27 | 92027-1009 | 1 | ||
| AXLE,REAR | 28 | 41068-1003 | 1 |
