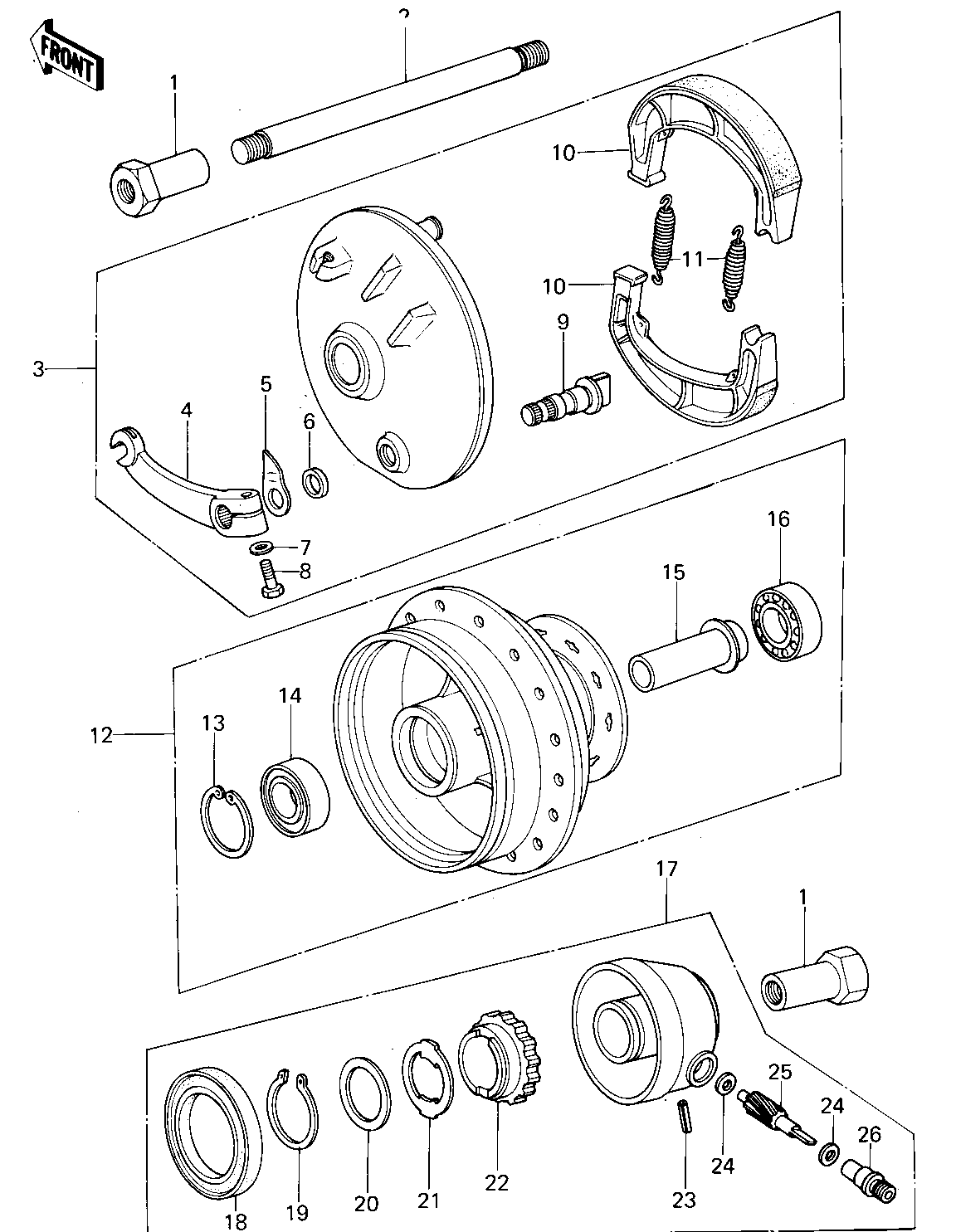

1978 KLR250 - FRONT HUB/BRAKE ('78-'79 KL250-A1/A1A/A2
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COLLAR,FRONT AXLE | 1 | 41069-031 | 2 | ||
| AXLE,FRONT | 2 | 41068-048 | 1 | L=216 M/M | |
| PANEL-ASY,FR BRK | 3 | 41035-082 | 1 | BUFF/FINISH | |
| LEVER,BRAKE CAM | 4 | 41053-028 | 1 | ||
| INDICATOR,FR BRK SHOE | 5 | 41085-017 | 1 | ||
| DUST SHIELD BRAKE CAM | 6 | 41051-001 | 1 | ||
| WASHER PLAIN 6MM | 7 | 410B0600 | 1 | ||
| BOLT-UPSET | 8 | 112G0625 | 1 | ||
| CAM SHAFT,BRAKE | 9 | 42026-027 | 1 | ||
| SHOE-BRAKE | 10 | 41048-1068 | 2 | ||
| SPRING-BRAKE SHOE | 11 | 42020-004 | 2 | ||
| DRUM-ASSY,FR BRK | 12 | 41034-052 | 1 | BUFF FINISH | |
| CIRCLIP,42MM | 13 | 92033-1041 | 1 | ||
| BEARING,FRONT DRUM | 14 | 92045-033 | 1 | ||
| COLLAR,FRONT HUB BRG | 15 | 41039-037 | 1 | 15.2 X 22 X 51 | |
| BEARING BALL #6302 | 16 | 601B6302 | 1 | ||
| GEAR BOX ASSY | 17 | 41078-011 | 1 | ||
| OIL SEAL,#50659 | 18 | 654A506509 | 1 | ||
| CIRCLIP 24MM | 19 | 480J2400 | 1 | ||
| WASHER,THRUST | 20 | 41065-005 | 1 | ||
| RECEIVER,SPEEDOMETER | 21 | 41064-015 | 1 | ||
| GEAR,SPEEDOMETER | 22 | 41059-027 | 1 | 25T | |
| PIN,SPRING | 23 | 41082-001 | 1 | ||
| WASHER THRST SPD PINI | 24 | 41063-001 | 2 | ||
| PINION,SPEEDOMETER | 25 | 41060-015 | 1 | 8T | |
| BUSH,SPEEDMETER CABLE | 26 | 41062-005 | 1 |
