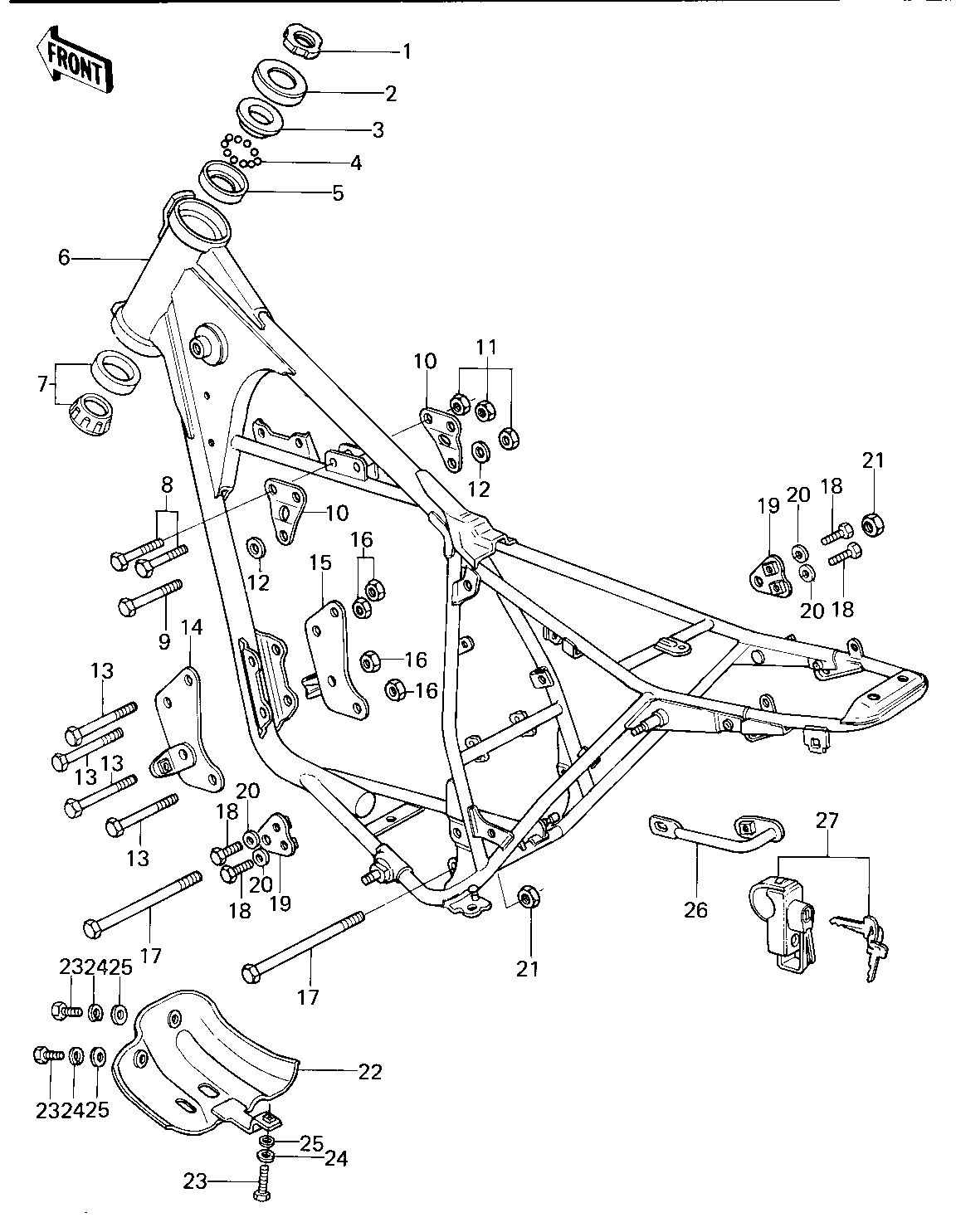

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT,STEERING STEM | 1 | 92090-022 | 1 | ||
| CAP,STEERING STEM | 2 | 46098-018 | 1 | ||
| CONE,STEERING STEM | 3 | 92047-020 | 1 | ||
| BALL STEEL 1/4' | 4 | 600A0800 | 17 | ||
| RACE,STEERING STEM | 5 | 92048-010 | 1 | ||
| FRAME | 6 | 32002-1005 | 1 | ||
| BEARING,STEERING STEM | 7 | 92047-017 | 1 | ||
| BOLT,HEX HEAD,8X45 | 8 | 92001-1219 | 2 | ||
| BOLT,HEX HEAD,8X65 | 9 | 110B0865 | 1 | ||
| BRACKET,ENGINE,HEAD | 10 | 32029-1007 | 2 | ||
| NUT,LOCK,8MM | 11 | 92017-013 | 3 | ||
| WASHER PLAIN 8MM | 12 | 410B0800 | 2 | ||
| BOLT FLANGED,8X70 | 13 | 92001-1583 | 4 | ||
| BRACKET,ENG,FR,L.H | 14 | 32029-1009 | 1 | ||
| BRACKET,ENG.FR.R.H | 15 | 32029-1006 | 1 | ||
| NUT,LOCK,8MM | 16 | 92017-013 | 4 | ||
| BOLT, FLANGED, 10X110 | 17 | 92001-1602 | 2 | ||
| BOLT-SMALL-UPSET,8X18 | 18 | 115G0818 | 4 | ||
| BRACKET,ENGINE | 19 | 32029-1008 | 2 | ||
| WASHER PLAIN 8MM | 20 | 410B0800 | 4 | ||
| NUT,LOCK,10MM | 21 | 92019-021 | 2 | ||
| GUARD,ENGINE | 22 | 55020-1004 | 1 | ||
| BOLT-UPSET 6X14 | 23 | 112B0614 | 3 | ||
| WASHER SPRING 6MM | 24 | 461F0600 | 3 | ||
| WASHER 6.5X20X1.6T | 25 | 92022-125 | 3 | ||
| GRIP,FRAME,L.H. | 26 | 32109-1001 | 1 | ||
| LOCK ASSY,HELMET | 27 | 27016-5022 | 1 |
