Parts Diagrams |

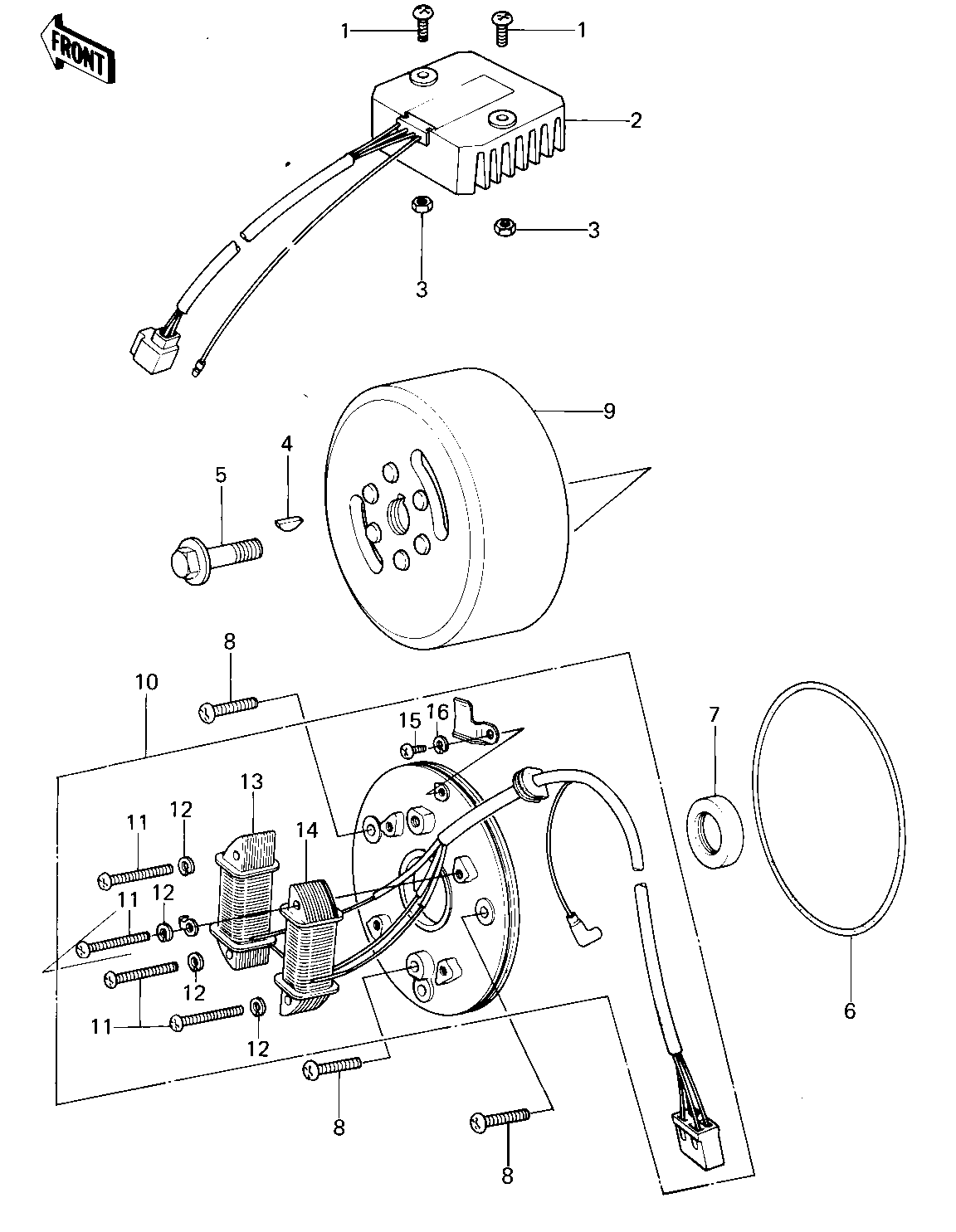

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW PAN HEAD 6X14 | 1 | 220B0614 | 2 | ||
| REGURATOR,VOLTAGE | 2 | 21066-1002 | 1 | ||
| NUT,6M/M | 3 | 311G0600 | 2 | ||
| WOODRUFF KEY | 4 | 92038-001 | 1 | ||
| BOLT,10X40 | 5 | 92001-1201 | 1 | ||
| "O" RING,MAGNETO BASE | 6 | 92055-1006 | 1 | ||
| OIL SEAL,S-27408-LHS | 7 | 92049-1004 | 1 | ||
| SCREW PAN HEAD 6X25 | 8 | 220B0625 | 3 | ||
| FLYWHEEL,MAGNETO | 9 | 21007-1002 | 1 | ||
| STATOR ASSY | 10 | 21003-1003 | 1 | ||
| SCREW-PAN-CROS | 11 | 220B0535 | 4 | ||
| WASHER SPRING 5MM | 12 | 461F0500 | 4 | ||
| COIL,EXCITING | 13 | 21049-1003 | 1 | ||
| COIL,LIGHTING | 14 | 21047-1006 | 1 | ||
| SCREW PAN HEAD 4X6 | 15 | 220B0406 | 1 | ||
| WASHER SPRING 4MM | 16 | 461F0400 | 1 |
| SCREW PAN HEAD 6X14 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| REGURATOR,VOLTAGE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6M/M | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X40 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,MAGNETO BASE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,S-27408-LHS | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X25 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| FLYWHEEL,MAGNETO | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STATOR ASSY | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COIL,EXCITING | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL,LIGHTING | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X6 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 4MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
